Make sure this part fits

GM 97238997
Extension Seal

2004-2012 GM

Customer Questions & Expert Answers (16)

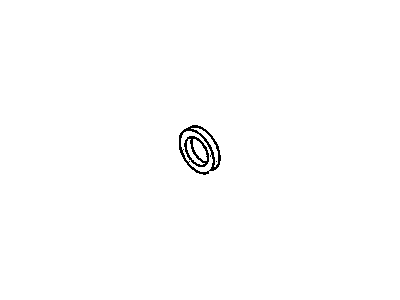

GM 97238997 Extension Seal
GM 97238997 Extension Seal
GM 97238997 Extension Seal
  • Part Description
    Seal, Transfer Case Rear Output Shaft; Transfer Case Gasket
  • Position
    Rear
  • Manufacturer
    General Motors
Make sure this part fits
$18.06 MSRP: $29.75
You Save: $11.69 (40%)
Ships in 1-3 Business Days
1
ADD TO CART

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2012 Chevrolet ColoradoBase, LS, LT, Sport, Sport LS, WT, Z71, Z71 LS, Z85, Z85 LS4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
    2004-2012 GMC CanyonSL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Hey, is 97238997 a good match for my vehicle? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 97238997 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the rear output transfer case seal on Chevrolet Colorado? Posted by Customer
    A:
    Begin the repair of the rear output shaft seal by taking away the rear propeller shaft first. Great care needs to be taken during the Transfer Case seal removal process. A flat-bladed screwdriver and a hammer should be used to extract the rear output shaft seal from the Transfer Case. The Transfer Case installation of the new rear output shaft seal requires use of j 35582 (Oil Pump Seal Installer) combined with a hammer to insert the seal correctly. The rear propeller shaft needs to be put back in place before checking that the Transfer Case fluid measures correctly.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to Change the Transfer Case Seal on a Chevrolet Colorado? Posted by Customer
    A:
    Before changing the rear output shaft seal, the rear propeller shaft must be removed. Warning is needed for the removal of Transfer Case seal. Then, you should use a flat-bladed screwdriver and a hammer to take out the rear output shaft seal in the Transfer Case. For installation use the j 35582 (Oil Pump Seal Installer) and a hammer to install the new rear output shaft seal to the Transfer Case. After installation, reinstall the rear propeller shaft and check the Transfer Case fluid level.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the input shaft transfer case seal on GMC Canyon? Posted by Customer
    A:
    The first step to replace the input shaft seal requires complete removal of the Transfer Case assembly. The assembly fixture (J 45759) requires installation onto the Transfer Case through four appropriate bolts. Secure the input component within the holding fixture (J 3289-20) by integrating the assembly fixture (J 45759) into the holding fixture workbench using the pivot pin. There exists no protective shoulder for the seal inside the Transfer Case so employ the seal remover tool (J 45278) to pull out the seal properly. The input shaft seal removal from the Transfer Case requires the slide hammer with bearing adapter (J 23907) together with the seal remover (J 45278) according to service procedure. The input seal installer (J 45934) with a hammer assists installation of the new input shaft seal inside the Transfer Case until reaching its accurate depth positioning. Curve the assembly fixture (J 45759) from the Transfer Case before reinstalling the complete Transfer Case assembly.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the front output transfer case seal on GMC Canyon? Posted by Customer
    A:
    You must drain the transfer case fluid before starting the replacement of the front output shaft seal. Bend the staked regions on the yoke flange nut out completely before removing the front propeller shaft. A suitable punch bends the stakes out on the yoke flange nut before you use the flange and pulley holding tool (J 8614-01) to support the flange while you loosen the yoke flange nut. Start by removing the yoke flange nut, subsequent o-ring seal and front output yoke flange structure while discarding both components. A flat-bladed screwdriver should be used to slightly tap the edge of the front output shaft seal until it detaches from the transfer case. The front output shaft seal installer (J 37212) combined with a hammer enables correct installation of the new front output shaft seal within the transfer case. Start by placing the front output shaft under the yoke flange. Next, apply transfer case fluid to the new yoke flange o-ring seal followed by both components installation with the new nut. Use the flange and pulley holding tool (J 8614-01) to secure the yoke flange before torquing the yoke flange nut to 137 n.m (101 lb ft). You should stake the yoke flange nut through two points using a suitable punch for the installation of the front propeller shaft. Fill transfer case fluid as the next step before ending the process.
    Posted by ChevyPartsGiant Specialist
    Q:
    What tool is used to secure the transfer case during the process for the 2004 Chevrolet Colorado? Posted by Customer
    A:
    The Assembly Fixture (J 45759) is installed to the transfer case using four suitable bolts.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    Q:
    What tool is used for installing the new front output shaft seal for the 2006 Chevrolet Colorado? Posted by Customer
    A:
    The Front Output Shaft Seal Installer (J 37212) and a hammer.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    Q:
    What tool is installed to the transfer case for the 2010 Chevrolet Colorado? Posted by Customer
    A:
    Install the J 45759 (Assembly Fixture) to the transfer case using four suitable bolts.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    Q:
    What components should be removed and discarded during the process for the 2007 Chevrolet Colorado? Posted by Customer
    A:
    The yoke flange nut, O-ring seal, and front output yoke flange.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    Q:
    What tool is needed for the installation of the new rear output shaft seal for the 2005 Chevrolet Colorado? Posted by Customer
    A:
    The Oil Pump Seal Installer (J 35582) along with a hammer.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    Q:
    How should the seal be removed for the 2009 Chevrolet Colorado? Posted by Customer
    A:
    Turn and hold the J 45278 (Seal Remover) under the seal for removal.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    Q:
    What components should be removed after loosening the yoke flange nut for the 2009 GMC Canyon? Posted by Customer
    A:
    Remove the yoke flange nut, O-ring seal, and front output yoke flange, discarding the nut and O-ring seal.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    Q:
    How should the new yoke flange O-ring seal be prepared before installation for the 2010 GMC Canyon? Posted by Customer
    A:
    Lightly lubricate it with transfer case fluid.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    Q:
    What tool is used to install the new input shaft seal for the 2007 GMC Canyon? Posted by Customer
    A:
    The Input Seal Installer (J 45934) and a hammer.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    Q:
    What is the first step to replace the rear transfer case output shaft seal for the 2004 GMC Canyon? Posted by Customer
    A:
    Remove the rear propeller shaft.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    Q:
    What should be done after installing the new rear output shaft seal for the 2008 GMC Canyon? Posted by Customer
    A:
    Reinstall the rear propeller shaft and inspect the transfer case fluid level.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transfer Case Seal
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Extension Seal 97238997 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 97238997 Extension Seal is available in the market under the name GM Transfer Case Seal. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 97238997 Extension Seal fits certain Chevrolet Colorado models, as well as GMC Canyon models.
The original GM component designated by manufacturer part number 97238997 maintains top performance when functioning as the Seal, Transfer Case Rear Output Shaft; Transfer Case Gasket unit at its Rear. The component 97238997 is constructed from durable material and its dimensions span 5.6 x 4.1 x 0.9 inches while weighing 0.40 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Seal, Transfer Case. The part 97238997 has available replacement options. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
If you want to save money in the long run on maintenance and repairs, you should choose OEM products because they're of the top level of durability. Are you on the quest of finding GM parts, our site is worth a visit. We stock an endless selection of high-quality GM components including things like ignition coils all the way through to fan shrouds and all at prices that can not be matched. You have nothing to worry about because all our OEM parts are covered with a manufacturer warranty, which guarantees superior quality and value.
