Make sure this part fits

GM 25767350
Control Sensor

2006-2011 GM

Customer Questions & Expert Answers (12)
GM 25767350 Control Sensor
GM 25767350 Control Sensor
  • Part Description

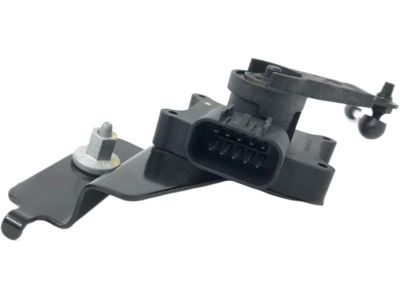

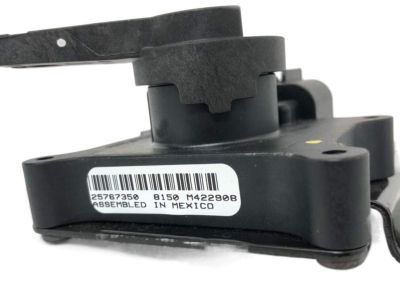

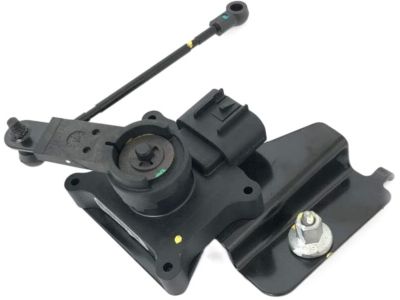

    Sensor Assembly-Auto Level Control
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers
  • Product Specifications

    BrandGenuine GM
    Manufacturer Part Number25767350
    Part DescriptionSensor Assembly-Auto Level Control
    Other NamesFront Sensor; Sensor, Air Suspension Leveling Or Level Control
    Item Dimensions8.8 x 5.0 x 5.0 inches
    Item Weight4.30 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerGeneral Motors
    SKU25767350
    WarrantyThis genuine GM part is guaranteed by GM's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65
  • Vehicle Fitment

    Year Make Model Trim Engine
    2006-2010 Buick LucerneCX, CXL, CXL Special Edition, CXS, Super6 Cyl 3.8 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS, 8 Cyl 4.6 L GAS
    2006-2011 Cadillac DTSBase, Livery, Luxury, Platinum, Premium8 Cyl 4.6 L GAS
  • Customer Questions & Expert Answers

    Q:
    Can you help me check if this 25767350 is the right part for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 25767350 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Rear Ride Height Sensor on Buick Lucerne? Posted by Customer
    A:
    The first step to replace the Electronic Suspension Rear Position Sensor consists of lifting the vehicle while taking off the wheel. The height sensor electrical connector and sensor link from the ball stud need to be disconnected before the sensor mounting nut can be loosened. You can disengage the anti-rotation tab before pulling the sensor downwards to take it off from the vehicle. The installation process involves putting the stud head into the keyhole then pushing the sensor upward until it locks into the lower hole by the anti-rotation tab. Proceed by connecting the sensor link into position on the ball stud and tightening the sensor mounting nut to 9 Nm (80 lb in). Afterward connect the height sensor electrical connector. To finish the procedure replace the wheel then lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the final step after completing the installation for the 2006 Buick Lucerne? Posted by Customer
    A:
    Install the wheel and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What is the torque specification for tightening the sensor mounting nut for the 2008 Buick Lucerne? Posted by Customer
    A:
    Tighten the sensor mounting nut to 9 N.m (80 lb in).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    How do you secure the sensor during installation for the 2010 Buick Lucerne? Posted by Customer
    A:
    Slide the sensor upward until the anti-rotation tab engages in the lower hole.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What is the torque specification for tightening the sensor mounting nut for the 2007 Buick Lucerne? Posted by Customer
    A:
    Tighten to 9 N.m (80 lb in).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What should be disconnected after removing the wheel for the 2009 Cadillac DTS? Posted by Customer
    A:
    Disconnect the height sensor connector and the sensor link from the ball stud.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What should be disconnected after removing the wheel for the 2006 Cadillac DTS? Posted by Customer
    A:
    Disconnect the height sensor connector and the sensor link from the ball stud.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What needs to be loosened during the replacement process for the 2010 Cadillac DTS? Posted by Customer
    A:
    Loosen the sensor mounting nut.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What should be disconnected after removing the wheel for the 2008 Cadillac DTS? Posted by Customer
    A:
    Disconnect the height sensor connector and the sensor link from the ball stud.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What should be disconnected after removing the wheel for the 2007 Cadillac DTS? Posted by Customer
    A:
    Disconnect the height sensor connector and the sensor link from the ball stud.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What is the final step after reconnecting everything for the 2008 Cadillac DTS? Posted by Customer
    A:
    Reinstall the wheel and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
