How to replace the rear upper control arm on 2004 Chevrolet Corvette?

To remove the rear upper Control Arm, suspend the vehicle and take off the tire and wheel assembly. Remove the Wheel Speed Sensor and, if applicable, the real-time damping (RTD) position sensor link. With the help of j 42188 ball joint separator (J 42188), you should be able to separate the suspension knuckle from the upper Control Arm. Jack stands will be employed to support the lower Control Arm, along with loosening the upper ball joint stud nut without it being taken off, followed by the removal of j 42188 and the ball joint stud nut from the ball joint stud. Then, you remove the retaining bolts for the upper Control Arm where it attaches to the frame and take the entire upper Control Arm out of the vehicle. For installation, install the upper Control Arm back into the vehicle and attach upper Control Arm mounting bolts to the frame, which have to be tightened to 110 nm (81 ft. Lbs.). Install suspension knock lower ball joint stud into the upper Control Arm by using allen wrench, if needed, to prevent the ball joint stud nut from spinning during tightening. When tightening the suspension knuckle ball joint stud nut, it should be tightened to 20 nm (15 ft. Lbs) to seat the ball joint stud nut, and then it should be rotated another 250 degrees and ensure at least a minimum final torque of 55 nm (41 ft. Lbs.). Untermine the connector on the Wheel Speed Sensor electrical connector, install the shock absorber solenoid electrical connector if applicable, real-time damping position sensor link if applicable. Lastly, remove jack stand from the lower Control Arm, re-install the tire and wheel assembly, put the car back down, and conduct a rear wheel alignment.

OEM 2004 Chevrolet Corvette Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Control Arms found

View related parts

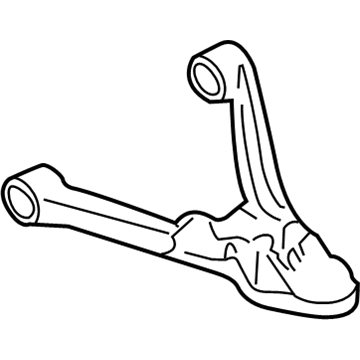

2004 Chevrolet Corvette Control Arm, Rear Passenger Side
Part Number: 10233636
$397.45 MSRP: $625.37
You Save: $227.92 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Lower Control Arm
- Position: Rear Passenger Side
- Item Weight: 11.10 Pounds
- Item Dimensions: 19.1 x 17.7 x 3.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10233636
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts
2004 Chevrolet Corvette Control Arm, Rear Driver Side
Part Number: 10233635
$397.45 MSRP: $625.37
You Save: $227.92 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Lower Control Arm
- Position: Rear Driver Side
- Item Weight: 11.60 Pounds
- Item Dimensions: 19.1 x 18.0 x 3.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10233635
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts

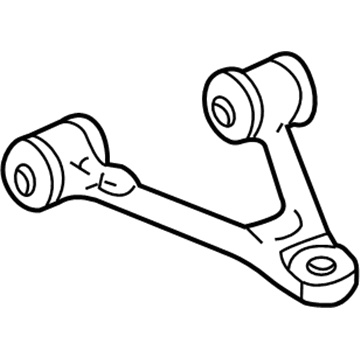

2004 Chevrolet Corvette Control Arm, Rear Passenger Side
Part Number: 10233621
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Upper Control Arm
- Position: Rear Passenger Side
- Item Weight: 3.60 Pounds
- Item Dimensions: 13.1 x 11.6 x 2.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10233621
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts
2004 Chevrolet Corvette Upper Control Arm, Passenger Side
Part Number: 10356438
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control; Suspension Control Arm; Control Arm
- Position: Passenger Side
- Replaces: 10233617, 10333409
- Item Weight: 3.70 Pounds
- Item Dimensions: 15.9 x 11.2 x 1.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10356438
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts
2004 Chevrolet Corvette Upper Control Arm, Driver Side
Part Number: 10356436
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control; Suspension Control Arm; Control Arm
- Position: Driver Side
- Replaces: 10233616, 10333408
- Item Weight: 3.10 Pounds
- Item Dimensions: 15.8 x 11.0 x 1.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10356436
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts
2004 Chevrolet Corvette Lower Control Arm, Passenger Side
Part Number: 10326694
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control; Control Arm
- Position: Passenger Side
- Replaces: 10233630, 10271533
- Item Weight: 9.40 Pounds
- Item Dimensions: 17.9 x 16.9 x 3.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10326694
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts
2004 Chevrolet Corvette Lower Control Arm, Driver Side
Part Number: 10326693
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control; Control Arm
- Position: Driver Side
- Replaces: 10271532, 10233629
- Item Weight: 9.00 Pounds
- Item Dimensions: 17.9 x 16.7 x 3.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10326693
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts
2004 Chevrolet Corvette Control Arm, Rear Driver Side
Part Number: 10233620
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Upper Control Arm
- Position: Rear Driver Side
- Item Weight: 3.70 Pounds
- Item Dimensions: 12.4 x 12.0 x 6.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10233620
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS

2004 Chevrolet Corvette Control Arm

With a comprehensive array of OEM 2004 Chevrolet Corvette Control Arm, from fuel pumps to door handles, our website is a one-stop-shop for your needs. All our genuine 2004 Chevrolet Corvette Control Arm are backed by the manufacturer's warranty and are offered at competitive prices in the market. Rest assured, you can shop with complete confidence.

2004 Chevrolet Corvette Control Arm Parts Questions & Experts Answers

Q: How to replace the rear upper control arm on 2004 Chevrolet Corvette?
A: To remove the rear upper Control Arm, suspend the vehicle and take off the tire and wheel assembly. Remove the Wheel Speed Sensor and, if applicable, the real-time damping (RTD) position sensor link. With the help of j 42188 ball joint separator (J 42188), you should be able to separate the suspension knuckle from the upper Control Arm. Jack stands will be employed to support the lower Control Arm, along with loosening the upper ball joint stud nut without it being taken off, followed by the removal of j 42188 and the ball joint stud nut from the ball joint stud. Then, you remove the retaining bolts for the upper Control Arm where it attaches to the frame and take the entire upper Control Arm out of the vehicle. For installation, install the upper Control Arm back into the vehicle and attach upper Control Arm mounting bolts to the frame, which have to be tightened to 110 nm (81 ft. Lbs.). Install suspension knock lower ball joint stud into the upper Control Arm by using allen wrench, if needed, to prevent the ball joint stud nut from spinning during tightening. When tightening the suspension knuckle ball joint stud nut, it should be tightened to 20 nm (15 ft. Lbs) to seat the ball joint stud nut, and then it should be rotated another 250 degrees and ensure at least a minimum final torque of 55 nm (41 ft. Lbs.). Untermine the connector on the Wheel Speed Sensor electrical connector, install the shock absorber solenoid electrical connector if applicable, real-time damping position sensor link if applicable. Lastly, remove jack stand from the lower Control Arm, re-install the tire and wheel assembly, put the car back down, and conduct a rear wheel alignment.
