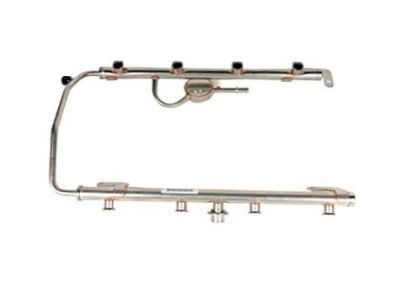

OEM 2005 Cadillac STS Fuel Rail

2005 Cadillac STS Fuel Rail Parts Questions & Experts Answers

• Q: How to replace the fuel injectors and fuel rail on 2005 Cadillac STS?

  A: The replacement process of fuel injectors and Fuel Rail requires the elimination of fuel system pressure first. Before removal of the Fuel Rail assembly users must support the components to prevent damage and protect injector terminals along with spray tips. Fittings should receive caps while holes need to be plugged to prevent external contaminants from entering. Use gm x-30a spray cleaner for the Fuel Rail assembly after removing its cross vehicle brace. Do not submerge the parts in liquid cleaning solution. The fuel feed hose-pipe needs removal from the Fuel Rail while pcv dirty air hose and evap quick connect fitting require disconnecting procedures. Open the retainers (1 and 2) located at the right side rear of the engine and front of the dash before you set the lines to the side. The Fuel Rail assembly requires removal after the withdrawal of the Fuel Injector wiring harness connectors from each Fuel Injector and subsequent removal of the sight shield bracket and attaching studs. First remove the injector lower o-ring seals from each component before removing its retainers to detach the fuel injectors from the Fuel Rail. Discard all o-ring seals. Clean engine oil lubricates new Fuel Injector o-ring seals which should be installed after plugging the Fuel Rail inlet and outlet ports to prevent contamination during the installation process. You need to install new retainer clips which will attach the fuel injectors to the Fuel Rail with proper alignment to the crankshaft centerline and ensure the electrical connectors face perpendicular to the center. Begin by lubricating new o-ring seals that will sit on the spray tips of each injector and also by aligning the Fuel Rail assembly to the Intake Manifold before pressing it downward until it reaches a fully seated position. The installation procedure begins with installing Fuel Rail attaching studs to 10 n.m (89 lb in) while Fuel Injector sight shield bracket nuts reach 10 n.m (89 lb in) torque value. The right and left side Fuel Injector electrical connectors should be connected to each Fuel Injector before installing the fuel feed and evap lines by using retaining clips (1 and 2) and connecting the evap quick connect fitting to the purge valve and installing the pcv dirty air hose. Conduct the fuel feed hose installation to the Fuel Rail before reattaching the cross vehicle brace and reconnecting the negative Battery Cable. To validate leak-free conditions inspect the system by turning the ignition on when the engine is off for two seconds followed by a ten-second off phase then another two-second ignition on period while checking for fuel leaks before placing the Fuel Injector sight shield.
