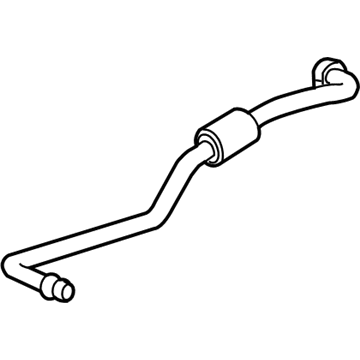

OEM 2008 Cadillac XLR A/C Hose

2008 Cadillac XLR A/C Hose Parts and Q&A

• Q: How to replace the A/C Hose Assembly on 2008 Cadillac XLR?

  A: The a/c system demands refrigerant recovery before starting the replacement of the A/C Compressor hose assembly. Before disposing the radiator support you must record the A/C Compressor hose assembly routes between compressor and condenser while using tape or caps to seal the open a/c components to avoid contamination risks. Remove the bolt on the a/c condenser fitting and separate the hose assembly from the fitting, discard the sealing washer and protect the a/c condenser fitting with a cap and tape. You should disconnect the a/c tube connector from both the evaporator outlet tube and the A/C Compressor hose assembly before disconnecting the outlet tube from the hose assembly itself. Then wrap the tube end with tape or caps to prevent contamination. The service procedure requires vehicle lifting to the correct height and right front wheel and tire removal followed by A/C Compressor hose assembly nut removal and subsequent hose assembly disconnection from the compressor unit among the washer discard. The A/C Compressor demands a cap or tape for coverage while technicians remove the Power Steering Pump. After lowering the vehicle disconnect the A/C Compressor hose assembly from its components. Raise the vehicle to instal the new A/C Compressor hose assembly on both the Power Steering Pump and the vehicle before supporting it. The A/C Compressor hose assembly requires fresh washers to seal properly before connecting it to the compressor when the tape or cap from the compressor has been removed. Install the A/C Compressor hose assembly to A/C Compressor retaining nut by tightening it to 20 n.m (15 lb ft). Reinstall the right front wheel and tire before lowering the vehicle and taking off the covering from the evaporator outlet tubing. The evaporator outlet tube requires new o-rings for installation before connecting it to the A/C Compressor hose assembly. The a/c tube connector must be fitted to the evaporator outlet tube and A/C Compressor hose assembly before the evaporator outlet tube and the a/c condenser fitting are uncapped. Screw the A/C Compressor hose assembly with the new sealing washer connected to the a/c condenser fitting using an A/C Compressor hose assembly bolt that should be tightened to 16 n.m (12 lb ft). Before completing the task, replace the radiator support while adding refrigerant to the system then carry out tests for leaks using the halogen leak detector (J 39400-A).
