How to Properly Service and Repair a Radiator on Buick LeSabre?

The first step to replace a Radiator involves draining the engine coolant then removing the upper Radiator seal together with the upper tie bar. The hose clamp pliers (J 38185) should be used to disconnect the coolant overflow hose from the Radiator before plugging the hose. Remove the upper and lower Radiator hoses from the Radiator through using hose clamp pliers (J 38185) and set them beside you during the process. The bolt securing the transaxle oil cooler pipe should be removed from the lower tie bar before extracting the cooling fans. Hold the plastic cap when sliding it off transaxle oil cooler pipe quick connect fittings before using the cooler quick connect tool (J 41623-B) to unplug upper and lower transaxle oil cooler pipes from the Radiator. First detach the a/c condenser by removing its mounting bolts then disconnect it from the Radiator in order to extract the Radiator from the vehicle. The bottom of the Radiator should be placed into the lower pad followed by condenser installation onto the Radiator while using a special length bolt to connect end tanks of the condenser to the Radiator. Follow the installation instructions to push upper and lower transaxle oil cooler pipes into the Radiator quick connect fittings until a "click" is heard while also placing plastic caps over the quick connect joints. Then tighten the a/c condenser mounting bolts to 13 nm (115 inch lbs.). Replace both cooling fans and the transaxle oil cooler pipe bracket bolt on the lower tie bar while tightening the bolt to 10 nm (89 inch lbs.). The hose clamp pliers (J 38185) should be used to install both upper and lower Radiator hoses on the Radiator and establish the coolant recovery hose connection to the Radiator neck. You should complete your maintenance by installing the upper tie bar then adding an upper Radiator seal before filling the cooling system and checking the transmission oil quantity.

OEM Buick LeSabre Radiator

Cooling Radiator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Radiators found

View related parts

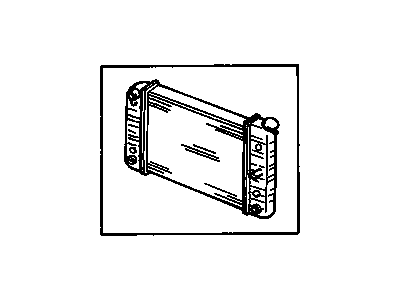

Buick LeSabre Radiator Part Number: 89018545
$177.83 MSRP: $265.81
You Save: $87.98 (34%)
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly; Radiator, Radiator
- Replaces: 52489507, 25731392
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52453816
$266.92 MSRP: $402.60
You Save: $135.68 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 52477309
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1987 Buick LeSabre | Base, Custom, Limited, T-Type | 6 Cyl 3.0 L GAS, 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 25731390
$385.19 MSRP: $606.07
You Save: $220.88 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52477479
Product Specifications
- Other Name: Radiator Assembly
- Replaces: 52453819
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1989 Buick LeSabre | Base, Custom, Limited, T-Type | 6 Cyl 3.0 L GAS, 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52455641
Product Specifications
- Other Name: Radiator Assembly
- Replaced by: 52498584
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991 Buick LeSabre | Base, Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52453819
Product Specifications
- Replaced by: 52477479
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1987 Buick LeSabre | Base, Custom, Limited, T-Type | 6 Cyl 3.0 L GAS, 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52453815
Product Specifications
- Other Name: Radiator Assembly
- Replaced by: 52477738
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1990 Buick LeSabre | Collector's Edition, Custom, Estate Wagon, Limited | 8 Cyl 5.0 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52450287
Product Specifications
- Replaced by: 52498584
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1990 Buick LeSabre | Base, Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 3043351
Product Specifications
- Other Name: Radiator Assembly
- Replaced by: 52477738
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1990 Buick LeSabre | Collector's Edition, Custom, Estate Wagon, Limited | 8 Cyl 5.0 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52498584
Product Specifications
- Other Name: Radiator Assembly; Radiator, Radiator
- Replaces: 03093190, 03091025, 03035447, 3093190, 52477218, 52450287, 52477219, 52455641, 3035447, 52481613, 3091025, 3090834
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1991 Buick LeSabre | Base, Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Assembly Part Number: 52493406
Product Specifications
- Other Name: Radiator; Radiator, Radiator
- Replaces: 03091026, 52462679, 52455644, 52463453, 52451334, 52453863, 3091026
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1993 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52487030
Product Specifications
- Other Name: Radiator Assembly; Radiator, Radiator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52479539
Product Specifications
- Other Name: Radiator, Radiator
- Replaces: 03037433, 03091023, 3049171, 52452856, 52457644, 52481612, 3042777, 52492959, 3091023, 3037433, 52457637
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1991 Buick LeSabre | Base, Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52477738
Product Specifications
- Other Name: Radiator Assembly; Radiator, Radiator
- Replaces: 03030100, 03043351, 03092773, 03035459, 3043351, 3035459, 3092773, 52481614, 3030100, 52453815, 52477224
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1990 Buick LeSabre | Collector's Edition, Custom, Estate Wagon, Limited | 6 Cyl 3.8 L GAS, 6 Cyl 4.1 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Buick LeSabre Radiator Assembly Part Number: 52468360
Product Specifications
- Other Name: Radiator; Radiator, Radiator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1999 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52462630
Product Specifications
- Other Name: Radiator Assembly; Radiator, Radiator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick LeSabre Radiator Part Number: 52493121
$179.89 MSRP: $268.90
You Save: $89.01 (34%)
Product Specifications
- Other Name: Radiator Assembly; Radiator, Radiator
- Replaces: 52462564, 52462554, 52476571
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1993 Buick LeSabre | Custom, Limited | 6 Cyl 3.8 L GAS

Buick LeSabre Radiator

Want to cut long-term maintenance and repair costs? Choose OEM Radiator. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Buick LeSabre parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Buick LeSabre Radiator includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Buick LeSabre Radiator is a crucial component that plays a huge role in making the vehicle reliable and performant by regulating the temperature of the engine. Meant to warm the surrounding air by all means, the failures usually come equipped with a lightweight aluminum core filled with the system of fins and tubes. It is important for the wide spectrum of LeSabre models so that the engine would become more efficient and safe due to the non-overheating factor. The car model that is associated with the radiator is the Buick LeSabre which was in production for 46YEARS from 1959 to 2005 and is attributed to its tough performance thus the significance of the radiator. Adaptability of the product to various LeSabre models such as the sedan and the convertible makes it possible to achieve optimal benefits of the radiator's enhanced cooling for every model. Interestingly, there is the Buick LeSabre Radiator in the market that has options for direct fit hence easing the installation process and the possibility to keep the engine cooler through better heat exchange. The improvements such as large tubes and higher fin density add to its effectiveness, thus making it ideal for use by LeSabre users. Thanks to their quality obsession, Buick LeSabre Radiator not only enables the car to deliver peak performance but also significantly contributes to the safety of the car's engine; therefore the Buick LeSabre is definitely a reliable and robust car.

Buick LeSabre Radiator Parts Questions & Experts Answers

Radiator
89018545
Q: How to Properly Service and Repair a Radiator on Buick LeSabre?
A:
The first step to replace a Radiator involves draining the engine coolant then removing the upper Radiator seal together with the upper tie bar. The hose clamp pliers (J 38185) should be used to disconnect the coolant overflow hose from the Radiator before plugging the hose. Remove the upper and lower Radiator Hoses from the Radiator through using hose clamp pliers (J 38185) and set them beside you during the process. The bolt securing the transaxle oil cooler pipe should be removed from the lower tie bar before extracting the cooling fans. Hold the plastic cap when sliding it off transaxle oil cooler pipe quick connect fittings before using the cooler quick connect tool (J 41623-B) to unplug upper and lower transaxle oil cooler pipes from the Radiator. First detach the a/c condenser by removing its mounting bolts then disconnect it from the Radiator in order to extract the Radiator from the vehicle. The bottom of the Radiator should be placed into the lower pad followed by condenser installation onto the Radiator while using a special length bolt to connect end tanks of the condenser to the Radiator. Follow the installation instructions to push upper and lower transaxle oil cooler pipes into the Radiator quick connect fittings until a "click" is heard while also placing plastic caps over the quick connect joints. Then tighten the a/c condenser mounting bolts to 13 nm (115 inch lbs.). Replace both cooling fans and the transaxle oil cooler pipe bracket bolt on the lower tie bar while tightening the bolt to 10 nm (89 inch lbs.). The hose clamp pliers (J 38185) should be used to install both upper and lower Radiator hoses on the Radiator and establish the coolant recovery hose connection to the Radiator neck. You should complete your maintenance by installing the upper tie bar then adding an upper Radiator seal before filling the cooling system and checking the transmission oil quantity.
