OEM Cadillac Engine Mount Torque Strut
Engine Torque Strut Mount- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
5 Engine Mount Torque Struts found
Product Specifications- Other Name: Strut, Engine Mount Dampening; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Front Mount; Strut, Engine Mounting
- Replaces: 25749806

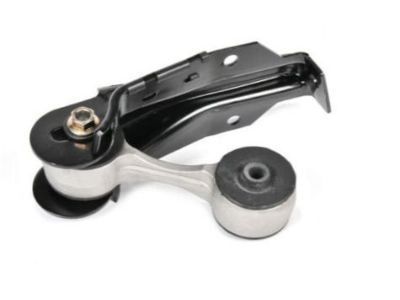

Cadillac Strut Mount, Driver Side
Part Number: 22173251$62.81 MSRP: $106.95You Save: $44.14 (42%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Strut, Engine Mounting; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Torque Strut; Damper Strut; Strut
- Position: Driver Side
Product Specifications- Other Name: Strut, Transmission Mounting; Engine Mount Torque Strut; Strut Rod; Torque Strut; Lateral Strut; Strut
Product Specifications- Other Name: Strut, Engine Mount Dampening; Engine Mount Torque Strut; Engine Mount Bracket; Engine Torque Strut; Motor Mount; Torque Strut; Damper Strut; Strut; Strut, Engine Mounting
- Position: Passenger Side
Product Specifications- Other Name: Strut Assembly, Engine Mount; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Torque Strut; Damper Strut; Strut; Strut, Engine Mount Dampening; Strut, Engine Mounting
- Position: Driver Side
- Replaces: 22113025
Cadillac Engine Mount Torque Strut Parts Questions & Experts Answers
- Q: How to Properly Install an Engine Mount Torque Strut on a Cadillac Eldorado?A: Service process for replacing engine mount struts consists of independent servicing because it preserves engine support integrity. The maintenance process starts with breaking the bolt which holds the engine mount strut at the engine before handling all three bolts which secure the strut to the radiator tie bar. The engine mount strut should be extracted from the vehicle after it has been removed from its position. Install the engine mount strut by returning it to position and fasten the three bolts to the radiator tie bar using 24 Nm (18 ft. lbs. torque value). The last installation task involves tightening the mount strut bolt to 78 Nm (58 ft. lbs.) while it secures the strut to the engine.
- Q: How to replace the right side Engine Mount Torque Strut on Cadillac DTS?A: The first step to replace the right side engine mount strut requires removing surge tank nuts followed by push pin retainer before extracting the surge tank from its mounting studs. Begin by removing both the engine mount strut brace bolt together with the nut then uninstall the entire engine mount strut brace piece. Following that installation requires the removal of the engine mount strut bolt along with the engine mount strut. Start engine mount strut installation by referring to the Fastener Notice and following its instructions. After installing the engine mount strut bolt you should apply torque until it reaches 70 N.m (52 lb ft). Install the engine mount strut brace before installing its bolt and nut according to torque specifications of 50 N.m tensions and 70 N.m for the nut. The last step entailed positioning the surge tank on its studs before installing surge tank nuts and push pin retainers which should be tightened to 6 N.m (53 lb in).
