How to replace the A/C Condenser in a heavy-duty cooling system on Cadillac SRX?

The first step to replace a heavy-duty condenser involves recovering the refrigerant from the cooling system. Start by removing the Power Steering Cooler mounting bolts and lift the vehicle for support. First remove front air deflector retainers and front air deflector before proceeding to lower air baffle push pin retainers. Start by removing the bolting on both the condenser's upper bracket and lower mounting points before unbolting the discharge line along with its o-ring. Remove the condenser tube from the condenser while discarding its o-ring. Pull the Power Steering Cooler out of the way to access the condenser so you can remove it. When installing a fresh condenser you should introduce the recommended amount of pag oil at this time directly to the condenser. Position the Power Steering Cooler aside before installing the replacement condenser. Fasten the condenser tube to the condenser using the correct o-ring before securing it with the condenser tube bolt that should be tightened to 9 n.m (80 lb in). Reinstall the discharge line with its new o-ring and bolt it to the condenser before tightening the bolt to 9 n.m (80 lb in). Fasten the condenser's lower mounting bolts to 5.4 n.m (48 lb in) then apply the same torque value to the upper bracket bolts. Put back the lower air baffle push pin retainers followed by the front air deflector and its mounting retainers. Lower the vehicle while installing Power Steering Cooler mounting bolts. Use the halogen leak detector (J 39400-A) to check fitting leaks after completing evacuation and recharging of the a/c system.

OEM Cadillac SRX A/C Condenser

Air Conditioning Condenser

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 A/C Condensers found

View related parts

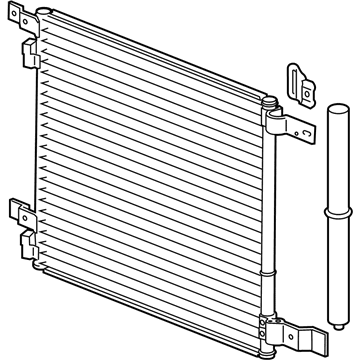

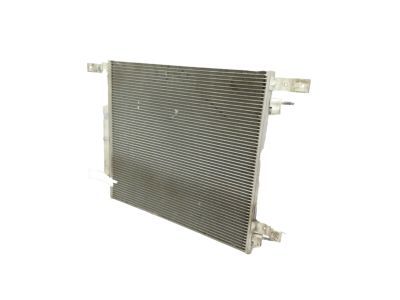

Cadillac SRX Condenser Part Number: 22973655
$157.44 MSRP: $269.62
You Save: $112.18 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 20926499, 22872052, 20981270
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Condenser Part Number: 20818742
$19.23 MSRP: $29.00
You Save: $9.77 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser A/C; Condenser, A/C Condenser
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS
View related parts
Cadillac SRX Upper Hose Part Number: 19355727
Product Specifications
- Other Name: Condenser Assembly, A/C; Transmission Oil Cooler Hose; A/C Condenser; Condenser A/C; Condenser; Condenser, A/C Condenser
- Replaces: 25728392, 19129982
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2008 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Condenser Part Number: 89022521
Product Specifications
- Other Name: Condenser, A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 19130354
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Condenser Part Number: 88957420
$183.04 MSRP: $273.60
You Save: $90.56 (34%)
Product Specifications
- Other Name: Condenser, A/C; A/C Condenser; Condenser A/C; Condenser, A/C Condenser
- Replaces: 19130355
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS

Cadillac SRX A/C Condenser

Want to cut long-term maintenance and repair costs? Choose OEM A/C Condenser. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX A/C Condenser includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The A/C Condenser is an essential part that tells the stories of reliability and excellent performance through Cadillac mid-size luxury SUV. Essentially, the A/C Condenser plays a role of a heat exchanger whereby, the gaseous type of refrigerant is condensed into liquid form by lowering temperatures before it moves to the accumulator for maintaining the right cabin climate. Thus, this component is located in front of the radiator and includes a network of tubes provided for the effective cooling of the refrigerant necessary for increasing the general performance and Cadillac SRX safety. The A/C Condenser is compatible with multiple models of the SRX across two generations, the A/C Condenser stands out for the efficiency in the models' design and operation, promising comfort on any driving journey for Cadillac's clients. The Cadillac SRX is an automobile that is lauded for its fail-proof and elegant design and as a luxurious ride the A/C Condenser helps in regulating the climate within the car in a major way. Additional qualities like hi-tech safety, inner luxury of SRX is further enhanced with the solid performance of A/C Condenser. Among all offered A/C Condensers in the automotive market, the vehicle climate control plays one of the important roles to provide a comfortable ride for the driver and passengers regardless of the weather conditions outside. Overall, it must be concluded that A/C Condenser is rather essential for the vehicle's performance, improving its energy-saving abilities and security along with strengthening the Cadillac brand image as the provider of comfortable, luxurious, and safe car.

Cadillac SRX A/C Condenser Parts and Q&A

Condenser
88957420
Q: How to replace the A/C Condenser in a heavy-duty cooling system on Cadillac SRX?
A:
The first step to replace a heavy-duty condenser involves recovering the refrigerant from the cooling system. Start by removing the Power Steering Cooler mounting bolts and lift the vehicle for support. First remove front air deflector retainers and front air deflector before proceeding to lower air baffle push pin retainers. Start by removing the bolting on both the condenser's upper bracket and lower mounting points before unbolting the discharge line along with its o-ring. Remove the condenser tube from the condenser while discarding its o-ring. Pull the Power Steering Cooler out of the way to access the condenser so you can remove it. When installing a fresh condenser you should introduce the recommended amount of pag oil at this time directly to the condenser. Position the Power Steering Cooler aside before installing the replacement condenser. Fasten the condenser tube to the condenser using the correct o-ring before securing it with the condenser tube bolt that should be tightened to 9 n.m (80 lb in). Reinstall the discharge line with its new o-ring and bolt it to the condenser before tightening the bolt to 9 n.m (80 lb in). Fasten the condenser's lower mounting bolts to 5.4 n.m (48 lb in) then apply the same torque value to the upper bracket bolts. Put back the lower air baffle push pin retainers followed by the front air deflector and its mounting retainers. Lower the vehicle while installing Power Steering Cooler mounting bolts. Use the halogen leak detector (J 39400-A) to check fitting leaks after completing evacuation and recharging of the a/c system.
