How to replace the front floor console cup holder on Cadillac STS?

The process starts with removing the Center Console before taking out the front hvac duct. After this you should proceed to eliminate screws that keep the side impact brace secure followed by screws holding the center hvac duct in position. The route for Cup Holder installation involves installing screws which attach it to console's surface and to its top before tightening them to 2 n.m force (18 lb in force). Begin by unscrewing the side impact brace keeping screws in place. After that remove the screws which fasten the center hvac duct. Secure the Cup Holder with screws onto both the console then top of the console before completing the procedure. Begin Cup Holder installation by using screws to fasten the Cup Holder onto the console top and tighten them to 2 n.m (18 lb in). After that attach the Cup Holder to the console through screws while torquing them to 2 n.m (18 lb in). Installation of screws for the center hvac duct should be performed before the front hvac duct goes in. Tighten the screws to 2 n.m (18 lb in) before proceeding with the next steps. The last step includes attaching the side impact brace through screws which need to be tightened until reaching 2 n.m (18 lb in) torque followed by installing the Center Console.

OEM Cadillac STS Cup Holder

Drink Holder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Cup Holders found

View related parts

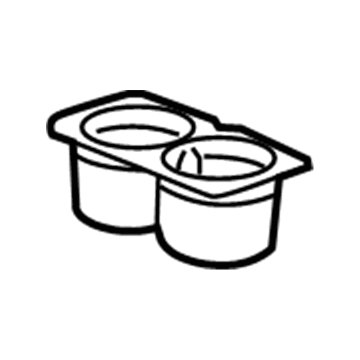

Cadillac STS Cup Holder
Part Number: 88949037
Product Specifications
- Other Name: Liner, Rear Seat Center Armrest
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2008 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

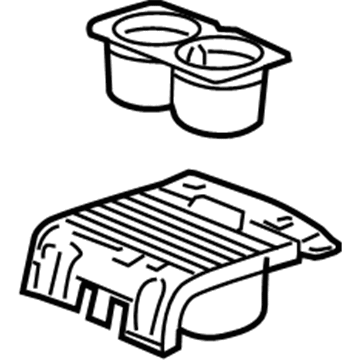

Cadillac STS Liner, Front
Part Number: 25770235
Product Specifications
- Other Name: Liner-Front Floor Console Cup Holder *Ebony; Liner, Floor Console
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Cup Holder
Part Number: 15930713
Product Specifications
- Other Name: Holder, Floor Console
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Cup Holder, Black, Front
Part Number: 15930712
Product Specifications
- Other Name: Holder Assembly-Front Floor Console Cup *Ebony; Holder, Floor Console
- Position: Front
- Replaces: 15138871
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Cup Holder, Gray
Part Number: 15930711
Product Specifications
- Other Name: Holder, Floor Console
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Cup Holder
Part Number: 15138872
Product Specifications
- Other Name: Holder, Floor Console
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Cadillac STS | Base, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Cup Holder, Gray
Part Number: 15138870
Product Specifications
- Other Name: Holder, Floor Console
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Cadillac STS | Base, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS

Cadillac STS Cup Holder

Our website offers an extensive catalog of genuine Cadillac STS Cup Holder at unbeatable prices. Every OEM Cadillac STS Cup Holder comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Cadillac STS Cup Holder Parts Questions & Experts Answers

Cup Holder
15138872
Q: How to replace the front floor console cup holder on Cadillac STS?
A: The process starts with removing the Center Console before taking out the front hvac duct. After this you should proceed to eliminate screws that keep the side impact brace secure followed by screws holding the center hvac duct in position. The route for Cup Holder installation involves installing screws which attach it to console's surface and to its top before tightening them to 2 n.m force (18 lb in force). Begin by unscrewing the side impact brace keeping screws in place. After that remove the screws which fasten the center hvac duct. Secure the Cup Holder with screws onto both the console then top of the console before completing the procedure. Begin Cup Holder installation by using screws to fasten the Cup Holder onto the console top and tighten them to 2 n.m (18 lb in). After that attach the Cup Holder to the console through screws while torquing them to 2 n.m (18 lb in). Installation of screws for the center hvac duct should be performed before the front hvac duct goes in. Tighten the screws to 2 n.m (18 lb in) before proceeding with the next steps. The last step includes attaching the side impact brace through screws which need to be tightened until reaching 2 n.m (18 lb in) torque followed by installing the Center Console.
