How to Service and Repair the Wheel Bearing and Wheel Hub on a Cadillac STS?

Begin your front wheel bearing and hub replacement project on an awd vehicle by raising it to a height while using proper support. Lift the vehicle and remove its tire and wheel. Then unscrew and keep the wheel driveshaft retaining nut for replacement. First disconnect the brake rotor then access its antilock brake system electrical connection before proceeding to remove the abs electrical components attached to the splash shield. Keep the outer constant velocity boot seal secured to prevent damage when you remove wheel bearing mounting bolts. Install the wheel hub remover (J 45859) tool or cj129 snap-on hub puller and 7394 otc tool onto the wheel bearing before carefully eliminating all wheel bearing/hub mounting bolts. Repeat the same procedure to release the driveshaft connection with the wheel bearing/hub and remove the wheel bearing/hub. Fasten the new wheel bearing/hub to its place through mounting bolts before tightening them to 135 nd.m (100 pound-feet). Install the abs electrical connector onto its designated position on the splash shield and attach it. Place the new retaining nut first on the driveshaft and use 160 n.m of torque before adding the brake rotor and tire wheel assembly. Finally, lower the vehicle.

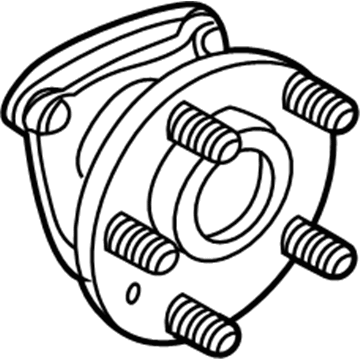

OEM Cadillac STS Wheel Hub

Wheel Axle Hub

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Wheel Hubs found

View related parts
Cadillac STS Hub & Bearing, Front Part Number: 12413103
$106.31 MSRP: $198.37
You Save: $92.06 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub, Front Wheel; Wheel Bearing and Hub Assembly; ABS Sensor; Repair Kit.; Front Speed Sensor
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Hub & Bearing, Front Part Number: 19352506
$176.72 MSRP: $319.85
You Save: $143.13 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Assembly, Front Wheel (W/Wheel Speed Sensor); Wheel Bearing & Hub Repair Kit.; Hub, Front Wheel
- Position: Front
- Replaces: 15816313
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Cadillac STS | V | 8 Cyl 4.4 L GAS
View related parts
Cadillac STS Hub & Bearing Part Number: 89047639
Product Specifications
- Other Name: Hub, Rear Wheel; Wheel Bearing and Hub Assembly; Wheel Bearing & Hub Assembly; Wheel Bearing; Axle Bearing; Wheel Hub
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Hub & Bearing, Front Part Number: 25998408
Product Specifications
- Other Name: Bearing Assembly, Front Wheel; Wheel Hub Repair Kit; ABS Sensor.; Front Speed Sensor; Hub, Front Wheel
- Position: Front
- Replaces: 12413105
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac STS | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Hub & Bearing, Rear Part Number: 15819433
Product Specifications
- Other Name: Hub, Rear Wheel; Wheel Bearing and Hub Assembly; Wheel Bearing & Hub Assembly; Wheel Bearing; Axle Bearing; Wheel Hub
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Cadillac STS | V | 8 Cyl 4.4 L GAS
View related parts
Cadillac STS Rear Speed Sensor, Front Part Number: 19370295
$155.46 MSRP: $278.86
You Save: $123.40 (45%)
Product Specifications
- Other Name: Hub Assembly, Front Wheel (W/Wheel Speed Sensor); Hub & Bearing; Front Speed Sensor; Hub, Front Wheel; Hub, Rear Wheel
- Position: Front
- Replaces: 12413071, 25693148, 19259810
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS

Cadillac STS Wheel Hub

Want to cut long-term maintenance and repair costs? Choose OEM Wheel Hub. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac STS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac STS Wheel Hub includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Cadillac STS Wheel Hub is one of the many parts of the car that sits perfectly with the brands' reliability and performance notions. Situated as the crucial link between the wheels and the car, and the equipment as a whole, the Wheel Hub plays an important part in facilitating the rotate motion of the wheels while holding and integrating other parts such as the wheel bearings and the brake systems which help in improving on safety and on the steering ability of the car. Manufactured uniquely for a range of Cadillac STS models, the Wheel Hub has splined teeth to interact with the shaft of the axle to provide worthwhile trussing of the axle shaft and shaft hub to enable good transmission of power to the wheels. Thus, the compatibility of the Wheel Hub across different types of STS variants indicates the need to choose the appropriate Wheel Hub to enhance performance. The Cadillac STS Wheel Hub enjoys a particular demand in the automotive market because of the strict standard material quality that allows the product to be used for a long time as reliability pertains to the use of the vehicle. Moreover, the Wheel Hub that helps to tune up the increased efficiency as an essential component of the car and new systems like the lane departure warning and car stability. Apart from enhancing the dynamics of the vehicle the Cadillac STS Wheel Hub is engineered to perform and serves as an addendum to the concept of Cadillacs as the respected luxury automobiles. In conclusion, Cadillac STS Wheel Hub is one of the best embodiments of the automobile manufacturing seriousness of the Cadillac brand, which is why it is such an essential addition to the STS model that allows not only to improve its indicators but also to increase safety on the road.

Cadillac STS Wheel Hub Parts Questions & Experts Answers

Hub & Bearing, Front
12413103
Q: How to Service and Repair the Wheel Bearing and Wheel Hub on a Cadillac STS?
A:
Begin your front wheel bearing and hub replacement project on an awd vehicle by raising it to a height while using proper support. Lift the vehicle and remove its tire and wheel. Then unscrew and keep the wheel driveshaft retaining nut for replacement. First disconnect the brake rotor then access its antilock brake system electrical connection before proceeding to remove the abs electrical components attached to the splash shield. Keep the outer constant velocity boot seal secured to prevent damage when you remove wheel bearing mounting bolts. Install the wheel hub remover (J 45859) tool or cj129 snap-on hub puller and 7394 otc tool onto the wheel bearing before carefully eliminating all wheel bearing/hub mounting bolts. Repeat the same procedure to release the driveshaft connection with the wheel bearing/hub and remove the wheel bearing/hub. Fasten the new wheel bearing/hub to its place through mounting bolts before tightening them to 135 nd.m (100 pound-feet). Install the abs electrical connector onto its designated position on the splash shield and attach it. Place the new retaining nut first on the driveshaft and use 160 n.m of torque before adding the brake rotor and tire wheel assembly. Finally, lower the vehicle.
