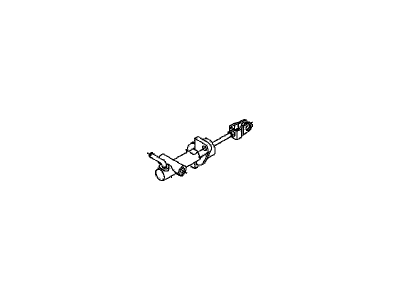

OEM Chevrolet Aveo Clutch Master Cylinder

Chevrolet Aveo Clutch Master Cylinder Parts Questions & Experts Answers

• Master Cylinder
  96652647
  Q: How to replace the Clutch Master Cylinder on Chevrolet Aveo?

  A: To replace Clutch Master Cylinder first lift off the clutch/ brake fluid from the reservoir tank before unhooking the reservoir tank hose. Start with the removal of the locking clip, pull the push rod fixing pin and push rod. Next, you will detach the hose clamp from the master cylinder hose, and the hose to a master cylinder, then accompanied by the detachment of the pipe that leads to the master cylinder and the Clutch Master Cylinder nuts, removing the Clutch Master Cylinder. For installation, his first installs the Clutch Master Cylinder and secures it to the engine flywheel using the Clutch Master Cylinder nuts that are tighten to 22 nm torques (16 ft. Lbs.). After that, install the master cylinder pipe, connect the master cylinder hose, and then tighten up the hose clamp. After that, reinstall the push rod fixing pin and push rod after that the locking clip. Proceed to bleed the air, adjust the clutch pedal and fill the reservoir with clutch/brake fluid to the max mark.
