How to replace the fuel pressure sensor in the fuel injection fuel rail on Chevrolet Camaro?

You need to empty fuel system pressure before starting the Fuel Pressure Sensor replacement operation in the fuel injection Fuel Rail. The replacement of the Fuel Pressure Sensor in the fuel injection Fuel Rail begins by removing both the cross vehicle brace together with the Intake Manifold followed by extraction of the foam insulator from the fuel rails. Do not place any force directly on the plastic sensor housing but apply force only on the hexagon components attached to it. A 27 mm socket allows safe removal of the Fuel Pressure Sensor from the fuel injection Fuel Rail . Discard this sensor when it is removed. Let all fuel drain out from the Fuel Rail and sensor location while using a lint-free cloth to dry the sealing cone in the Fuel Rail along with the sensor joint area. Check the sealing cone for absence of fuel while inspecting it for debris and burrs. Silicon-free engine oil gm p/n 12345610 (Canadian P/N 993193) or its equivalent should be used to lubricate threads and sealing cone areas in both the Fuel Rail and new fuel injection Fuel Rail Fuel Pressure Sensor. The new Fuel Pressure Sensor should be torqued to the fuel injection Fuel Rail with low force before removal for reapplication of earlier instructed lubrication steps. Fasten the new Fuel Pressure Sensor to the fuel injection Fuel Rail by torquing it to 33 nm (25 lb ft). Replace the foam insulator along with the Intake Manifold. A faulty Fuel Rail demands complete replacement when fuel leakage happens at this location. Before inspecting for leaks turn the ignition on with the engine off for 2 seconds, wait 10 seconds for the ignition off state followed by turning on the ignition with the engine off before inspecting for leakage. As a final step replace the cross vehicle brace installation.

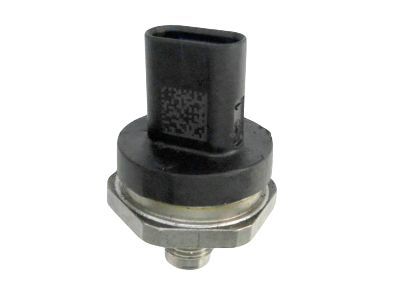

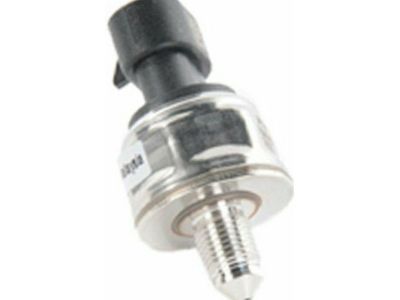

OEM Chevrolet Camaro Fuel Pressure Sensor

Fuel Tank Pressure Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Fuel Pressure Sensors found

View related parts
Chevrolet Camaro Fuel Pressure Regulator, Passenger Side Part Number: 16238399
$54.17 MSRP: $101.06
You Save: $46.89 (47%)
ADD TO CART
Product Specifications
- Other Name: Sensor, Fuel Tank Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Pressure Regulator; Sensor, Early Fuel Evaporation; Fuel Gauge Sending Unit; Tank Pressure Sensor
- Position: Passenger Side
- Replaces: 12206740, 16217059, 16257276, 22678829, 09377680, 12219388, 16196060, 9377680
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2002 Chevrolet Camaro | Base, Z28, Z28 SS | 6 Cyl 3.8 L GAS, 8 Cyl 5.7 L GAS
View related parts
Chevrolet Camaro Pressure Sensor, Passenger Side Part Number: 13502903
$48.74 MSRP: $100.17
You Save: $51.43 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Tank Pressure Sensor; Level Sensor; Tank Pressure Sensor; Sensor; Sensor, Early Fuel Evaporation; Sensor, Fuel Tank Meter/Pump
- Position: Passenger Side
- Replaces: 13502510
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2022 Chevrolet Camaro | LS, LT, LT1, SS, Z/28, ZL1 | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Camaro Pressure Sensor Part Number: 12682589
$52.23 MSRP: $106.10
You Save: $53.87 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12662738, 12652442
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2017 Chevrolet Camaro | LS, LT | 6 Cyl 3.6 L GAS
View related parts
Chevrolet Camaro Pressure Sensor Part Number: 12673824
$65.33 MSRP: $132.70
You Save: $67.37 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12623130
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016 Chevrolet Camaro | SS | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Camaro Pressure Sensor Part Number: 12635273
$65.24 MSRP: $132.52
You Save: $67.28 (51%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Pressure Sensor; Sensor; Injector; Sensor, Computer Control Sensors
- Replaces: 12633417
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2015 Chevrolet Camaro | LS, LT | 6 Cyl 3.6 L GAS
View related parts
Chevrolet Camaro Pressure Sensor Part Number: 12627092
$94.23 MSRP: $191.44
You Save: $97.21 (51%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor; Sensor, Computer Control Sensors
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016 Chevrolet Camaro | LT | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Camaro Pressure Sensor Part Number: 25201778
$51.00 MSRP: $91.08
You Save: $40.08 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection; Fuel Rail Pressure Sensor; Fuel Tank Pressure Sensor
- Replaced by: 28289962
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2020 Chevrolet Camaro | LS, LT | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Camaro Pressure Sensor Part Number: 12708493
$22.92 MSRP: $43.04
You Save: $20.12 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection; Fuel Rail Pressure Sensor; Fuel Tank Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12684286, 12664124
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2022 Chevrolet Camaro | LS, LT, LT1, SS, ZL1 | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Chevrolet Camaro Pressure Sensor Part Number: 25201779
$58.26 MSRP: $109.40
You Save: $51.14 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Sensor, Computer Control Sensors
- Replaced by: 28289963
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2022 Chevrolet Camaro | LS, LT | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Camaro Pressure Sensor Part Number: 13516496
$48.62 MSRP: $98.74
You Save: $50.12 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Tank Pressure Sensor; Sensor, Computer Control Sensors; Sensor, Fuel Tank Meter/Pump
- Replaces: 13579380
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2013-2015 Chevrolet Camaro | LS, LT, SS, Z/28, ZL1 | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Camaro Pressure Sensor Part Number: 92239823
Product Specifications
- Other Name: Sensor Assembly-Fuel Pressure; Sensor, Computer Control Sensors; Sensor, Fuel Tank Meter/Pump
- Replaces: 92206031
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2012 Chevrolet Camaro | LS, LT, SS, ZL1 | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS

Chevrolet Camaro Fuel Pressure Sensor

Want to cut long-term maintenance and repair costs? Choose OEM Fuel Pressure Sensor. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Camaro parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Camaro Fuel Pressure Sensor includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Fuel Pressure Sensor in Chevrolet Camaro is commonly referred to as a fuel tank pressure sensor, and it comes with a very significant role of determining the fuel pressure inside the fuel tank as well as the fuel rail. Therefore, the sensor transfers such information into vehicle's internal computer where necessary adjustments on the timing can be made for efficient performance of the engine. While there may be a variety of fuel pressure sensors, each serves the same basic function of providing the Camaro's engine with fuel pressure, though some could vary in construction or operation. Some of the signs that show that the sensor is has a problem include hard starting or low fuel efficiency, to ensure that the engine runs as it should then there is need to look for the warning signs of a faulty sensor. The evaluation of fuel pressure sensors is necessary for proper functioning of the engine in Chevrolet Camaro cars.

Chevrolet Camaro Fuel Pressure Sensor Parts Questions & Experts Answers

Pressure Sensor
12635273
Q: How to replace the fuel pressure sensor in the fuel injection fuel rail on Chevrolet Camaro?
A:
You need to empty fuel system pressure before starting the Fuel Pressure Sensor replacement operation in the fuel injection Fuel Rail. The replacement of the Fuel Pressure Sensor in the fuel injection Fuel Rail begins by removing both the cross vehicle brace together with the Intake Manifold followed by extraction of the foam insulator from the fuel rails. Do not place any force directly on the plastic sensor housing but apply force only on the hexagon components attached to it. A 27 mm socket allows safe removal of the Fuel Pressure Sensor from the fuel injection Fuel Rail . Discard this sensor when it is removed. Let all fuel drain out from the Fuel Rail and sensor location while using a lint-free cloth to dry the sealing cone in the Fuel Rail along with the sensor joint area. Check the sealing cone for absence of fuel while inspecting it for debris and burrs. Silicon-free engine oil gm p/n 12345610 (Canadian P/N 993193) or its equivalent should be used to lubricate threads and sealing cone areas in both the Fuel Rail and new fuel injection Fuel Rail Fuel Pressure Sensor. The new Fuel Pressure Sensor should be torqued to the fuel injection Fuel Rail with low force before removal for reapplication of earlier instructed lubrication steps. Fasten the new Fuel Pressure Sensor to the fuel injection Fuel Rail by torquing it to 33 nm (25 lb ft). Replace the foam insulator along with the Intake Manifold. A faulty Fuel Rail demands complete replacement when fuel leakage happens at this location. Before inspecting for leaks turn the ignition on with the engine off for 2 seconds, wait 10 seconds for the ignition off state followed by turning on the ignition with the engine off before inspecting for leakage. As a final step replace the cross vehicle brace installation.
