How to replace the A/C Condenser in the HVAC system on Chevrolet Equinox?

To insert the condenser of the hvac system first retrieve the refrigerant. Remove the front fascia, and in case of pontiac models, remove the Hood Latch. Then, the removal of the battery box air duct, and condenser Radiator fan module (CRFM) closeout panel is needed. Remove the liquid line nut and liquid line from the condenser making sure that a protective cap is installed on the liquid line to prevent contamination and desiccant saturationnof the liquid line. Next will be the removal of the compressor hose nut and the hose from the condenser while capping the hose compressor to avoid contamination. Remove crfm bracket bolts from the Radiator support and pull out crfm brackets. Remove the bolts retaining the top of the condenser from the Radiator and remove the condenser from the vehicle. For installation, the stated amount of pag oil should be added to the condenser, and the seals of the Radiator to condenser should be checked to ensure orifices are in proper place. Mount the condenser to the lower retention clips on the Radiator and secure it by mounting the bolts retaining the top of the condenser to the Radiator and tighten them on 9 n.m (80 lb inWebRequest). Replace the crfm brackets and their bolts back into the Radiator support and tighten these to 20n.m (15 lb ft). Outfit the compressor hose with a new sealing washer and attach the hose to the condenser, tightening the nut to 20 n.m (15 lb ft). And finally, take off the protective cap of the compressor hose. Replace the new seal washer on to the liquid line and fix it to the condenser.tighten the nut on the liquid line to 20 n. M (15 lb. Ft.). Finally, follow the installation of the crfm closeout panel, the battery box air duct, pontiac models Hood Latch assembly, and front fascia. Evacuate and charge the a/c system, check the affected a/c joints on leaks by means of halogen leak detector (J 39400-A).

OEM Chevrolet Equinox A/C Condenser

Air Conditioning Condenser

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 A/C Condensers found

View related parts

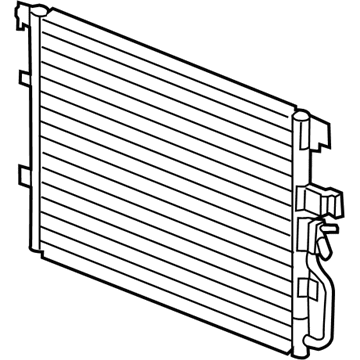

Chevrolet Equinox Condenser Part Number: 15232871
$118.78 MSRP: $229.87
You Save: $111.09 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser A/C; Condenser, A/C Condenser
- Replaces: 22722507
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts

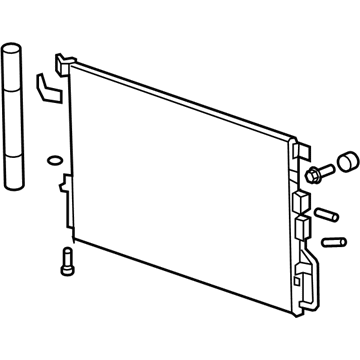

Chevrolet Equinox Condenser Part Number: 84782534
$160.75 MSRP: $275.27
You Save: $114.52 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser, A/C Condenser
- Replaced by: 85092000
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2022-2024 Chevrolet Equinox | LS, LT, Premier, RS | 4 Cyl 1.5 L GAS
View related parts
Chevrolet Equinox Condenser Part Number: 84782527
$164.02 MSRP: $280.88
You Save: $116.86 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 23270537, 84550136
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2021 Chevrolet Equinox | L, LS, LT, Premier | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Condenser Part Number: 23400197
$227.15 MSRP: $339.48
You Save: $112.33 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 23288135
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Condenser Part Number: 19256971
$139.95 MSRP: $239.67
You Save: $99.72 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly, A/C; A/C Condenser; Condenser A/C; Condenser, A/C Condenser
- Replaces: 15781440, 19256533
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chevrolet Equinox | LS, LT, LTZ | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox Condenser Part Number: 20839794
$169.15 MSRP: $252.81
You Save: $83.66 (34%)
Product Specifications
- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser A/C; Condenser, A/C Condenser
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2015 Chevrolet Equinox | L, LS, LT, LTZ | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Condenser Part Number: 19256972
Product Specifications
- Other Name: Condenser Assembly, A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 19130427
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Chevrolet Equinox | Sport | 6 Cyl 3.6 L GAS

Chevrolet Equinox A/C Condenser

Want to cut long-term maintenance and repair costs? Choose OEM A/C Condenser. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Equinox parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Equinox A/C Condenser includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

In Chevrolet Equinox cars' air conditioning system, the A/C Condenser is a heat exchanger, which cools a gaseous state of the refrigerant and condenses it before going to the accumulator. This part is usually located ahead the radiator and is composed of several tubes which play the role of cooling. Although it is not mentioned which types or styles of the A/C condensers can be applied to different Equinox models, the device is appropriate for refrigerant conversion in all the types. It is crucial to keep the A/C Condenser efficient in its operation in maintaining cabin temperature while in operation to the comfort of the passengers.

Chevrolet Equinox A/C Condenser Parts Questions & Experts Answers

Condenser
19256971
Q: How to replace the A/C Condenser in the HVAC system on Chevrolet Equinox?
A:
To insert the condenser of the hvac system first retrieve the refrigerant. Remove the front fascia, and in case of pontiac models, remove the Hood Latch. Then, the removal of the battery box air duct, and condenser Radiator fan module (CRFM) closeout panel is needed. Remove the liquid line nut and liquid line from the condenser making sure that a protective cap is installed on the liquid line to prevent contamination and desiccant saturationnof the liquid line. Next will be the removal of the compressor hose nut and the hose from the condenser while capping the hose compressor to avoid contamination. Remove crfm bracket bolts from the Radiator support and pull out crfm brackets. Remove the bolts retaining the top of the condenser from the Radiator and remove the condenser from the vehicle. For installation, the stated amount of pag oil should be added to the condenser, and the seals of the Radiator to condenser should be checked to ensure orifices are in proper place. Mount the condenser to the lower retention clips on the Radiator and secure it by mounting the bolts retaining the top of the condenser to the Radiator and tighten them on 9 n.m (80 lb inWebRequest). Replace the crfm brackets and their bolts back into the Radiator support and tighten these to 20n.m (15 lb ft). Outfit the compressor hose with a new sealing washer and attach the hose to the condenser, tightening the nut to 20 n.m (15 lb ft). And finally, take off the protective cap of the compressor hose. Replace the new seal washer on to the liquid line and fix it to the condenser.tighten the nut on the liquid line to 20 n. M (15 lb. Ft.). Finally, follow the installation of the crfm closeout panel, the battery box air duct, pontiac models Hood Latch assembly, and front fascia. Evacuate and charge the a/c system, check the affected a/c joints on leaks by means of halogen leak detector (J 39400-A).
