OEM Chevrolet Equinox Drive Shaft

Axle Shaft
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Drive Shafts found

  • Chevy Equinox Drive Shaft - 85533666

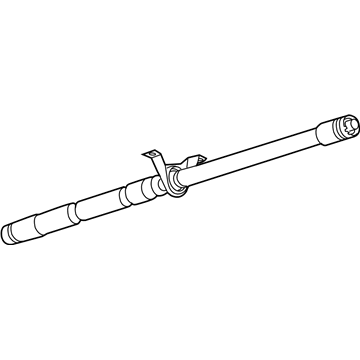

    Chevy Equinox Drive Shaft Diagram - 85533666
    View related parts

    Chevrolet Equinox Drive Shaft Part Number: 85533666

    $395.88 MSRP: $679.89
    You Save: $284.01 (42%)
    ADD TO CART
    Product Specifications
    • Other Name: Shaft Assembly-Propeller
    • Replaced by: 85068914
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
  • Chevy Equinox Drive Shaft - 84214207

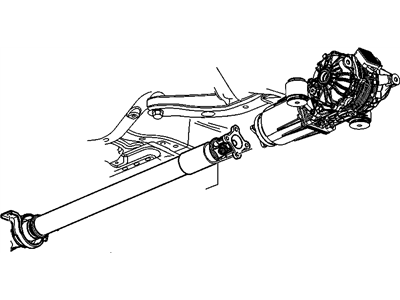

    Chevy Equinox Drive Shaft Diagram - 84214207
    View related parts

    Chevrolet Equinox Drive Shaft Part Number: 84214207

    $1255.15 MSRP: $1740.00
    You Save: $484.85 (28%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Shaft Assembly-Propeller; Driveshaft; Drive Shaft Assembly; Shaft, Propeller
    • Replaces: 20824104, 23481373, 20992596
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2010-2017 Chevrolet Equinox | LT, LTZ, Premier | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
  • Chevy Equinox Drive Shaft - 84214206

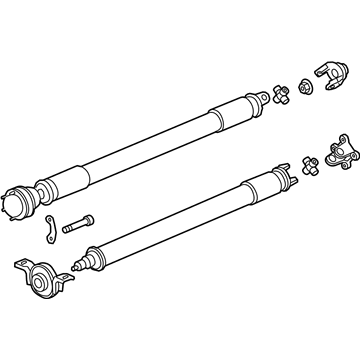

    Chevy Equinox Drive Shaft Diagram - 84214206
    View related parts

    Chevrolet Equinox Drive Shaft Part Number: 84214206

    $1297.17 MSRP: $1740.00
    You Save: $442.83 (26%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Shaft Assembly-Propeller; Driveshaft; Drive Shaft Assembly; Shaft, Propeller
    • Replaces: 20824105, 20992595, 23481375
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2010-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
  • Chevy Equinox Drive Shaft - 19355361

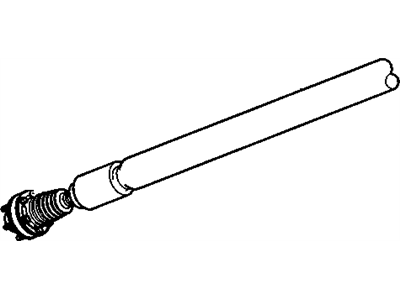

    Chevy Equinox Drive Shaft Diagram - 19355361
    View related parts

    Chevrolet Equinox Drive Shaft Part Number: 19355361

    $1010.47 MSRP: $1300.47
    You Save: $290.00 (23%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Shaft Assembly, Propeller; Driveshaft; Shaft, Propeller
    • Replaces: 25918054, 19328628, 20811303, 25793000
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2008-2009 Chevrolet Equinox | LS, LT, LTZ | 6 Cyl 3.4 L GAS
  • Chevy Equinox Drive Shaft - 19355360
    Chevy Equinox Drive Shaft Diagram - 19355360
    View related parts

    Chevrolet Equinox Drive Shaft Part Number: 19355360

    Product Specifications
    • Other Name: Shaft Assembly, Propeller; Driveshaft; Shaft, Propeller
    • Replaces: 19328627, 25793002, 20811302
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2008-2009 Chevrolet Equinox | Sport | 6 Cyl 3.6 L GAS
  • Chevy Equinox Drive Shaft - 19259831
    Chevy Equinox Drive Shaft Diagram - 19259831
    View related parts

    Chevrolet Equinox Drive Shaft Part Number: 19259831

    Product Specifications
    • Other Name: Shaft Kit, Propeller; Driveshaft; Shaft, Propeller
    • Position: Front and Rear
    • Replaces: 19152721
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2005-2007 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS

Chevrolet Equinox Drive Shaft

Want to cut long-term maintenance and repair costs? Choose OEM Drive Shaft. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Equinox parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Equinox Drive Shaft includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Drive Shaft we find in the Chevrolet Equinox models is used as a tool for transmitting mechanical power or torque, and this is from the engine or transmission and through the drive wheels so as to aid the vehicles operation. This component is intended to ensure capability of subjection to torsion and shear stress and light to minimize inertia. The Equinox uses drive shafts of either one-piece or two- piece that might include the universal joints or the splined joints in case of alignment differences. In all-wheel drive layouts, the Equinox uses multiple Drive Shafts of which a transfer case sends power between the front and rear axles. Application of the singular driveshaft in some of the front-wheel drive versions shows that the vehicle can be adaptable to several drivetrain configurations. Altogether, the driveshaft is fundamental to the responsiveness of the Chevrolet Equinox vehicles in varying operational conditions.

Chevrolet Equinox Drive Shaft Parts Questions & Experts Answers

  • Chevrolet Equinox Drive Shaft - 19259831 Drive Shaft Drive Shaft
    19259831
    Q: How to Ensure Proper Installation of the Drive Shaft on Chevrolet Equinox?
    A:
    The propeller shaft replacement process begins with shifting the transmission into neutral position while supporting the vehicle. You need to index the propeller shaft alignment to its position on the rear drive module flange and afterward remove the underbody guard loop securing bolts and then the guard loop. Maintain support under the propeller shaft at the rear drive module before removing the bolts which join the propeller shaft yoke flange with the rear drive module flange. After positioning the propeller shaft at the power take-off unit (PTU) flange, support it in place before removing the ptu flange bolts. Proceed with supporting the propeller shaft at the support bearing then remove the bolts that attach the support bearing to the vehicle underbody. Use proper support to move the propeller shaft backwards and separate the constant velocity joint from the ptu flange before taking out the propeller shaft from the vehicle. Installation requires supporting the propeller shaft from front to center to rear as you insert it into the vehicle until you install but leave the support bearing mounting bolts loose. Install the forward section of the propeller shaft onto the ptu flange through pushing it rearward before aligning the index marks between propeller shaft constant velocity joint and ptu flange. The front propeller shaft flange bolts require cleaning and gm p/n 89021297 (Canadian P/N 10953488) threadlocker before mounting the bolts with 25 nm (19 ft. Lbs.) torque. (Set the index marks between propeller shaft yoke flange and rear drive module flange then place the propeller shaft while cleaning yoke bolts before applying threadlocker for bolt installation to these flanges with 50 Nm torque. After securing the support bearing bolts at 25 Nm (19 ft. Lbs.) remove the propeller shaft's support stands and install the guard loop to the vehicle bottom before bolting it in place at 25 nm (19 ft. Lbs.).
