How to replace the exhaust heat shield on Chevrolet HHR?

The replacement of the Exhaust Heat Shield requires removal of the Catalytic Converter first. The hanger insulators receive a mist of lubricant before the exhaust hanger insulators can be separated from underbody exhaust hangers and the Muffler assembly can be lowered. Begin by drilling out and removing the 4 heat shield rivets before taking out the heat shield nut and heat shield from its position. Secure the underbody-exhibited Exhaust Heat Shield by placing it into position before attaching its Exhaust Heat Shield nut and tightening it to 10 n.m (89 lb in). Install 4 new heat shield rivets together with lubricant application to the hanger insulators making installation easier. After raising the Muffler assembly you must install the exhaust hanger insulators onto underbody exhaust hangers before reinstalling the Catalytic Converter.

OEM Chevrolet HHR Exhaust Heat Shield

Heat Shield

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Exhaust Heat Shields found

View related parts

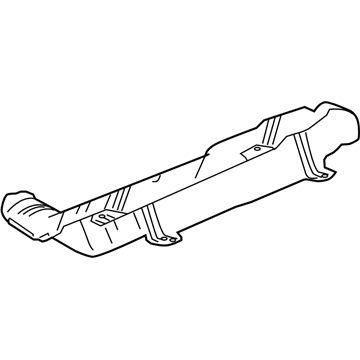

Chevrolet HHR Heat Shield, Upper
Part Number: 12587497
Product Specifications
- Other Name: Shield Assembly-Exhaust Manifold Upper Heat; Exhaust Heat Shield; Exhaust Manifold Heat Shield; Shield, Exhaust Manifold
- Position: Upper
- Replaces: 90537953
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Heat Shield
Part Number: 25862233
Product Specifications
- Other Name: Shield Assembly-Exhaust Heat; Exhaust Heat Shield; Shield, Exhaust Manifold
- Replaces: 10361532
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS, SS Panel | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Heat Shield, Upper
Part Number: 12612286
Product Specifications
- Other Name: Shield Assembly-Exhaust Manifold Upper Heat; Exhaust Heat Shield; Shield, Exhaust Manifold
- Position: Upper
- Replaces: 12603815
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chevrolet HHR | SS, SS Panel | 4 Cyl 2.0 L GAS

Chevrolet HHR Exhaust Heat Shield

Our website offers an extensive catalog of genuine Chevrolet HHR Exhaust Heat Shield at unbeatable prices. Every OEM Chevrolet HHR Exhaust Heat Shield comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Chevrolet HHR Exhaust Heat Shield Parts Questions & Experts Answers

Heat Shield, Upper
12587497
Q: How to replace the exhaust heat shield on Chevrolet HHR?
