How to service and repair the A/C Hose on Chevrolet Trailblazer?

The repair process for trailblazer ext and envoy xl hvac hose/line requires professionals to first recover refrigerant from the system using the halogen leak detector (J 39400-A). The halogen leak detector (J 39400-A) should be used to verify leakproof conditions in all component fittings. Release the compressor suction/discharge hose nut at the compressor's port as well as the compressor suction/discharge hose while uninstalling its sealing washers. You must detach the compressor suction hose nut from the accumulator while you disconnect the hose and o-ring seal from its position on the accumulator. Start by removing the bolt from the lift bracket and nut from the engine stud before removing the compressor discharge hose from the condenser and the nut from the compressor hose connection in the driver wheel opening. O-ring seals should be removed before plugging or capping all open connections. New o-ring seals need installation before connecting and tightening the compressor discharge hose to the condenser at a torque of 28 n.m (21 lb ft). Place the compressor hose on the driver wheel opening connector and torque its nut to 48 n.m (35 lb ft). First thread the compressor suction hose to the engine stud where you should tighten the nut to 48 n.m (35 lb ft) before finally connecting it to the engine lift bracket through a bolt torque to 48 n.m (35 lb ft). The compressor suction hose connects to the accumulator before installation of the suction hose nut which must be tightened to 48 n.m (35 lb ft). Secure the retaining nut with a torque of 33 n.m (24 lb ft) after you attach the compressor suction/discharge hose and install its washers. Empty the system of air and refill the a/c system.

OEM Chevrolet Trailblazer A/C Hose

Air Conditioning Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 A/C Hoses found

View related parts

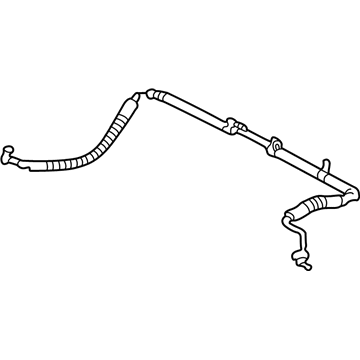

Chevrolet Trailblazer Evaporator Tube
Part Number: 15923988
$106.37 MSRP: $218.58
You Save: $112.21 (52%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-A/C Evaporator; A/C Refrigerant Liquid Hose; A/C Hose; Tube, A/C Evaporator
- Replaces: 15883408, 15125284
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2009 Chevrolet Trailblazer | Base, LS, LT, LTZ, North Face, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts

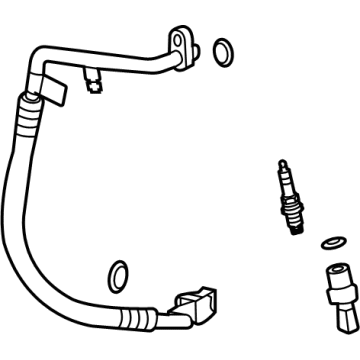

Chevrolet Trailblazer Evaporator Tube
Part Number: 60006693
$71.52 MSRP: $127.71
You Save: $56.19 (44%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Air Conditioner Refrigerant (Metal And Rubber Sections); Liquid Hose
- Replaced by: 60009855
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts

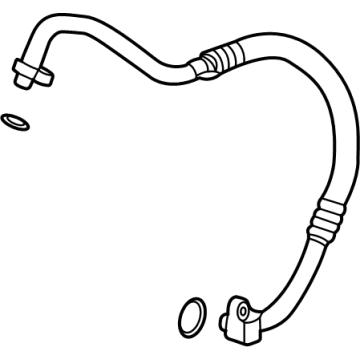

Chevrolet Trailblazer A/C Hoses
Part Number: 15165916
$174.05 MSRP: $308.35
You Save: $134.30 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: AC Hose; A/C Refrigerant Liquid Hose; A/C Hose; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 Chevrolet Trailblazer | LS, LT, LTZ, North Face | 6 Cyl 4.2 L GAS
View related parts

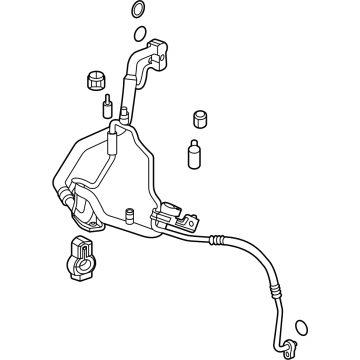

Chevrolet Trailblazer A/C Hoses
Part Number: 19432438
$244.02 MSRP: $444.47
You Save: $200.45 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Replaces: 10378754, 15883021, 15276426, 15165305
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chevrolet Trailblazer | Base, LS, LT, SS | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts

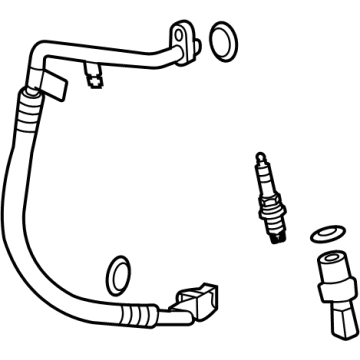

Chevrolet Trailblazer Discharge Hose
Part Number: 60008241
$59.38 MSRP: $106.04
You Save: $46.66 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-A/C Compressor; Front A/C Hose; Front A/C Line; Hose, A/C Refrigerant (Metal And Rubber Sections); Hose, A/C Compressor
- Replaces: 60001751
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, LS, LT, RS | 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer Discharge Hose
Part Number: 60008240
$61.16 MSRP: $109.22
You Save: $48.06 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-A/C Compressor; Front A/C Hose; Front A/C Line; Hose, A/C Refrigerant (Metal And Rubber Sections); Hose, A/C Compressor
- Replaces: 60001750
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | L, LS, LT | 3 Cyl 1.2 L GAS
View related parts
Chevrolet Trailblazer A/C Line
Part Number: 60008239
$38.12 MSRP: $68.08
You Save: $29.96 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-A/C Compressor; Suction Hose; Rear A/C Line; Hose, A/C Compressor
- Replaces: 60002045
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | L, LS, LT | 3 Cyl 1.2 L GAS
View related parts
Chevrolet Trailblazer A/C Line
Part Number: 60008238
$37.34 MSRP: $70.12
You Save: $32.78 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-A/C Compressor; Suction Hose; Rear A/C Line; Hose, A/C Compressor
- Replaces: 60002046
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, LS, LT, RS | 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer A/C Hoses
Part Number: 19213200
$175.48 MSRP: $360.62
You Save: $185.14 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Replaces: 15092551
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 Chevrolet Trailblazer | LS, LT, LTZ, North Face | 6 Cyl 4.2 L GAS
View related parts
Chevrolet Trailblazer A/C Hoses
Part Number: 25841573
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Compressor & Condenser Hose; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Replaces: 15884820, 15185275, 25815112
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2009 Chevrolet Trailblazer | Base, LS, LT, LTZ, North Face | 6 Cyl 4.2 L GAS
View related parts
Chevrolet Trailblazer A/C Hoses
Part Number: 15884821
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Replaces: 15825061, 15185276
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Chevrolet Trailblazer | LS, LT, North Face | 6 Cyl 4.2 L GAS
View related parts
Chevrolet Trailblazer A/C Hoses
Part Number: 15883022
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Replaces: 10378753, 15175349
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006 Chevrolet Trailblazer | LS, LT | 8 Cyl 5.3 L GAS
View related parts
Chevrolet Trailblazer A/C Hoses
Part Number: 15185275
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Hose & Tube Assembly
- Replaced by: 25841573
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Chevrolet Trailblazer | LS, LT, North Face | 6 Cyl 4.2 L GAS
View related parts
Chevrolet Trailblazer Evaporator Tube
Part Number: 15064837
Product Specifications
- Other Name: A/C Refrigerant Liquid Hose; A/C Hose
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002 Chevrolet Trailblazer | LS, LT, LTZ, North Face | 6 Cyl 4.2 L GAS
View related parts
Chevrolet Trailblazer Drain Tube
Part Number: 88986239
Product Specifications
- Other Name: Tube, Air Conditioner Evaporator Core Housing; Tube, A/C Evaporator Core Housing; Tube, Heater Core
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006 Chevrolet Trailblazer | LS, LT, SS | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS

Chevrolet Trailblazer A/C Hose

Our website offers an extensive catalog of genuine Chevrolet Trailblazer A/C Hose at unbeatable prices. Every OEM Chevrolet Trailblazer A/C Hose comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Chevrolet Trailblazer A/C Hose Parts Questions & Experts Answers

A/C Hoses
19213200
Q: How to service and repair the A/C Hose on Chevrolet Trailblazer?
A: The repair process for trailblazer ext and envoy xl hvac hose/line requires professionals to first recover refrigerant from the system using the halogen leak detector (J 39400-A). The halogen leak detector (J 39400-A) should be used to verify leakproof conditions in all component fittings. Release the compressor suction/discharge hose nut at the compressor's port as well as the compressor suction/discharge hose while uninstalling its sealing washers. You must detach the compressor suction hose nut from the accumulator while you disconnect the hose and o-ring seal from its position on the accumulator. Start by removing the bolt from the lift bracket and nut from the engine stud before removing the compressor discharge hose from the condenser and the nut from the compressor hose connection in the driver wheel opening. O-ring seals should be removed before plugging or capping all open connections. New o-ring seals need installation before connecting and tightening the compressor discharge hose to the condenser at a torque of 28 n.m (21 lb ft). Place the compressor hose on the driver wheel opening connector and torque its nut to 48 n.m (35 lb ft). First thread the compressor suction hose to the engine stud where you should tighten the nut to 48 n.m (35 lb ft) before finally connecting it to the engine lift bracket through a bolt torque to 48 n.m (35 lb ft). The compressor suction hose connects to the accumulator before installation of the suction hose nut which must be tightened to 48 n.m (35 lb ft). Secure the retaining nut with a torque of 33 n.m (24 lb ft) after you attach the compressor suction/discharge hose and install its washers. Empty the system of air and refill the a/c system.
