How to replace the vacuum brake booster on GMC Canyon?

Before working on the vacuum Brake Booster you need to take apart the master cylinder assembly plus the knee bolster trim panel. Disconnect the retaining clip around the Pushrod then remove both the clevis pin and Pushrod section from the Brake Pedal. Turn off the mounting nuts for the Brake Booster and take the unit out of the vehicle. Secure the Brake Booster by placing it at the bulkhead position then thread on its mounting nuts and tighten them to 20 nm (15 ft. Lbs.). Place the Pushrod back onto the Brake Pedal while sliding in the clevis pin and sealing it with the retaining clip. Put back the knee bolster trim and master cylinder assembly after installing everything else.

OEM GMC Canyon Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Brake Boosters found

View related parts

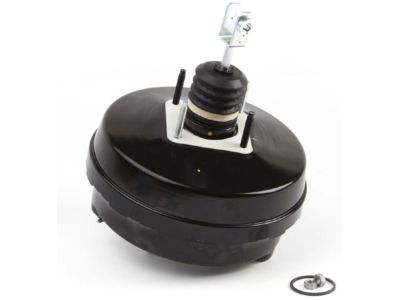

GMC Canyon Brake Booster Part Number: 84251010
$77.86 MSRP: $151.12
You Save: $73.26 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Kit-Power Brake (Vacuum); Booster Assembly; Booster Kit, Vacuum Power Brake
- Replaced by: 84749955
- Replaces: 23311737, 23234989
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2022 GMC Canyon | All Terrain, AT4, Base, Denali, Elevation, Elevation Standard, SL, SLE, SLT | 4 Cyl 2.5 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.6 L GAS
View related parts
GMC Canyon Brake Booster Part Number: 89040285
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2008 GMC Canyon | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS
View related parts
GMC Canyon Brake Booster Part Number: 19417218
$167.63 MSRP: $300.68
You Save: $133.05 (45%)
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster Assembly
- Replaced by: 19432800
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2012 GMC Canyon | SLE, SLT, WT | 4 Cyl 2.9 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS

GMC Canyon Brake Booster

Want to cut long-term maintenance and repair costs? Choose OEM Brake Booster. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Canyon parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Canyon Brake Booster includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Brake Booster in GMC Canyon vehicles plays an essential function of boosting up the brake system and diminishing the amount of force required from the driver. Located between the brake pedal and the master cylinder, it supports the force of the brakes by either vacuum or hydraulic means. The vacuum-operated boosters work on the basis of difference in vacuum pressure at the engine side and atmospheric pressure while hydraulic boosters use fluid pressure from power steering pump or electric pump. In the course of its production, GMC Canyon vehicles have used different designs of Brake Boosters: single and double diaphragm; the former can be in one or several sizes and with different colouring. In general, the booster with the larger diameter has all the more power assist to deliver but the double diaphragm booster can offer virtually as much assistance in less space. This versatility allows application specific brake pads for general use as well as for bespoke two-wheelers thereby providing the premier for each brake system.

GMC Canyon Brake Booster Parts and Q&A

Brake Booster
89040285
Q: How to replace the vacuum brake booster on GMC Canyon?
A:
Before working on the vacuum Brake Booster you need to take apart the master cylinder assembly plus the knee bolster trim panel. Disconnect the retaining clip around the Pushrod then remove both the clevis pin and Pushrod section from the Brake Pedal. Turn off the mounting nuts for the Brake Booster and take the unit out of the vehicle. Secure the Brake Booster by placing it at the bulkhead position then thread on its mounting nuts and tighten them to 20 nm (15 ft. Lbs.). Place the Pushrod back onto the Brake Pedal while sliding in the clevis pin and sealing it with the retaining clip. Put back the knee bolster trim and master cylinder assembly after installing everything else.
