Make sure this part fits

GM 15113135
Transmission Mount

2001-2010 GM

Customer Questions & Expert Answers (10)

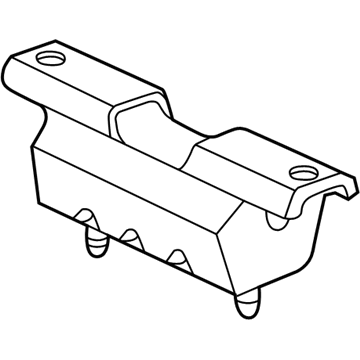

GM 15113135 Transmission Mount

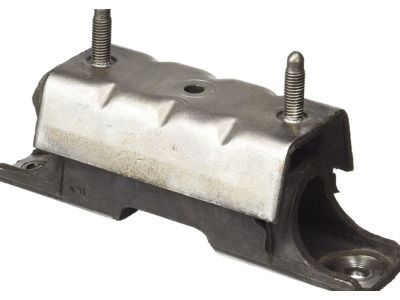

GM 15113135 Transmission Mount

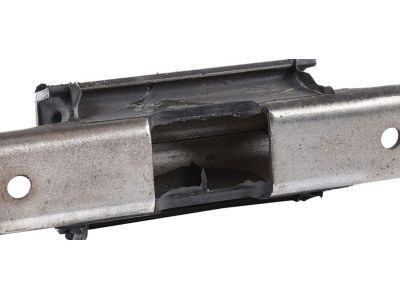

GM 15113135 Transmission Mount

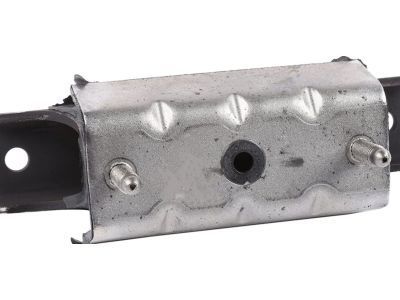

GM 15113135 Transmission Mount
GM 15113135 Transmission Mount
  • Part Description
    Mount, Transmission Mounting; Transfer Case Mount
  • Replaces
    15031704, 15068560
  • Manufacturer
    General Motors
Make sure this part fits
$94.67 MSRP: $161.17
You Save: $66.50 (42%)
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers
  • 2009 GMC Sierra 3500 HD Transmission Mount Diagram for 15113135
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 15113135

  • Product Specifications

    BrandGenuine GM
    Manufacturer Part Number15113135
    Part DescriptionMount, Transmission Mounting; Transfer Case Mount
    Item Dimensions8.4 x 6.1 x 10.2 inches
    Item Weight4.40 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces15031704, 15068560
    ManufacturerGeneral Motors
    SKU15113135
    WarrantyThis genuine GM part is guaranteed by GM's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2002-2006 Chevrolet Avalanche 2500Base, LS, LT8 Cyl 8.1 L GAS
    2001-2010 Chevrolet Silverado 2500 HDBase, LS, LT, LTZ, WT8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
    2007 Chevrolet Silverado 2500 HD ClassicLS, LT, WT8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
    2001-2006 Chevrolet Silverado 3500Base, LS, LT, WT8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
    2007 Chevrolet Silverado 3500 ClassicLS, LT, WT8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
    2007-2010 Chevrolet Silverado 3500 HDLT, LTZ, WT8 Cyl 6.6 L DIESEL
    2001-2006 Chevrolet Suburban 2500Base, LS, LT8 Cyl 8.1 L GAS
    2001-2010 GMC Sierra 2500 HDBase, SL, SLE, SLT, WT8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
    2007 GMC Sierra 2500 HD ClassicSL, SLE, SLT, WT8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
    2001-2006 GMC Sierra 3500Base, SL, SLE, SLT, WT8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
    View More

  • Customer Questions & Expert Answers

    Q:
    Is this 15113135 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 15113135 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Motor and Transmission Mount on a 4L80-E/4L85-E automatic transmission on Chevrolet Silverado 3500? Posted by Customer
    A:
    The start of 4l80-e/4l85-e automatic transmission transmission mount replacement requires vehicle elevation and support. You need a transmission jack to support the transmission while you remove the transmission mount by disassembling the retaining nut or nuts on the transmission support. You should first elevate the transmission to reduce the weight on the mount before breaking loose the bolts that connect the transmission mount either to the transmission or the transfer case adapter. Raise the transmission only to extract the transmission mount before removing it from the vehicle. Position the new transmission mount onto the vehicle before securing it with the adapter bolts leading to the transmission or transfer case. Tighten these bolts to 50 nm (37 ft. Lbs.). Next lower the transmission before you fix the transmission mount onto the transmission support retaining nut or nuts which should be tightened to 40 nm (30 ft. Lbs.). Follow the process by removing both the transmission jack and lowering the vehicle completely.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Motor and Transmission Mount on a 4L60-E/4L65-E/4L70-E automatic transmission on Chevrolet Silverado 3500 Classic? Posted by Customer
    A:
    The replacement of the transmission mount for a 4l60-e/4l65-e/4l70-e automatic transmission begins with vehicle lift support along with transmission support from a transmission jack. Start by removing both retention nuts that anchor the transmission mount to the support system before elevating the transmission away from the mount. The next step involves removing the transmission mount bolts attaching it to the transmission adapter and transfer case adapter before lifting the transmission enough to extract the mount. Place the transmission mount in its correct vehicle position while securing the adapter bolts to the transmission or transfer case at a torque of 50 nm (37 ft. Lbs.). Install and secure the transmission mount to the transmission support retaining nut or nuts at 40 nm (30 ft. Lbs.). Lower the vehicle after removing the transmission jack.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the torque specification for tightening the bolts for the 2002 Chevrolet Avalanche 2500? Posted by Customer
    A:
    Tighten the bolts to 47 Nm (35 ft. lbs.) for 4WD vehicles.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    How should the transmission be adjusted for mount removal for the 2006 Chevrolet Silverado 3500? Posted by Customer
    A:
    Use a suitable transmission jack to raise the transmission just enough to allow for the removal of the mount.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What is the torque specification for tightening the bolts on 2WD for the 2002 Chevrolet Suburban 2500? Posted by Customer
    A:
    50 Nm (37 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What should be done after removing the old transmission mount for the 2005 GMC Sierra 3500? Posted by Customer
    A:
    Install the new transmission mount, ensuring to install it to the transmission or transfer case adapter mounting bolts and tighten the bolts to 50 Nm (37 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What is the next step after removing the transmission mount for the 2006 GMC Sierra 3500? Posted by Customer
    A:
    For installation, begin by installing the rear transmission mount, ensuring to follow the fastener notice in service precautions.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What is the final step in the process for the 2005 GMC Sierra 3500? Posted by Customer
    A:
    Lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What should be done after supporting the transmission for the 2007 GMC Sierra 3500 Classic? Posted by Customer
    A:
    Remove the transmission mount from the transmission support retaining nut or nuts, and raise the transmission to relieve the weight on the mount.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM 15113135, Excellent Performance and Perfect Fitment

To ensure reliability, purchase GM part # 15113135 Transmission Mount. It is sometimes referred to as GM Motor And Transmission Mount. Choosing OEM parts is the optimal decision for guaranteeing superior quality and perfect performance. These components undergo stringent quality checks and are carefully constructed to comply with GM's factory specifications, ensuring a smooth installation process.

ChevyPartsGiant.com is a leading supplier of genuine GM parts such as GM 15113135 Transmission Mount. Our website boasts an extensive inventory of OEM GM parts, available at highly competitive prices in the market. Should you require any new genuine GM parts, rest assured we will deliver them swiftly and efficiently to your doorstep. Furthermore, all our parts come with the assurance of a manufacturer's warranty. For detailed Chevy parts information, click here.
Choose ChevyPartsGiant for discounted prices, exceptional service and fast delivery
