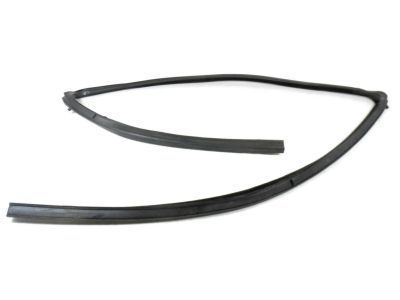

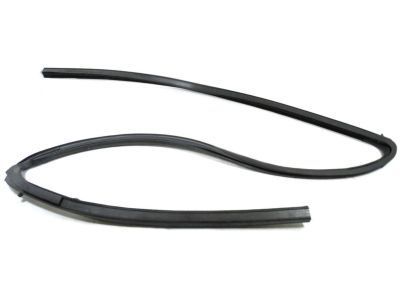

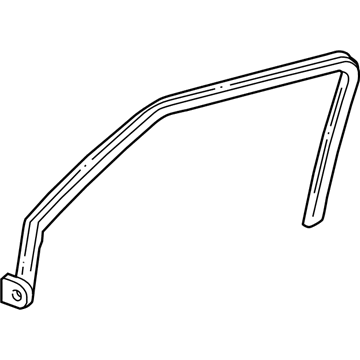

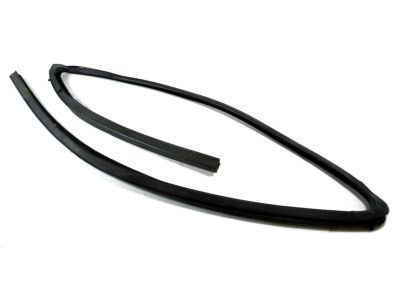

GM 15001926
Glass Run, Passenger Side

The first step to replace a front side door weather strip involves opening the door to remove the sill plate, hinge pillar trim pillar and windshield pillar molding. Disembark the weather strip from its channel placement at the rear portion of the side door. Putting in the new weather strip follows by placing it fully into the channel at the rear side door opening before reinstating the windshield pillar molding, hinge pillar trim pillar and sill plate. Examine the full door closing capacity together with the correct door sealing characteristics then.

First open the door and take out the sill plate together with hinge pillar along with windshield pillar molding before starting the front door weather strip replacement. You should remove the weather strip from its position inside the rear side door opening channel. Set the new weather strip into the rear side door opening channel before installing in order to position the windshield pillar molding followed by the hinge pillar and sill plate. Finish by inspecting the door closure pressure together with the proper connection between the door and opening.

Press the new outer sealing strip into place in the door channel.

First, remove the window.

Align the paint mark on the weatherstrip to the outer top center of the pinch weld flange, then push the weatherstrip onto the flange, starting from the top center of the endgate opening.

Starting at the corner, push the weatherstrip onto the flange.

Align the weatherstrip in the window frame flange and press it in until fully seated.

Reinstall the trim panel and close the door.
