How to Replace an A/C Hose in the Evaporator Hose Assembly on 2002 Cadillac DeVille?

Commence Evaporator hose assembly replacement by recovering refrigerant from the system with a halogen leak detector (J 39400-A). Start by detaching the Evaporator hose assembly from its connections at the accumulator and snap clamp followed by the right lower frame rail hold down. Remove the Evaporator hose nut first and then disconnect the low temperature sensor electrical connector. The installer should disconnect the Evaporator hose assembly from the Evaporator core followed by removing the upper filler panel. Next, disconnect the Evaporator hose assembly from the condenser by removing its retaining nut. To install the Evaporator hose assembly first bond it to the condenser then install the nut and tighten it to 20 n.m (15 lb ft). Use a torque tool to secure the Evaporator hose assembly nut at 24 n.m (18 lb ft) while it connects to the Evaporator core. Use the accumulator nut to join the accumulo r hose assembly together while tightening the nut to 20 n.m (15 lb ft). Feed the Evaporator hose assembly into the accumulator snap clamp then attach it to the right lower frame rail hold down. Reconnect the low temperature sensor electrical connector after you recharge the a/c system and use the halogen leak detector (J 39400-A) for leak testing on fittings where repairs or replacements were made. Complete the final step by installing the upper filler panel.

OEM 2002 Cadillac DeVille A/C Hose

Air Conditioning Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 A/C Hoses found

View related parts

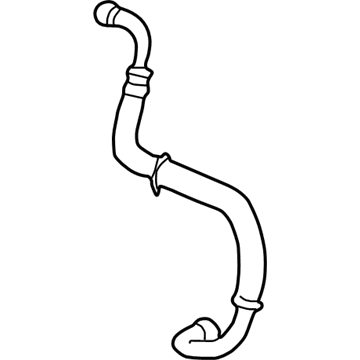

2002 Cadillac DeVille Discharge Hose
Part Number: 19169340
$112.28 MSRP: $230.72
You Save: $118.44 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly, A/C Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Hose, A/C Compressor
- Replaces: 25709380
- Item Weight: 0.90 Pounds
- Item Dimensions: 24.4 x 13.3 x 3.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19169340
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2002 Cadillac DeVille Submodels:
- Base, DHS, DTS | 8 Cyl 4.6 L GAS
View related parts
2002 Cadillac DeVille A/C Hoses
Part Number: 25725862
$98.19 MSRP: $183.22
You Save: $85.03 (47%)
ADD TO CART
Product Specifications
- Other Name: Hose, A/C Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Suction Hose
- Replaces: 25693376, 25700964, 25685413
- Item Weight: 2.20 Pounds
- Item Dimensions: 19.2 x 12.5 x 5.5 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25725862
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2002 Cadillac DeVille Submodels:
- Base, DHS, DTS | 8 Cyl 4.6 L GAS
View related parts
2002 Cadillac DeVille A/C Hoses
Part Number: 19244107
Product Specifications
- Other Name: Tube Assembly, A/C Evaporator; A/C Refrigerant Liquid Hose; A/C Hose; A/C Line; Tube, A/C Refrigerant (All Metal)
- Replaces: 25641463, 25674734
- Item Weight: 1.30 Pounds
- Item Dimensions: 47.5 x 30.2 x 10.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19244107
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2002 Cadillac DeVille Submodels:
- Base, Concours, d'Elegance, DHS, DTS | 8 Cyl 4.6 L GAS
View related parts
2002 Cadillac DeVille Discharge Hose
Part Number: 25759698
$112.17 MSRP: $201.20
You Save: $89.03 (45%)
Product Specifications
- Other Name: Hose Assembly-A/C Compressor; A/C Refrigerant Liquid Hose; A/C Hose; A/C Hoses; Suction Hose; Hose, A/C Compressor
- Item Weight: 1.70 Pounds
- Item Dimensions: 17.2 x 14.0 x 3.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25759698
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2002 Cadillac DeVille Submodels:
- Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
View related parts
2002 Cadillac DeVille A/C Hoses
Part Number: 25713423
Product Specifications
- Other Name: Hose, Air Conditioner Refrigerant (Metal And Rubber Sections); A/C Refrigerant Liquid Hose; A/C Hose; A/C Line; Liquid Line; Hose, A/C Refrigerant (Metal And Rubber Sections)
- Item Weight: 5.20 Pounds
- Item Dimensions: 49.4 x 10.3 x 10.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25713423
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2002 Cadillac DeVille Submodels:
- Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS

2002 Cadillac DeVille A/C Hose

With a comprehensive array of OEM 2002 Cadillac DeVille A/C Hose, from fuel pumps to door handles, our website is a one-stop-shop for your needs. All our genuine 2002 Cadillac DeVille A/C Hose are backed by the manufacturer's warranty and are offered at competitive prices in the market. Rest assured, you can shop with complete confidence.

2002 Cadillac DeVille Parts Questions & Experts Answers

Q: How to Replace an A/C Hose in the Evaporator Hose Assembly on 2002 Cadillac DeVille?
A: Commence Evaporator hose assembly replacement by recovering refrigerant from the system with a halogen leak detector (J 39400-A). Start by detaching the Evaporator hose assembly from its connections at the accumulator and snap clamp followed by the right lower frame rail hold down. Remove the Evaporator hose nut first and then disconnect the low temperature sensor electrical connector. The installer should disconnect the Evaporator hose assembly from the Evaporator core followed by removing the upper filler panel. Next, disconnect the Evaporator hose assembly from the condenser by removing its retaining nut. To install the Evaporator hose assembly first bond it to the condenser then install the nut and tighten it to 20 n.m (15 lb ft). Use a torque tool to secure the Evaporator hose assembly nut at 24 n.m (18 lb ft) while it connects to the Evaporator core. Use the accumulator nut to join the accumulo r hose assembly together while tightening the nut to 20 n.m (15 lb ft). Feed the Evaporator hose assembly into the accumulator snap clamp then attach it to the right lower frame rail hold down. Reconnect the low temperature sensor electrical connector after you recharge the a/c system and use the halogen leak detector (J 39400-A) for leak testing on fittings where repairs or replacements were made. Complete the final step by installing the upper filler panel.
