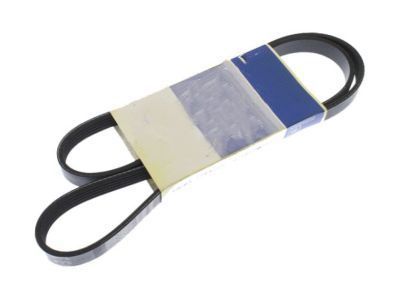

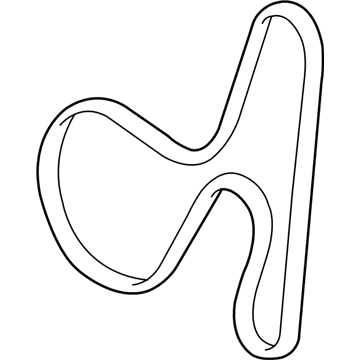

OEM 2005 Cadillac XLR Drive Belt

2005 Cadillac XLR Parts Questions & Experts Answers

• Q: How to Replace the Accessory Drive Belt on 2005 Cadillac XLR?

  A: The procedure to change an accessory Drive Belt starts with Drive Belt removal along with the Power Steering Reservoir. The accessory Drive Belt tensioner needs a wrench for its release and then you can take out the belt from the power steering pulley. The first step involves removing the upper bolt from the accessory Drive Belt tensioner followed by vehicle lift and support. From there you can remove the bottom bolt from the accessory Drive Belt tensioner damper before getting rid of the tensioner component. To install the accessory Drive Belt tensioner start by securely torquing position the tensioner bolts to 25 nm (18 ft. Lbs.). The technician should lower the vehicle before applying a wrench to the tensioner to rotate it based on the direction of belt feed until the belt reaches the power steering pulley. Complete the belt routing by positioning it correctly into all pulleys while tension exists then return the tensioner at a gradual pace to add force onto the Drive Belt. After removing the wrench you should reinstall the Power Steering Reservoir before putting on the Drive Belt. Next check the engine while monitoring proper motion of accessories and belt function.
