How to replace the upper intake manifold on Buick Park Avenue?

The upper Intake Manifold then needs to be unbolted from the top of the engine and removed. Remove the fuel injector sight shield, air cleaner intake duct, and the Spark Plug Wires from the right side of the engine, placing the wires aside. Next, take off the manifold vacuum source, depressurise the fuel lines and take out the Fuel Rail. Always remove the egr heat shield, the cable bracket to the cylinder head mounting bolt and plug, accelerator cable and throttle body support bracket. After that, undo the bolts of the upper Intake Manifold, then remove the upper Intake Manifold. For installation, reconnect the upper Intake Manifold in position and tighten the upper Intake Manifold bolts in sequence to 10 nm (89 inch lbs.). Install the throttle body support bracket, accelerator cable, cable bracket to cylinder head mounting bolt, egr heat shield, Fuel Rail, manifold vacuum source, and reconnect the spark plug wire (s) to the right side of engine. Lastly install the air cleaner intake duct and the fuel injector sight shield before reconnecting the negative cable of the battery.

OEM Buick Park Avenue Intake Manifold

Engine Intake Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Intake Manifolds found

View related parts

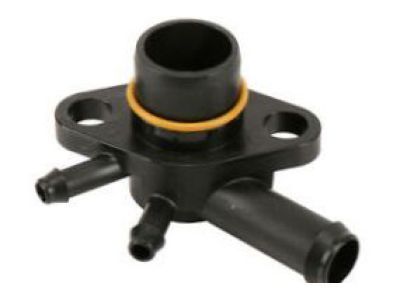

Buick Park Avenue Manifold
Part Number: 24503488
$6.93 MSRP: $11.44
You Save: $4.51 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold-Vacuum Source; Intake Manifold; Manifold, Intake Manifold Vacuum
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2005 Buick Park Avenue | Base, Ultra | 6 Cyl 3.8 L GAS
View related parts
Buick Park Avenue Intake Manifold
Part Number: 89017272
Product Specifications
- Other Name: Manifold Kit, Engine Fuel Intake Manifold; Intake Plenum
- Position: Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1996 Buick Park Avenue | Base | 6 Cyl 3.8 L GAS
View related parts
Buick Park Avenue Intake Manifold
Part Number: 17113044
Product Specifications
- Other Name: Manifold Kit, Engine Fuel Intake Manifold; Manifold
- Position: Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993-1994 Buick Park Avenue | Base | 6 Cyl 3.8 L GAS
View related parts
Buick Park Avenue Intake Manifold, Lower
Part Number: 24505729
Product Specifications
- Other Name: Manifold Assembly-Lower Intake; Manifold; Manifold, Engine Fuel Intake Manifold
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2005 Buick Park Avenue | Base, Ultra | 6 Cyl 3.8 L GAS
View related parts
Buick Park Avenue Intake Manifold
Part Number: 24502301
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold; Manifold
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1995 Buick Park Avenue | Base, Ultra | 6 Cyl 3.8 L GAS
View related parts
Buick Park Avenue Intake Manifold
Part Number: 24502025
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold; Manifold
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993-1994 Buick Park Avenue | Base | 6 Cyl 3.8 L GAS
View related parts
Buick Park Avenue Intake Manifold
Part Number: 19417844
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold
- Replaces: 24505728, 24508923
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-2005 Buick Park Avenue | Base, Ultra | 6 Cyl 3.8 L GAS

Buick Park Avenue Intake Manifold

Our website offers an extensive catalog of genuine Buick Park Avenue Intake Manifold at unbeatable prices. Every OEM Buick Park Avenue Intake Manifold comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Buick Park Avenue Intake Manifold Parts Questions & Experts Answers

Manifold
24503488
Q: How to replace the upper intake manifold on Buick Park Avenue?
A: The upper Intake Manifold then needs to be unbolted from the top of the engine and removed. Remove the fuel injector sight shield, air cleaner intake duct, and the Spark Plug Wires from the right side of the engine, placing the wires aside. Next, take off the manifold vacuum source, depressurise the fuel lines and take out the Fuel Rail. Always remove the egr heat shield, the cable bracket to the cylinder head mounting bolt and plug, accelerator cable and throttle body support bracket. After that, undo the bolts of the upper Intake Manifold, then remove the upper Intake Manifold. For installation, reconnect the upper Intake Manifold in position and tighten the upper Intake Manifold bolts in sequence to 10 nm (89 inch lbs.). Install the throttle body support bracket, accelerator cable, cable bracket to cylinder head mounting bolt, egr heat shield, Fuel Rail, manifold vacuum source, and reconnect the spark plug wire (s) to the right side of engine. Lastly install the air cleaner intake duct and the fuel injector sight shield before reconnecting the negative cable of the battery.
