How to Ensure Proper Installation of a Brake Booster on Buick Regal?

The power Brake Booster holder j22805-b should be your first tool to gather. Take off the left side instrument panel insulator and detach the stoplamp switch electrical connector. First take off the pushrod retainer and separate the Brake Booster pushrod from the brake pedal. Then remove the cross vehicle brace and fuel injector sight shield. Unplug the Brake Fluid Level Sensor using proper tools but keep brake pipes attached to the master cylinder. Unthread the two retaining nuts and properly place the master cylinder away. Unplug the vacuum Brake Booster check valve assembly and keep it together with the vacuum hose as you disconnect it. Unplug the throttle and cruise control wires from the Throttle Body before taking out the throttle bracket together with throttle and cruise control cables. Move the motor to its ideal position before pulling apart the EGR Valve wiring harness shield and its associated components. Take off the transmission fluid filler tube bracket retainer and secure the filler tube during work. Place the j 22805-b holder over the Brake Booster then affix it with master cylinder locking nuts. Gently unlock the booster from the cowl front and turn the booster counterclockwise with a flat-bladed tool while rotating the power Brake Booster holder (J 22805-B). Remove the vacuum Brake Booster. To install the new vacuum Brake Booster, place it on the cowl with locking flanges engaged and turn clockwise using a ratchet on the power Brake Booster holder (J 22805-B) without using any flat-bladed tools. After installing the power Brake Booster holder (J 22805-B) you can take it out of place. Place back the transmission fluid filler tube bracket keeper then adjust the filler tube and heat shield of EGR Valve wires. Secure the heat shield bolt and nut to 10 nm torque. Lower the engine back to its factory position and attach both engine mount struts on their left and right sides. After placing the throttle assembly in its correct position you can install the cables to the Throttle Body. Reattach the vacuum hose and check valve to the booster unit then place the master cylinder on top before tightening its retaining nuts to 25 nm force. Connect the brake fluid sensor power wire while also placing the fuel sight shield and cross vehicle frame support before joining the brake pushrod to the pedal with its clip. Complete the process by connecting the stoplamp switch and putting back the instrument panel cover.

OEM Buick Regal Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Brake Boosters found

View related parts

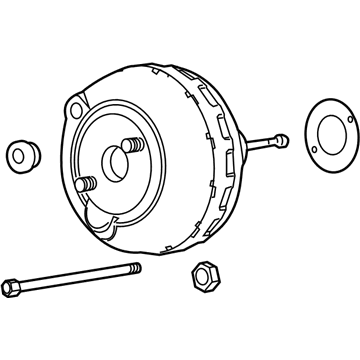

Buick Regal Brake Booster Part Number: 22908218
$809.87 MSRP: $1571.74
You Save: $761.87 (49%)
ADD TO CART
Product Specifications
- Other Name: Booster Kit, Vacuum Power Brake; Power Booster; Booster Assembly; Booster, Hydraulic Power Brake Booster
- Replaces: 13317102
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2012-2017 Buick Regal | Base, GS, Premium, Sport Touring | 4 Cyl 2.0 L FLEX, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV)
View related parts
Buick Regal Brake Booster Part Number: 13409893
$488.04 MSRP: $857.92
You Save: $369.88 (44%)
ADD TO CART
Product Specifications
- Other Name: Booster Kit-Power Brake (Vacuum); Power Booster; Booster; Booster Kit, Vacuum Power Brake
- Replaces: 13286441
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2011 Buick Regal | CXL | 4 Cyl 2.0 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Buick Regal Brake Booster Part Number: 18060109
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1987 Buick Regal | Base, GNX, Grand National, Limited, T-Type | 6 Cyl 3.8 L GAS, 6 Cyl 4.1 L GAS, 8 Cyl 5.0 L GAS
View related parts
Buick Regal Brake Booster Part Number: 88967260
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Power Booster; Booster Assembly
- Replaces: 18029876, 18042269
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2004 Buick Regal | 25th Anniversary Edition, GS, GSE, LS, LSE | 6 Cyl 3.8 L GAS
View related parts
Buick Regal Brake Booster Part Number: 25511548
Product Specifications
- Other Name: Booster; Booster, Hydraulic Power Brake Booster
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Buick Regal | Base, Limited | 6 Cyl 4.3 L DIESEL, 8 Cyl 5.7 L DIESEL
View related parts
Buick Regal Brake Booster Part Number: 19208172
Product Specifications
- Other Name: Booster Assembly, Power Brake (Remanufacture); Booster, Vacuum Power Brake
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1987 Buick Regal | Base, GNX, Grand National, Limited, T-Type | 6 Cyl 3.8 L GAS, 6 Cyl 4.1 L GAS, 8 Cyl 5.0 L GAS
View related parts
Buick Regal Brake Booster Part Number: 18060173
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Replaces: 18019236
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992 Buick Regal | Custom, Gran Sport, Limited | 6 Cyl 3.1 L GAS, 6 Cyl 3.8 L GAS
View related parts
Buick Regal Brake Booster Part Number: 18060142
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Replaces: 18016409
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1991 Buick Regal | Custom, Gran Sport, Limited | 6 Cyl 3.1 L GAS, 6 Cyl 3.8 L GAS
View related parts
Buick Regal Brake Booster Part Number: 18060099
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1989 Buick Regal | Custom, Gran Sport, Limited | 6 Cyl 2.8 L GAS, 6 Cyl 3.1 L GAS
View related parts
Buick Regal Brake Booster Part Number: 18044831
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Replaces: 18021311, 18060188
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993 Buick Regal | Custom, Gran Sport, Limited | 6 Cyl 3.1 L GAS, 6 Cyl 3.8 L GAS
View related parts
Buick Regal Brake Booster Part Number: 18043590
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Power Booster
- Replaces: 18060189, 18021553
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1996 Buick Regal | Custom, Gran Sport, Limited, Olympic Gold Edition | 6 Cyl 3.1 L GAS, 6 Cyl 3.8 L GAS
View related parts

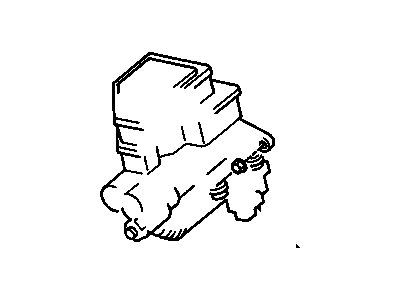

Buick Regal ABS Pump Assembly Part Number: 18038869
Product Specifications
- Other Name: Booster; ABS Pump And Motor Assembly; Cover Assembly; Booster, Hydraulic Power Brake Booster; Cylinder, Brake Master Cylinder; Cover Kit
- Replaces: 18017614, 18017169, 18019965, 18060098
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1991 Buick Regal | Custom, Gran Sport, Limited | 6 Cyl 2.8 L GAS, 6 Cyl 3.1 L GAS, 6 Cyl 3.8 L GAS

Buick Regal Brake Booster

Want to cut long-term maintenance and repair costs? Choose OEM Brake Booster. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Buick Regal parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Buick Regal Brake Booster includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Brake Booster in Buick Regal vehicles is an important component that minimizes the force applied by a driver to the brake pedal. The Brake Booster works under the utilization of a vacuum chamber where it takes the hydraulic pressure coming from the master cylinder and amplifies the force by as much as the driver applies when stepping on the brake pedal. There are two main types of boosters used in Regal vehicles: low pressure pump, vacuum-operated boosters and hydraulic boosters. Vacuum boosters work on the basic of engine vacuum and atmospheric pressure while hydraulic boosters work on the pressure of the hydraulic fluid to apply brakes. Booster size and its type also influence the amount of power assist that is given with larger diameters providing more help. For someone who is restoring a classic car to as close to the original as possible or someone building a custom hot rod, a performance brake booster or a power brake conversion kit can give power brakes for a luxury feel of their car.

Buick Regal Brake Booster Parts and Q&A

Brake Booster
88967260
Q: How to Ensure Proper Installation of a Brake Booster on Buick Regal?
A:
The power Brake Booster holder j22805-b should be your first tool to gather. Take off the left side instrument panel insulator and detach the stoplamp switch electrical connector. First take off the pushrod retainer and separate the Brake Booster pushrod from the brake pedal. Then remove the cross vehicle brace and fuel injector sight shield. Unplug the Brake Fluid Level Sensor using proper tools but keep brake pipes attached to the master cylinder. Unthread the two retaining nuts and properly place the master cylinder away. Unplug the vacuum Brake Booster check valve assembly and keep it together with the vacuum hose as you disconnect it. Unplug the throttle and cruise control wires from the Throttle Body before taking out the throttle bracket together with throttle and cruise control cables. Move the motor to its ideal position before pulling apart the EGR Valve wiring harness shield and its associated components. Take off the transmission fluid filler tube bracket retainer and secure the filler tube during work. Place the j 22805-b holder over the Brake Booster then affix it with master cylinder locking nuts. Gently unlock the booster from the cowl front and turn the booster counterclockwise with a flat-bladed tool while rotating the power Brake Booster holder (J 22805-B). Remove the vacuum Brake Booster. To install the new vacuum Brake Booster, place it on the cowl with locking flanges engaged and turn clockwise using a ratchet on the power Brake Booster holder (J 22805-B) without using any flat-bladed tools. After installing the power Brake Booster holder (J 22805-B) you can take it out of place. Place back the transmission fluid filler tube bracket keeper then adjust the filler tube and heat shield of EGR Valve wires. Secure the heat shield bolt and nut to 10 nm torque. Lower the engine back to its factory position and attach both engine mount struts on their left and right sides. After placing the throttle assembly in its correct position you can install the cables to the Throttle Body. Reattach the vacuum hose and check valve to the booster unit then place the master cylinder on top before tightening its retaining nuts to 25 nm force. Connect the brake fluid sensor power wire while also placing the fuel sight shield and cross vehicle frame support before joining the brake pushrod to the pedal with its clip. Complete the process by connecting the stoplamp switch and putting back the instrument panel cover.
