OEM Cadillac Leaf Spring

Cadillac Leaf Spring Parts Questions & Experts Answers

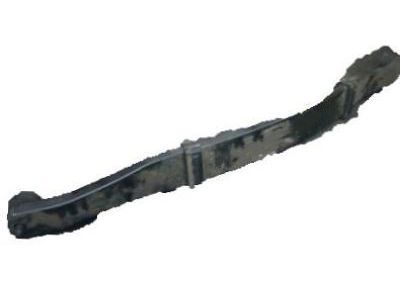

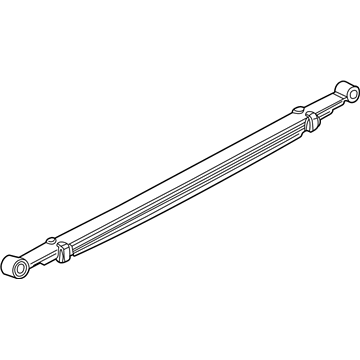

• Spring, Rear
  15233391
  Q: How to replace the rear transverse leaf spring on Cadillac XLR?

  A: Start the process by elevating and supporting the vehicle followed by removing the wheel assemblies from the tires. Measure the rear spring adjuster bolt gap when changing the transverse spring to later use for vehicle trim height adjustments during setup. Pay attention to avoid scratching the transverse spring as you work. First use the transverse spring compressor model j 33432-a to compress the transverse spring before removing one lower Control Arm then transverse spring bolts along with their retainers and disposing of the old bolts. Handle your transverse spring with care when you remove it from the vehicle along with already removing the compressor when completing a new spring installation. The transverse spring compressor (J 33432-A) should be placed onto the transverse spring before installing the spring assembly onto the crossmember. New transverse spring retainer bolts need installation at crossmember locations before torquing up to 62 nm (46 ft. Lbs.). Reinstall the lower Control Arm to the Rear Crossmember and afterward remove the transverse spring compressor (J 33432-A) for tire and wheel assembly installation. Conduct rear trim height adjustment following replacement of the rear spring before having the vehicle undergo rear wheel alignment.
