OEM Cadillac Seville Antenna Cable

Cadillac Seville Antenna Cable Parts and Q&A

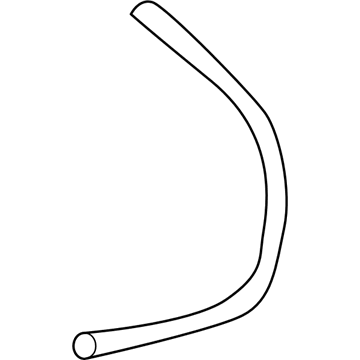

• Antenna Cable
  9392274
  Q: How to Replace and Repair an Antenna Cable on Cadillac Seville?

  A:

  The procedure to change the Antenna Cable starts by removing the Center Console, after which technicians must remove the left front seat and left front carpet retainer, left rear carpet retainer, center pillar garnish molding, rear seat back, and left rear sail panel. The radio antenna extension cable must be detached from its connector on the Antenna Cable. Then pull up both front and rear carpet on the left side until the vehicle wiring harness becomes visible. Locate the area near the rear seat of the vehicle harness conduit cover and carefully cut the antenna coaxial cable while keeping the radio Antenna Cable untouched. Cable the radio antenna coaxial cable from the antenna module before detaching it from wiring harness and cable clips found above the rear shelf panel and cut the end of the radio Antenna Cable at the rear shelf area harness. The installation requires guiding the new coaxial Antenna Cable through the wiring harness conduit to reach the rear seat area then you need to secure the vehicle harness conduit cover into place. Place the carpet aside before routing the Antenna Cable to the antenna module where you will connect it to the module. Reinstall the radio Antenna Cable by connecting it to the antenna module wiring harness and clips while directing the cable to stay clear of the rear seat back and bottom installation area. Attach the Antenna Cable to the electrical wiring harness in the rear seal area with a tie strap or tape before linking the radio Antenna Cable with the radio extension cable. Additionally, you will need to replace the Center Console followed by the left front seat and left rear sail panel installation and center pillar garnish molding and left front carpet retainer and left rear carpet retainer and finally the rear seat back.
