How to replace the negative battery cable on Cadillac STS?

Start by disconnecting the negative Battery Cable and removing both the left sight shield from the engine compartment and the engine sight shield. Start by disconnecting the instrument panel (I/P) harness electrical connector from the battery current sensor and by removing the cable retaining clip from the shock tower stud. You need to remove two rpm: disconnect the negative Battery Cable bolt on the shock tower and separate the instrument panel harness from the negative Battery Cable and remove engine bracket cable retaining clips. Unfasten the bolt holding the negative Battery Cable to the engine block before removing the cable from the location. When positioning the negative Battery Cable on the engine install the engine block bolt and tighten it to a torque of 25 n.m (18 lb ft). Secure the cable retaining clips at two points between the engine bracket and the instrument panel harness connector at the negative Battery Cable. Install the bolt holding the negative cable to the shock tower while using a torque wrench that reaches 10 n.m (89 lb in) then fix the retaining clip to the shock tower stud and interface the i/p harness electrical connector to the battery current sensor. Finish installation by adding the engine sight shield and left side engine compartment sight shield and replugging the negative Battery Cable into the battery.

OEM Cadillac STS Battery Cable

Car Battery Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Battery Cables found

View related parts

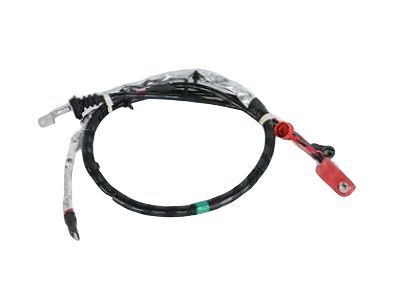

Cadillac STS Positive Cable Part Number: 25855489
$28.74 MSRP: $212.40
You Save: $183.66 (87%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 25781891
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008 Cadillac STS | Base, Platinum | 8 Cyl 4.6 L GAS
View related parts

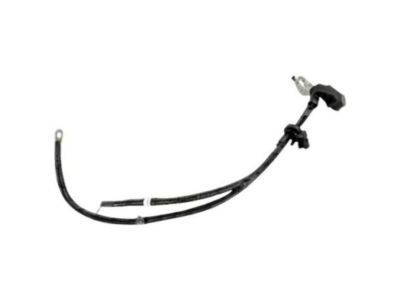

Cadillac STS Negative Cable Part Number: 25930836
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
- Replaces: 25788168
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008 Cadillac STS | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

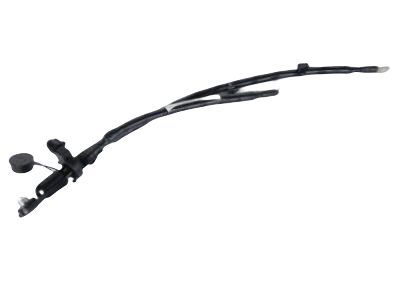

Cadillac STS Positive Cable Part Number: 25831922
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2011 Cadillac STS | Base, Platinum | 6 Cyl 3.6 L GAS
View related parts

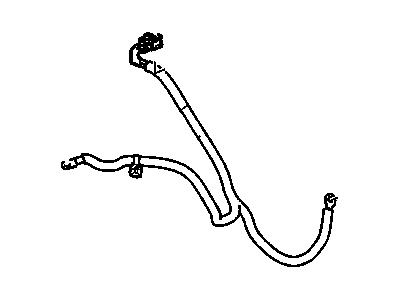

Cadillac STS Positive Cable Part Number: 25774870
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 25774236
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Cadillac STS | Base | 6 Cyl 3.6 L GAS
View related parts

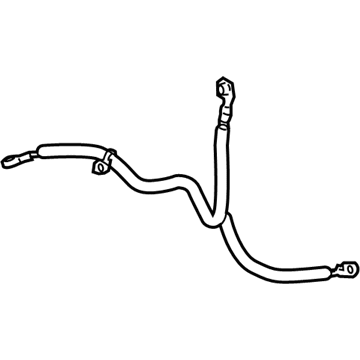

Cadillac STS Negative Cable Part Number: 22786599
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
- Replaces: 25831926
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2011 Cadillac STS | Base, Platinum | 6 Cyl 3.6 L GAS
View related parts

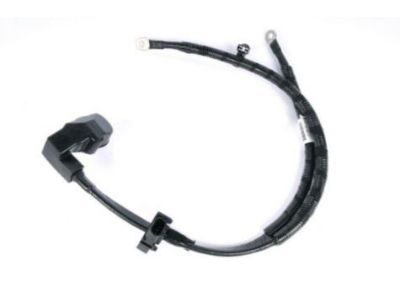

Cadillac STS Negative Cable Part Number: 15869245
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
- Replaces: 10383925
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Cadillac STS | Base, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

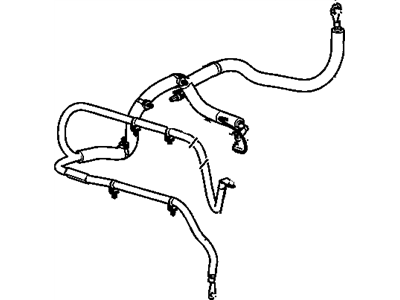

Cadillac STS Positive Cable Part Number: 15923083
Product Specifications
- Other Name: Cable; Battery Cables; Cable, Battery(Positive)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Cadillac STS | Base | 6 Cyl 3.6 L GAS
View related parts
Cadillac STS Negative Cable Part Number: 15826099
Product Specifications
- Other Name: Cable Assembly-Battery Negative
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008 Cadillac STS | Base, Platinum | 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Negative Cable Part Number: 25930835
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Cable, Battery Ground(Negative)
- Replaces: 25788167
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008 Cadillac STS | Base | 6 Cyl 3.6 L GAS
View related parts
Cadillac STS Positive Cable Part Number: 25834438
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 25799865, 25788946
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008 Cadillac STS | Base, Platinum | 6 Cyl 3.6 L GAS
View related parts
Cadillac STS Negative Cable Part Number: 25831929
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Cadillac STS | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Positive Cable Part Number: 25831921
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 25788166
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Cadillac STS | Base, Platinum | 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Positive Cable Part Number: 20767123
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 25788165
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Cadillac STS | V | 8 Cyl 4.4 L GAS
View related parts
Cadillac STS Positive Cable Part Number: 15885749
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 10385061
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Cadillac STS | V | 8 Cyl 4.4 L GAS
View related parts
Cadillac STS Negative Cable Part Number: 15869246
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
- Replaces: 25774235
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2008 Cadillac STS | Base, Platinum | 6 Cyl 3.6 L GAS
View related parts
Cadillac STS Positive Cable Part Number: 15869243
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 10383924
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Cadillac STS | Base | 8 Cyl 4.6 L GAS

Cadillac STS Battery Cable

Want to cut long-term maintenance and repair costs? Choose OEM Battery Cable. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac STS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac STS Battery Cable includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Battery Cable is one of the parts that define the strength and operation of Cadillac cars especially the STS series. Intended for the purpose of carrying an electrical current from the battery to necessary applications such as starting and ignition of the car engine, battery cables are produced to augment the running of the starter and ignition of the vehicle's engine. As time passes, the Battery Cable can degrade in effectiveness due to the effects of wear on the cables and corrosion, which is why it is essential to inspect the cables' health at regular intervals to ensure that the vehicle is functioning as intended and to minimize any sudden malfunctions. It is noteworthy to cite that the Cadillac STS has both positive and negative battery cables and its power circuit is a closed type that has got higher efficiency and safety all together. Compatibility with most of the STS models guarantees the drivers an opportunity to count on the Battery Cable while in standard V6 or while driving the STS-V that features the super charged Northstar engine. However, the Battery Cable differs from the analogues in the automotive market by a high degree of protection against environmental factors, as well as durability of its construction. Besides, features like high conductivity and low voltage drop make the Battery Cable remarkable to people, who need to make significant improvements in their vehicle's electrical system. Therefore, the Battery Cable is more than just a working component; it is a great representation of Cadillac's quality promise to every STS by continuously working to its utmost capacity while enhancing driver protection and vehicle performance.

Cadillac STS Battery Cable Parts Questions & Experts Answers

Negative Cable
15869245
Q: How to replace the negative battery cable on Cadillac STS?
A:
Start by disconnecting the negative Battery Cable and removing both the left sight shield from the engine compartment and the engine sight shield. Start by disconnecting the instrument panel (I/P) harness electrical connector from the battery current sensor and by removing the cable retaining clip from the shock tower stud. You need to remove two rpm: disconnect the negative Battery Cable bolt on the shock tower and separate the instrument panel harness from the negative Battery Cable and remove engine bracket cable retaining clips. Unfasten the bolt holding the negative Battery Cable to the engine block before removing the cable from the location. When positioning the negative Battery Cable on the engine install the engine block bolt and tighten it to a torque of 25 n.m (18 lb ft). Secure the cable retaining clips at two points between the engine bracket and the instrument panel harness connector at the negative Battery Cable. Install the bolt holding the negative cable to the shock tower while using a torque wrench that reaches 10 n.m (89 lb in) then fix the retaining clip to the shock tower stud and interface the i/p harness electrical connector to the battery current sensor. Finish installation by adding the engine sight shield and left side engine compartment sight shield and replugging the negative Battery Cable into the battery.
