OEM Chevrolet Classic Emblem

Chevrolet Classic Emblem Parts Questions & Experts Answers

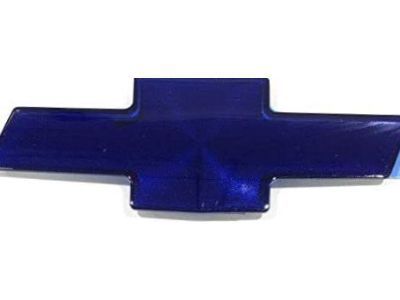

• Emblem, Blue, Rear
  22690030
  Q: How to replace the emblem/nameplate on the rear compartment lid on Chevrolet Classic?

  A: To install the nameplate and emblem go through this process you need a Heat Gun model (J 25070) & 3M(TM) P/N 07501. Use tape to shield the mounting area and draw installation marks at the start of the process. Place the Heat Gun nozzle 152mm (6in) from the surface at a circular motion to heat the emblem/nameplate for 30 seconds. A flat plastic tool helps you take the emblem/nameplate off from its panel. Clean body panels requires the 3M(TM) Scotch Brite molding adhesive remover disk (P/N 07501) but use a VMP naptha dipped cloth or 50/50 isopropanol water mix for plastic panels. Use the same lint-free cloth with solution to clean the installation area until it becomes dry. When the install marks are missing place surface tape and install following CHEVY BOW TIE, V6, and MALIBU LS emblem or nameplate sizes. Heat the mounting surface to 80-105°F using a Heat Gun (J 25070) when necessary until it reaches 85-90°F and maintain this temperature range for the emblem/nameplate. You need to place the emblem/nameplate onto the marked spot by carefully removing its protective liner and sticking it down firmly with uniform pressure. To finish apply the protective tape from the mounting surface.
