How to replace the left automatic Motor and Transmission Mount on Chevrolet Classic?

Start by lifting the vehicle and supporting it before performing any work. First step is to take off the left front wheel with its tire then remove the left front splash shield. The transaxle needs support from a jackstand combined with a wooden block before disconnecting the through bolt on the transmission mount. The rear upper mount bolt should remain inside while you unthread it before you remove all three other bolts which will let you detach the mount. It's time to install the rear upper mount on the new mount by placing it properly before beginning installation of the rear upper bolt into the threaded area. Slowly thread in the rest of the bolts before hand-tightening all four mount bolts to measure 66 nm (49 ft. Lbs.). After mounting the transmission mount with its through bolt you must torque it to 55 nm (41 ft. Lbs.). After removing the jackstand and wood block you can reinstall the left splash shield followed by reattachment of the left tire and wheel assembly. Finally, lower the vehicle.

OEM Chevrolet Classic Motor And Transmission Mount

Motor and Trans Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Motor And Transmission Mounts found

View related parts

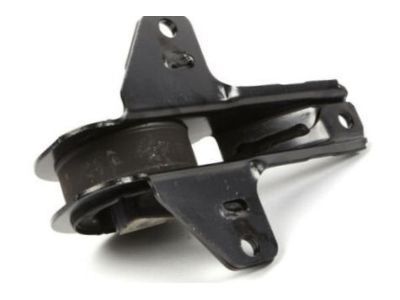

Chevrolet Classic Transmission Mount, Rear
Part Number: 22624648
$38.77 MSRP: $60.73
You Save: $21.96 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount Assembly-Transmission Rear; Transfer Case Mount; Mount, Transmission Mounting
- Position: Rear
- Replaces: 22605358, 22657806, 22605206, 22605359, 22657805
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Chevrolet Classic | Base, LS | 4 Cyl 2.2 L GAS
View related parts

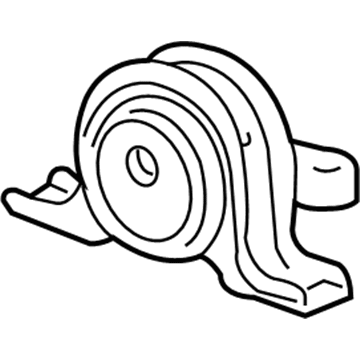

Chevrolet Classic Transmission Mount
Part Number: 22621543
$44.62
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount, Transmission Mounting; Transfer Case Mount
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Chevrolet Classic | Base, LS | 4 Cyl 2.2 L GAS
View related parts

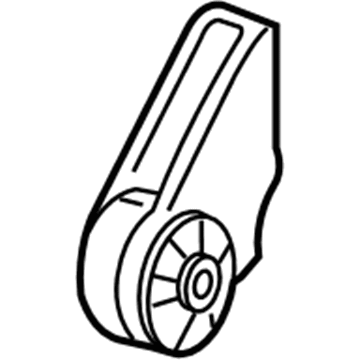

Chevrolet Classic Transmission Mount
Part Number: 22590932
Product Specifications
- Other Name: Trans Mount; Transfer Case Mount; Mount, Transmission Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Chevrolet Classic | Base, LS | 4 Cyl 2.2 L GAS
View related parts

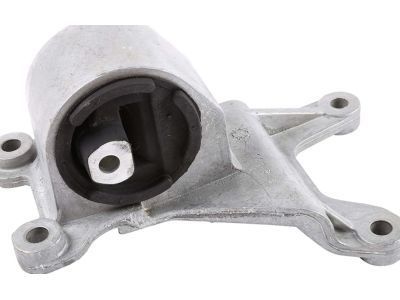

Chevrolet Classic Motor Mount
Part Number: 22708204
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Bracket; Engine Mount; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Replaces: 22676270, 22696931
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Chevrolet Classic | Base, LS | 4 Cyl 2.2 L GAS

Chevrolet Classic Motor And Transmission Mount

Our website offers an extensive catalog of genuine Chevrolet Classic Motor And Transmission Mount at unbeatable prices. Every OEM Chevrolet Classic Motor And Transmission Mount comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Chevrolet Classic Motor And Transmission Mount Parts Questions & Experts Answers

Transmission Mount, Rear
22624648
Q: How to replace the left automatic Motor and Transmission Mount on Chevrolet Classic?
A: Start by lifting the vehicle and supporting it before performing any work. First step is to take off the left front wheel with its tire then remove the left front splash shield. The transaxle needs support from a jackstand combined with a wooden block before disconnecting the through bolt on the transmission mount. The rear upper mount bolt should remain inside while you unthread it before you remove all three other bolts which will let you detach the mount. It's time to install the rear upper mount on the new mount by placing it properly before beginning installation of the rear upper bolt into the threaded area. Slowly thread in the rest of the bolts before hand-tightening all four mount bolts to measure 66 nm (49 ft. Lbs.). After mounting the transmission mount with its through bolt you must torque it to 55 nm (41 ft. Lbs.). After removing the jackstand and wood block you can reinstall the left splash shield followed by reattachment of the left tire and wheel assembly. Finally, lower the vehicle.
