How to replace the Dipstick Tube on Chevrolet Express 2500?

The first step involves removing the engine cover along with the coolant recovery reservoir bolt then setting the reservoir to the side. Start by unfastening the screw which joins the transmission fluid fill tube to the oil fill tube lower support and by taking out the oil level indicator and the screw. Cleansing the old sealer from both tube sections is required before separating the top section of the oil level indicator tube from its bottom component. Remove the oil level indicator tube bolt while extracting the tube from the engine by twisting it initially then clean both the engine block and the oil level indicator tube from the old sealer. The installation process begins by using gm p/n 12346004 (Canadian P/N 10953480) or equivalent silicone-based sealant which should be applied around the oil level indicator tube 13 mm (0.5 inch) below the tube bead. Afterward, the technician can insert the tube into the engine block and rotate it into the correct position. Seal the upper oil level indicator tube around its junction point to the lower half before fitting the two pieces together. Install and tighten the bolting mechanism of the oil level indicator tube and transmission fluid fill tube to the oil fill tube lower support with a torque setting of 5 nm (44 inch lbs.). Reinstall the oil level indicator after which you should secure the engine cover and position the coolant recovery reservoir before installing the bolt to finish.

OEM Chevrolet Express 2500 Dipstick Tube

Oil Dipstick Tube

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Dipstick Tubes found

View related parts

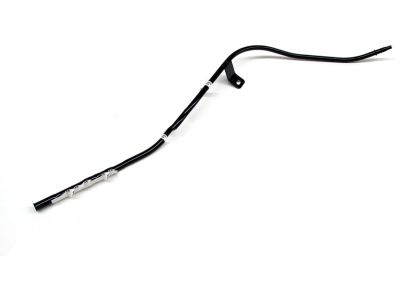

Chevrolet Express 2500 Oil Tube
Part Number: 12552442
$34.37 MSRP: $47.06
You Save: $12.69 (27%)
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Oil Dipstick Tube; Tube; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2006 Chevrolet Express 2500 | Base, LS | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Express 2500 Dipstick Tube
Part Number: 12684848
$36.88 MSRP: $57.78
You Save: $20.90 (37%)
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Oil Dipstick Tube; Oil Tube; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Express 2500 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Express 2500 Dipstick Tube
Part Number: 12609756
$16.78 MSRP: $27.65
You Save: $10.87 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube, Engine Oil Level; Oil Dipstick Tube; Oil Tube
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2020 Chevrolet Express 2500 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Express 2500 Oil Tube
Part Number: 12609269
$19.02 MSRP: $31.34
You Save: $12.32 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube, Oil Level Indicator; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2020 Chevrolet Express 2500 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Express 2500 Oil Tube
Part Number: 12604222
$58.15 MSRP: $91.08
You Save: $32.93 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Tube, Engine Oil Level
- Replaces: 12578054, 12574389
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 Chevrolet Express 2500 | Base, LS, LT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Express 2500 Oil Tube
Part Number: 12603193
$42.81 MSRP: $67.06
You Save: $24.25 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Chevrolet Express 2500 | Base, LS, LT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Express 2500 Oil Tube
Part Number: 12567456
$45.65 MSRP: $77.72
You Save: $32.07 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet Express 2500 | Base, LS | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Express 2500 Oil Tube
Part Number: 97365698
$42.08 MSRP: $65.91
You Save: $23.83 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chevrolet Express 2500 | Base, LS, LT | 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 2500 Dipstick Tube
Part Number: 24585518
$72.78 MSRP: $114.01
You Save: $41.23 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Oil Dipstick Tube; Oil Tube; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2022 Chevrolet Express 2500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL
View related parts
Chevrolet Express 2500 Oil Tube
Part Number: 12698584
$12.22 MSRP: $19.14
You Save: $6.92 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Express 2500 | Base, LS, LT | 8 Cyl 6.6 L GAS
View related parts
Chevrolet Express 2500 Oil Tube
Part Number: 12678814
$29.14 MSRP: $48.00
You Save: $18.86 (40%)
ADD TO CART
Product Specifications
- Other Name: Tube, Engine Oil Level
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Express 2500 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Express 2500 Oil Tube
Part Number: 12631778
$49.28 MSRP: $77.19
You Save: $27.91 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Chevrolet Express 2500 | Base | 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 2500 Oil Tube
Part Number: 12574388
$54.66 MSRP: $85.63
You Save: $30.97 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003 Chevrolet Express 2500 | Base, LS | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Express 2500 Tube
Part Number: 12567873
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Oil Dipstick Tube; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 2500 | Base, LS | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS
View related parts
Chevrolet Express 2500 Tube
Part Number: 12562433
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Oil Dipstick Tube; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2002 Chevrolet Express 2500 | Base, LS | 8 Cyl 6.5 L DIESEL
View related parts
Chevrolet Express 2500 Tube
Part Number: 12562023
Product Specifications
- Other Name: Tube, Engine Oil Level; Oil Dipstick Tube
- Replaces: 12552890
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 2500 | Base, LS | 8 Cyl 6.5 L DIESEL
View related parts
Chevrolet Express 2500 Tube
Part Number: 12552891
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Oil Dipstick Tube; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1998 Chevrolet Express 2500 | Base, LS | 8 Cyl 6.5 L DIESEL
View related parts
Chevrolet Express 2500 Tube
Part Number: 12550036
Product Specifications
- Other Name: Tube Assembly-Oil Level Indicator; Oil Dipstick Tube; Tube, Engine Oil Level
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 2500 | Base, LS | 6 Cyl 4.3 L GAS

Chevrolet Express 2500 Dipstick Tube

Our website offers an extensive catalog of genuine Chevrolet Express 2500 Dipstick Tube at unbeatable prices. Every OEM Chevrolet Express 2500 Dipstick Tube comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Chevrolet Express 2500 Dipstick Tube Parts Questions & Experts Answers

Oil Tube
12567456
Q: How to replace the Dipstick Tube on Chevrolet Express 2500?
A: The first step involves removing the engine cover along with the coolant recovery reservoir bolt then setting the reservoir to the side. Start by unfastening the screw which joins the transmission fluid fill tube to the oil fill tube lower support and by taking out the oil level indicator and the screw. Cleansing the old sealer from both tube sections is required before separating the top section of the oil level indicator tube from its bottom component. Remove the oil level indicator tube bolt while extracting the tube from the engine by twisting it initially then clean both the engine block and the oil level indicator tube from the old sealer. The installation process begins by using gm p/n 12346004 (Canadian P/N 10953480) or equivalent silicone-based sealant which should be applied around the oil level indicator tube 13 mm (0.5 inch) below the tube bead. Afterward, the technician can insert the tube into the engine block and rotate it into the correct position. Seal the upper oil level indicator tube around its junction point to the lower half before fitting the two pieces together. Install and tighten the bolting mechanism of the oil level indicator tube and transmission fluid fill tube to the oil fill tube lower support with a torque setting of 5 nm (44 inch lbs.). Reinstall the oil level indicator after which you should secure the engine cover and position the coolant recovery reservoir before installing the bolt to finish.
