How to replace the front air bag sensor on GMC Safari?

In order to replace the inflatable restraint front end discriminating sensor, you would have to disable the SIR system. Lift the vehicle and disconnect the harness connector at the top frame. Take out the bolt and remove the sensor from the cradle. Clean the mounting location; next, install the new sensor horizontally on top of the frame while the arrow in the sensor is aimed towards the front part of the vehicle. Fasten the sensor with the mounting fasteners, tightening them to 6.5 N.m (58 lb in). If the first fastener (rivet) was not correctly installed, remove and trash the fastener, then, reinstall the fastener (introducing a new rivet). If the sensor mounting holes or fasteners have been damaged, remove the improperly inserted rivet, enlarge the mounting holes in the lower radiator support to 9.0mm (0.35 in), insert and properly seat the rivnut, and install the screw to the sensor, and tighten fasteners to 6.5 N.m (58 lb in). Lastly, hook up the harness connector to the sensor, bring the vehicle down, and enable the SIR system.

OEM GMC Safari Air Bag Sensor

Air Bag Impact Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Air Bag Sensors found

View related parts

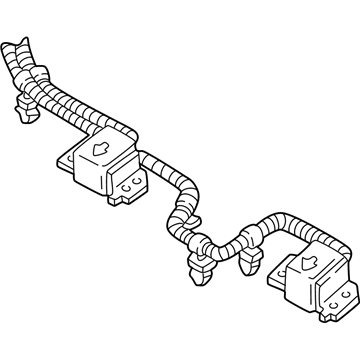

GMC Safari Air Bag Sensor Part Number: 16246305
$312.72 MSRP: $467.54
You Save: $154.82 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Inflatable Restraint System; Front Impact Sensor; Front Sensor; Sensor
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 GMC Safari | Base, SL, SLE, SLT | 6 Cyl 4.3 L GAS
View related parts

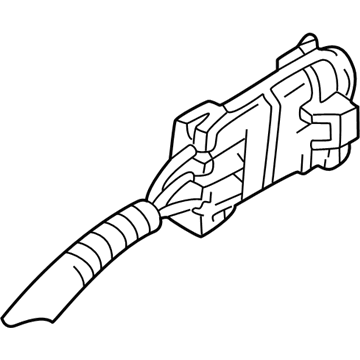

GMC Safari Air Bag Sensor Part Number: 16203545
Product Specifications
- Other Name: Sensor, Inflatable Restraint System; Impact Sensor; Front Sensor; Passenger Compartment Sensor; Arming Sensor; Sensor
- Position: Front
- Replaces: 16189815
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1999 GMC Safari | Base, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS
View related parts
GMC Safari Sensor, Front Part Number: 16218895
Product Specifications
- Other Name: Sensor Assembly-Inflatable Restraint Front End Discriminating; Air Bag Sensor; Sensor, Inflatable Restraint System
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995 GMC Safari | Base, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS
View related parts
GMC Safari Front Sensor Part Number: 16173515
Product Specifications
- Other Name: Sensor, Inflatable Restraint System; Air Bag Sensor; Passenger Compartment Sensor; Sensor
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993-1994 GMC Safari | Base, GT, SLE, SLT, SLX | 6 Cyl 4.3 L GAS
View related parts
GMC Safari Arming Sensor Part Number: 16168875
Product Specifications
- Other Name: Sensor, Inflatable Restraint System; Air Bag Sensor; Sensor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993-1995 GMC Safari | Base, GT, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS

GMC Safari Air Bag Sensor

Want to cut long-term maintenance and repair costs? Choose OEM Air Bag Sensor. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Safari parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Safari Air Bag Sensor includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Air Bag Sensor is an important safety feature that consist of sensors which are responsible for detecting impacts to help in the deployment of the air bags in an accident and increase the safety of all the people in the car. Being a vital component of a safety system of a vehicle, the Air Bag Sensor is considered one of the most reliable and high-performing, designed for the GMC Safari, a versatile van of General Motors produced from 1985 to 2005. It supports different years of the GMC Safari to have the optimal security features when others have already featured this sensor. With the Air Bag Sensor integration, not only is the safety rating increased, but efficiency is also boosted, as it covers the aspect of air bag deployment at the right time so as to minimize harm during a crash. The GMC Safari is a car manufactured by GMC, distinguished by its durability, a large interior, and preference for family and business buyers, with the Air Bag Sensor being a paramount component that proved the car manufacturer's concern for passengers' safety. The key characteristics of the Air Bag Sensor include the fast response and the relative longevity of the device, which serve as the conclusive selling points in the world automobile market. The GMC Safari has been estimated to have had around 3.2 million units rolled off the assembly line and, hence, this means that the Air Bag Sensor has stood out as a big brand in General Motors to date given its reliability.

GMC Safari Air Bag Sensor Parts Questions & Experts Answers

Air Bag Sensor
16246305
Q: How to replace the front air bag sensor on GMC Safari?
A:
In order to replace the inflatable restraint front end discriminating sensor, you would have to disable the SIR system. Lift the vehicle and disconnect the harness connector at the top frame. Take out the bolt and remove the sensor from the cradle. Clean the mounting location; next, install the new sensor horizontally on top of the frame while the arrow in the sensor is aimed towards the front part of the vehicle. Fasten the sensor with the mounting fasteners, tightening them to 6.5 N.m (58 lb in). If the first fastener (rivet) was not correctly installed, remove and trash the fastener, then, reinstall the fastener (introducing a new rivet). If the sensor mounting holes or fasteners have been damaged, remove the improperly inserted rivet, enlarge the mounting holes in the lower radiator support to 9.0mm (0.35 in), insert and properly seat the rivnut, and install the screw to the sensor, and tighten fasteners to 6.5 N.m (58 lb in). Lastly, hook up the harness connector to the sensor, bring the vehicle down, and enable the SIR system.
