How to replace the rear Drive Shaft on GMC Yukon XL 2500?

Prior to removing the rear propeller shaft technicians must reference-mark the driveline components concerning the propeller shaft and axles including propeller shafts and drive axles and pinion flanges and output shafts so the components can be reassembled in their original arrangement. After lifting the vehicle implement a marking process to link the propeller shaft with rear axle pinion yoke and transmission or Transfer Case. Through the process disconnect the bolts and the retainers from the rear axle pinion yoke. A tool should never be placed between the yoke and Universal Joint to prevent injection joints from breaking because of the potential damage to the yoke ears during propeller shaft removal. To detach the propeller shaft users should first direct it forward away from the rear axle pinion yoke and secondly slide it toward the transmission or Transfer Case for separation before removing the shaft entirely from the vehicle. Check if the Slip Yoke splines have proper lubrication levels, apply gm p/n 12345879 (Canadian P/N 10953511) lubricant or equivalent gm specification 9985830 (ROOD w/ Automatic Transmission). The installation process of the propeller shaft starts with feeding it through the transmission or Transfer Case while matching reference marks from removal. Subsequently, the shaft slides into rear axle location to join with the pinion yoke through proper alignment of reference points. Lower the vehicle after installing the yoke retainers along with bolts while placing the yoke retainer bolts at 25 nm (19 ft. Lbs. Torque).

OEM GMC Yukon XL 2500 Drive Shaft

Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Drive Shafts found

View related parts
GMC Yukon XL 2500 Slip Yoke Part Number: 10390404
$1526.36 MSRP: $1964.46
You Save: $438.10 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Drive Shaft Assembly; Shaft, Propeller
- Replaces: 15075236, 15090206
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2006 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts

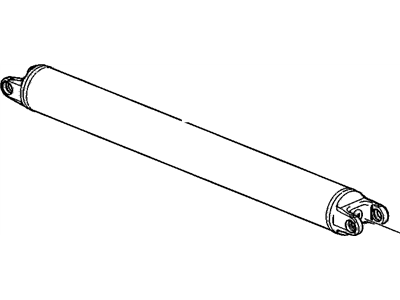

GMC Yukon XL 2500 Drive Shaft Part Number: 84675732
$454.37 MSRP: $780.39
You Save: $326.02 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Drive Shaft Assembly; Shaft, Propeller
- Replaces: 15794278, 20912343, 22922243, 23509060, 20912698, 25957030
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts

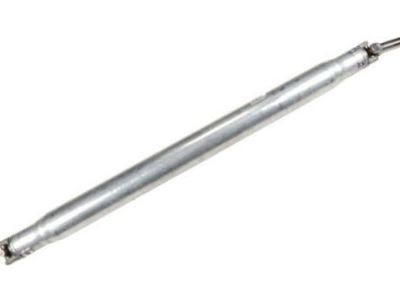

GMC Yukon XL 2500 Drive Shaft, Front Part Number: 84669663
$313.29 MSRP: $624.71
You Save: $311.42 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Front Axle Propeller; Driveshaft; Shaft, Propeller
- Position: Front
- Replaces: 15182098, 84060396, 15090195, 15719954
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts

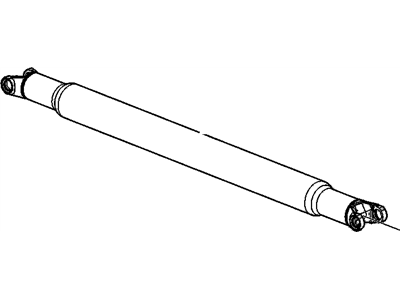

GMC Yukon XL 2500 Drive Shaft, Front Part Number: 22845694
Product Specifications
- Other Name: Shaft Assembly-Front Axle Propeller; Driveshaft; Shaft, Propeller
- Position: Front
- Replaces: 15902927
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts

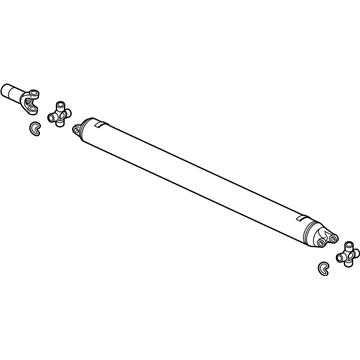

GMC Yukon XL 2500 Drive Shaft Part Number: 20912713
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Shaft, Propeller
- Replaces: 25804154, 25904133, 25784253
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft Part Number: 15814474
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Shaft, Propeller
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2008 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft, Front Part Number: 15182094
Product Specifications
- Other Name: Shaft Assembly-Front Axle Propeller; Driveshaft; Shaft, Propeller
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft Assembly Part Number: 15109397
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Shaft, Propeller
- Replaces: 15713680
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2006 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts
GMC Yukon XL 2500 Shaft, Front Part Number: 26059170
Product Specifications
- Other Name: Shaft, Front Wheel Drive; Axle Shaft
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft Part Number: 25804152
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Shaft, Propeller
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2008 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft Part Number: 22922244
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Shaft, Propeller
- Replaces: 15260539, 20912693
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft Part Number: 22845688
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Shaft, Propeller
- Replaces: 10383383, 22828500, 20912703, 20871263
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft Part Number: 15791197
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Shaft, Propeller
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft Part Number: 15791184
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft, Front Part Number: 15182096
Product Specifications
- Other Name: Shaft Assembly-Front Axle Propeller; Driveshaft; Shaft, Propeller
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft Part Number: 15093867
Product Specifications
- Other Name: Shaft Assembly-Propeller; Driveshaft; Shaft, Propeller
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Drive Shaft, Front Part Number: 22845693
$277.89 MSRP: $437.25
You Save: $159.36 (37%)
Product Specifications
- Other Name: Shaft Assembly-Front Axle Propeller; Driveshaft; Shaft, Propeller
- Position: Front
- Replaces: 15902926
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS

GMC Yukon XL 2500 Drive Shaft

Want to cut long-term maintenance and repair costs? Choose OEM Drive Shaft. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Yukon XL 2500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Yukon XL 2500 Drive Shaft includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Yukon XL 2500 Drive Shaft Parts Questions & Experts Answers

Slip Yoke
10390404
Q: How to replace the rear Drive Shaft on GMC Yukon XL 2500?
A:
Prior to removing the rear propeller shaft technicians must reference-mark the driveline components concerning the propeller shaft and axles including propeller shafts and drive axles and pinion flanges and output shafts so the components can be reassembled in their original arrangement. After lifting the vehicle implement a marking process to link the propeller shaft with rear axle pinion yoke and transmission or Transfer Case. Through the process disconnect the bolts and the retainers from the rear axle pinion yoke. A tool should never be placed between the yoke and Universal Joint to prevent injection joints from breaking because of the potential damage to the yoke ears during propeller shaft removal. To detach the propeller shaft users should first direct it forward away from the rear axle pinion yoke and secondly slide it toward the transmission or Transfer Case for separation before removing the shaft entirely from the vehicle. Check if the Slip Yoke splines have proper lubrication levels, apply gm p/n 12345879 (Canadian P/N 10953511) lubricant or equivalent gm specification 9985830 (ROOD w/ Automatic Transmission). The installation process of the propeller shaft starts with feeding it through the transmission or Transfer Case while matching reference marks from removal. Subsequently, the shaft slides into rear axle location to join with the pinion yoke through proper alignment of reference points. Lower the vehicle after installing the yoke retainers along with bolts while placing the yoke retainer bolts at 25 nm (19 ft. Lbs. Torque).
