Make sure this part fits

GM 15810646
Nameplate, Front

2006-2009 GM

Customer Questions & Expert Answers (9)

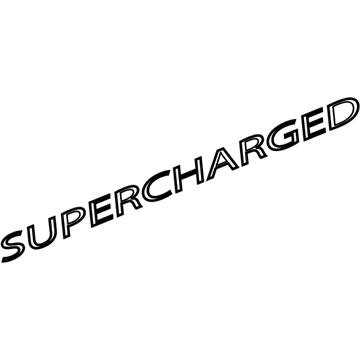

GM 15810646 Nameplate, Front
GM 15810646 Nameplate, Front
  • Part Description
    Emblem, Front Side Door
  • Position
    Front
  • Manufacturer
    General Motors
Make sure this part fits
$63.71 MSRP: $94.82
You Save: $31.11 (33%)
Currently Unavailable

Due to manufacturer supply shortage, this item isn't currently available for ordering.

  • Vehicle Fitment

    Year Make Model Trim Engine
    2006-2009 Cadillac STSV8 Cyl 4.4 L GAS
    2006-2009 Cadillac XLRV8 Cyl 4.4 L GAS
    Warning: California's Proposition 65
  • Customer Questions & Expert Answers

    Q:
    Is this 15810646 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 15810646 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the front fender emblem and nameplate on Cadillac XLR? Posted by Customer
    A:
    Before replacing front fender emblems or nameplates on XLR models use tape to protect mounting areas then mark alignment points with additional tape. A J 25070 (Heat Gun) should be used to heat the emblem/nameplate in circular patterns for 30 seconds while positioned 152 mm (6 in) away from the surface. You need to use a plastic flat-blade tool to carefully take out the emblem/nameplate. You should begin by cleaning the area with a lint-free cloth alongside Varnish Makers and Painters (VMP) naphtha or a mixture of isopropyl alcohol and water in a 50/50 ratio before starting installation. In unmarked locations apply tape then measure according to these specifications: Dimension (a) sets fender edge to nameplate at 108 mm (4.25 in) and Dimension (b) determines bottom fender distance to nameplate at 305 mm (12 in). There are two measurements to follow: Dimension (a) represents 108 mm (4.25 in) from the fender's trailing edge to the product's edge and Dimension (b) shows 305 mm (12 in) from the fender base to the product's location. Use J 25070 (Heat Gun) to preheat the mounting surface to 27-41°C (80-105°F) then position the emblem/nameplate to a temperature of 29-32°C (85-90°F). Deadly handle the adhesive backing instead carefully peel off the protective liner attached to the emblem/nameplate's back side. Approach the mounting surface with the emblem/nameplate then apply equal pressure to its surface until it bonds uniformly. The last step encompasses removing tape from the surface area.
    Posted by ChevyPartsGiant Specialist
    Q:
    What tool should be used to remove the emblem/nameplate for the 2006 Cadillac XLR? Posted by Customer
    A:
    Carefully remove the emblem/nameplate from the panel surface with a plastic, flat-bladed tool.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    Q:
    How should the emblem/nameplate be heated for removal for the 2009 Cadillac XLR? Posted by Customer
    A:
    Use a J 25070 heat gun in a circular motion for about 30 seconds, keeping it approximately 152 mm (6 in) from the surface.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    Q:
    How should the emblem/nameplate be heated for the 2007 Cadillac STS? Posted by Customer
    A:
    Use a J 25070 Heat Gun in a circular motion for about 30 seconds, holding it approximately 152 mm (6 in) from the surface.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    Q:
    What is the ideal temperature for the emblem/nameplate during removal for the 2007 Cadillac XLR? Posted by Customer
    A:
    Approximately 29-32° C (85-90° F).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    Q:
    What tool should be used to remove the emblem/nameplate for the 2007 Cadillac XLR? Posted by Customer
    A:
    A plastic, flat-bladed tool should be used to carefully remove the emblem/nameplate from the panel surface.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    Q:
    How should the installation area be prepared for the 2008 Cadillac STS? Posted by Customer
    A:
    Clean the installation area with the same cloth and solution, ensuring it is thoroughly dried.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    Q:
    How should the emblem/nameplate be heated for the 2009 Cadillac STS? Posted by Customer
    A:
    Use a J 25070 (Heat Gun) in a circular motion for about 30 seconds, holding it approximately 152 mm (6 in) from the surface.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Nameplate, Front 15810646 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 15810646 Nameplate, Front is available in the market under the name GM Emblem. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 15810646 Nameplate, Front fits certain Cadillac XLR, STS models.
The original GM component designated by manufacturer part number 15810646 maintains top performance when functioning as the Emblem, Front Side Door unit at its Front. The component 15810646 is constructed from durable material and its dimensions span 14.6 x 1.1 x 0.3 inches while weighing 0.40 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. The part 15810646 has available replacement options. Each vehicle needs 2 units of the part marked as SKU 15810646. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
