Make sure this part fits

GM 15292403
Trailing Arm, Green Line, Rear Passenger Side

2004-2012 GM

Customer Questions & Expert Answers (8)

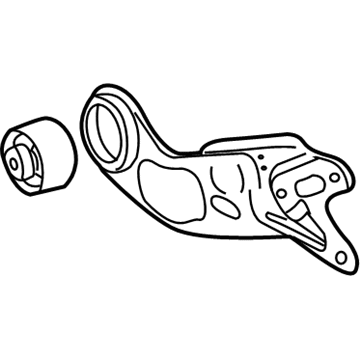

GM 15292403 Trailing Arm, Green Line, Rear Passenger Side
GM 15292403 Trailing Arm, Green Line, Rear Passenger Side
  • Part Description
    Arm, Rear Axle Control Arm; Suspension Trailing Arm
  • Position
    Rear Passenger Side
  • Replaces
    10379364, 22724672
  • Manufacturer
    General Motors
Make sure this part fits
$62.64 MSRP: $106.63
You Save: $43.99 (42%)
Ships in 1-2 Business Days
1
ADD TO CART
  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2012 Chevrolet MalibuBase, Classic LS, Classic LT, Hybrid, LS, LT, LTZ, Maxx, Maxx LS, Maxx LT, Maxx LTZ, Maxx SS, SS4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L GAS, 6 Cyl 3.9 L GAS
    2005-2010 Pontiac G6Base, GT, GTP, GXP4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L GAS, 6 Cyl 3.9 L GAS
    2007-2009 Saturn AuraGreen Line, Hybrid, XE, XR4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L GAS
    Warning: California's Proposition 65
  • Customer Questions & Expert Answers

    Q:
    Is this 15292403 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 15292403 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the lower control arm on Chevrolet Malibu? Posted by Customer
    A:
    Start by elevating and stabilizing your vehicle. Then remove the wheel according to the process. Owners of vehicles with lx9 engines must detach the side transmission mount for the left Control Arm or the Engine Mount for the right Control Arm. Remove the lower Control Arm front bushing to frame bolt followed by removal of lower Control Arm rear bushing to both frame bolts and nuts. Before bolt removal from the Control Arm note its alignment to the Steering Knuckle pinch bolt and discard the pinch bolt. Separate the ball stud from the Steering Knuckle before removing the Control Arm from the vehicle along with the lower Control Arm rear bushing. Install the lower Control Arm rear bushing first before placing the Control Arm between the frame assembly and Steering Knuckle. Start by installing a new ball stud to the Steering Knuckle pinch bolt and performing just a hand tighten. Next install the lower Control Arm front bushing to the frame bolt also performing a hand tighten. The installation requires using fasteners which match the part number for each application according to their specific locations. Are you also told to avoid applying paints or using lubricants or adding corrosion inhibitors on fasteners and joint areas because these substances interfere with torque strength and clamping abilities. Weld the lower Control Arm rear bushing into position by fastening frame bolts and nuts. Secure the ball stud to Steering Knuckle pinch nut at 50 nm (37 lb ft) then rotate the nut 3/4 of a turn before achieving 50 nm (37 lb ft) torques completed with a 60-degree nut rotation. Tighten the first suspension bolt under proper jackstand conditions before setting the front bushing to frame fastener at 50 nm (37 lb ft) and an additional 90 degrees and the rear bushing to frame bolts at 50 nm (37 lb ft) and another 90 degrees. To reinstall the right lower Control Arm you should add the Engine Mount. Installation of the side transmission mount needs to be performed if the left lower Control Arm was removed during service. To finish the installation process simply install the tire and wheel and carefully lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    Q:
    What should be done if the spring insulators are damaged for the 2004 Chevrolet Malibu? Posted by Customer
    A:
    Replace them as necessary.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the final step before lowering for the 2006 Chevrolet Malibu? Posted by Customer
    A:
    Install the tire and wheel.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Trailing Arm
    Q:
    What is the first step in the installation process of the upper control arm for the 2004 Chevrolet Malibu? Posted by Customer
    A:
    Position the upper control arm to the support assembly and knuckle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the torque specification for the trailing arm to bracket through bolt for the 2007 Chevrolet Malibu? Posted by Customer
    A:
    60 N.m (44 lb ft) plus 60 degrees.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Trailing Arm
    Q:
    What should be done after reconnecting the parking brake cable for the 2005 Chevrolet Malibu? Posted by Customer
    A:
    Install the trailing arm bracket to body bolts, tightening them to 90 Nm (66 ft. lbs.) plus 30 degrees plus an additional 15 degrees.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Trailing Arm
    Q:
    What needs to be disconnected from the trailing arm for the 2004 Chevrolet Malibu? Posted by Customer
    A:
    Disconnect the parking brake cable from the trailing arm.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Trailing Arm
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Trailing Arm, Green Line, Rear Passenger Side 15292403 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 15292403 Trailing Arm, Green Line, Rear Passenger Side is available in the market under the name GM Control Arm, Trailing Arm. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 15292403 Trailing Arm, Green Line, Rear Passenger Side fits certain Chevrolet Malibu models, as well as Pontiac G6. Additionally, it is compatible with Saturn Aura models.
The original GM component designated by manufacturer part number 15292403 maintains top performance when functioning as the Arm, Rear Axle Control Arm; Suspension Trailing Arm unit at its Rear Passenger Side. The component 15292403 is constructed from durable material and its dimensions span 7.9 x 3.9 x 19.0 inches while weighing 4.90 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. The part 15292403 has available replacement options 10379364, 22724672. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
