Question 1

How to replace a fuel injector on Buick LeSabre?

Accepted Answer

Start by removing the Fuel Rail onto which you should detach the Fuel Injector retaining clips and extract the fuel injectors. Follow these steps for removing the Fuel Injector upper o-ring together with lower o-ring and o-ring back up while keeping electrical connector pins and nozzles free from damage. You must install the specific Fuel Injector part number and replace upper o-rings that are black while lower ones should be brown because they consist of dissimilar materials. An improper installation of the o-ring back up will create a vacuum leak because it functions as an essential tool for proper positioning of the lower o-ring. Engine oil should be applied to all fresh o-rings before the o-ring back up and lower and upper o-rings get installed onto the Fuel Injector assembly bearing its part number and build date code. The procedure continues with installing the Fuel Injector onto the Fuel Rail while using retaining clips for secure attachment finished by reattaching the Fuel Rail. The replacement of o-rings should happen simultaneously with any maintenance work on fuel injectors to stop the possibility of fuel spreading into engine oil.

Question 2

How to service and repair the fuel injectors and fuel rail on Buick LaCrosse?

Accepted Answer

The initial step for servicing fuel injectors along with the Fuel Rail requires completion of fuel pressure relief procedure to lower system pressure. The upper Intake Manifold must be removed first followed by fuel pipe retaining clip removal then disconnecting the fuel feed pipe from its connection to the Fuel Injector rail. Workers should utilize compressed air for cleaning debris near the points where fuel injectors meet the Intake Manifold after putting on protective safety glasses. You should remove the Fuel Rail bolts before taking out the Fuel Rail with fuel injectors by supporting it to protect injector electrical terminals and spray tips from damage. Fit caps to the fittings and use plugs to block open holes from outside contaminants. Remove the Fuel Injector electrical connector lock before unplugging the electrical connection. Standards require removal of the Fuel Injector retainer clip followed by Fuel Injector removal while eliminating the old Fuel Injector seals. To assemble the Fuel Injector requires replacing all seals and then attaching the injector before fixing it with a retainer clip. Engage the lock when connecting the Fuel Injector electrical connector and repeat the process. Secure the Fuel Rail along with fuel injectors by torquing Fuel Rail bolts up to 10 n.m (89 lb in). The fuel feed pipe connects to the Fuel Rail after inserting the fuel pipe retaining clip while the upper Intake Manifold returns to its place.

Question 3

How to replace a fuel injector while avoiding damage to the electrical components on Buick Regal?

Accepted Answer

Take care when replacing the Fuel Injector to protect its electrical connector pins and nozzles since the injector functions as an electrical unit that needs to be free from immersion in any cleaner solution. Service of the Fuel Injector must be performed by replacing the entire assembly and replacing the o-rings whenever fuel leaks are present to avoid fuel contamination of engine oil. Start the procedure by removing the Fuel Rail before extracting the Fuel Injector retaining clip and Fuel Injector and both upper and lower o-rings afterwards. Verify that new fuel injectors correspond to the specific application because the Fuel Injector assembly shows part number identification together with manufacturing date, week code and production plant number. Clean engine oil should be applied to fresh o-rings before installation during which workers must start by placing the lower o-ring then position the upper o-ring before attaching the Fuel Injector to the rail. To finish the procedure replace the Fuel Injector through the retaining clip before reinstalling the Fuel Rail.

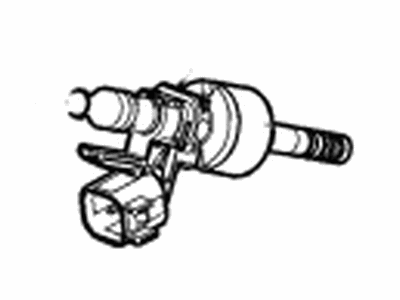

OEM Buick Fuel Injector

67 Fuel Injectors found

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector

Buick Injector
