How to replace the primary cam gear and timing chain on Cadillac XLR?

In order to replace the timing chain and sprockets, first, assemble all necessary tools, including the crankshaft socket (J 39946). Start with the removal of the Oil Pump, then when aligning to the timing chain specifications use the crankshaft socket (J 39946). Next, pull off the secondary chains camshaft drive, followed by the timing chain tensioner, oil outlet tube, and, finally, the camshaft guide chains and bolts. Set camshaft intermediate sprocket retaining bolt and remove the timing chain, crankshaft sprocket, and camshaft intermediate sprocket assembly. Clean and check the camshaft timing drive components before moving to install. Register the timing (pressing marks) of camshaft intermediate and sprocket of crankshaft, and install the timing chain on drive sprockets. Install the timing chain; crankshaft sprocket; and camshaft intermediate sprocket as an assembly. Rotate the crankshaft by using the crankshaft socket (J 39946) until the key way is at the 1 o'clock position. Tighten the camshaft intermediate sprocket bolt slightly to 60 nm (44 ft. Lbs.), after which, fit the timing chain guide and allow the bolts to tighten to 25 nm (18 ft. Lbs.). Mount the timing chain tensioner followed by the oil outlet tube and bolts that need to be tightened to 10 nm (89 inch lbs). Finally, fit secondary camshaft drive chains, remove pin from timing chain tensioner release lever, then make sure that the timing marks align vertically and the Oil Pump back into place.

OEM Cadillac XLR Cam Gear

Camshaft Gear

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Cam Gears found

View related parts

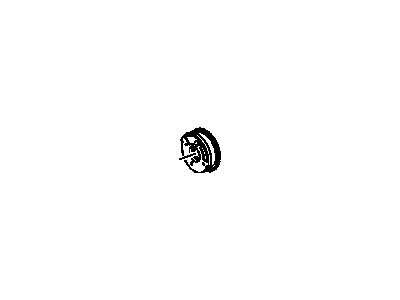

Cadillac XLR Actuator
Part Number: 12581500
$146.64
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Engine Camshaft
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Actuator
Part Number: 12567417
$69.05 MSRP: $96.92
You Save: $27.87 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Camshaft Position; Actuator, Engine Camshaft
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac XLR | Base | 8 Cyl 4.6 L GAS
View related parts

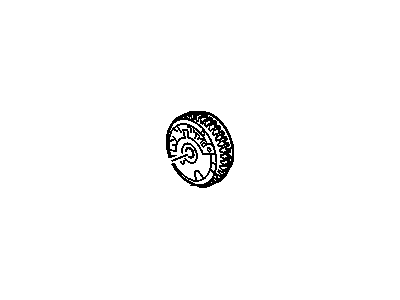

Cadillac XLR Camshaft Gear, Driver Side
Part Number: 12577433
Product Specifications
- Other Name: Sprocket-Camshaft Intermediate Drive Shaft; Variable Valve Timing Sprocket; Timing Gear; Cam Gear; Intermediate Gear; Timing Gear Set; Sprocket, Engine Camshaft
- Position: Driver Side
- Replaces: 12568563, 12556021
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

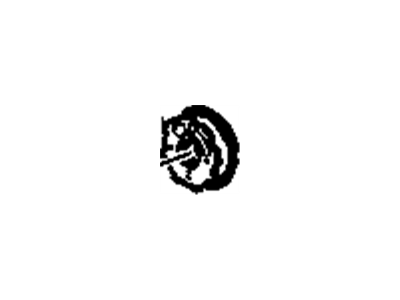

Cadillac XLR Actuator
Part Number: 12581499
Product Specifications
- Other Name: Actuator, Engine Camshaft
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Actuator
Part Number: 12567416
Product Specifications
- Other Name: Actuator, Camshaft Position; Actuator, Engine Camshaft
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac XLR | Base | 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Actuator
Part Number: 12567415
Product Specifications
- Other Name: Actuator, Camshaft Position; Actuator, Engine Camshaft
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac XLR | Base | 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Actuator
Part Number: 12567414
Product Specifications
- Other Name: Actuator, Camshaft Position; Actuator, Engine Camshaft
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac XLR | Base | 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Actuator
Part Number: 12581497
$141.78 MSRP: $223.09
You Save: $81.31 (37%)
Product Specifications
- Other Name: Actuator, Engine Camshaft
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Actuator
Part Number: 12581498
$35.20 MSRP: $55.13
You Save: $19.93 (37%)
Product Specifications
- Other Name: Actuator, Engine Camshaft
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS

Cadillac XLR Cam Gear

Our website offers an extensive catalog of genuine Cadillac XLR Cam Gear at unbeatable prices. Every OEM Cadillac XLR Cam Gear comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Cadillac XLR Cam Gear Parts Questions & Experts Answers

Actuator
12567417
Q: How to replace the primary cam gear and timing chain on Cadillac XLR?
A: In order to replace the timing chain and sprockets, first, assemble all necessary tools, including the crankshaft socket (J 39946). Start with the removal of the Oil Pump, then when aligning to the timing chain specifications use the crankshaft socket (J 39946). Next, pull off the secondary chains camshaft drive, followed by the timing chain tensioner, oil outlet tube, and, finally, the camshaft guide chains and bolts. Set camshaft intermediate sprocket retaining bolt and remove the timing chain, crankshaft sprocket, and camshaft intermediate sprocket assembly. Clean and check the camshaft timing drive components before moving to install. Register the timing (pressing marks) of camshaft intermediate and sprocket of crankshaft, and install the timing chain on drive sprockets. Install the timing chain; crankshaft sprocket; and camshaft intermediate sprocket as an assembly. Rotate the crankshaft by using the crankshaft socket (J 39946) until the key way is at the 1 o'clock position. Tighten the camshaft intermediate sprocket bolt slightly to 60 nm (44 ft. Lbs.), after which, fit the timing chain guide and allow the bolts to tighten to 25 nm (18 ft. Lbs.). Mount the timing chain tensioner followed by the oil outlet tube and bolts that need to be tightened to 10 nm (89 inch lbs). Finally, fit secondary camshaft drive chains, remove pin from timing chain tensioner release lever, then make sure that the timing marks align vertically and the Oil Pump back into place.
