How to Service and Repair Brake Lines Using the J 45405 Pipe Flaring Tool Kit on Chevrolet Equinox?

You should use the J 45405 Pipe Flaring Tool Kit (J 45405) and always pick double-walled steel brake pipe to service and repair the brake p Have a look at the spot where you will replace the brake pipe and remove any clamps that hold it in place. If you need to section the brake pipe, select a proper place away from bends or mounting points, measure the new pipe length, and add extra for flaring based on the size of the pipe. Cut the brake pipe evenly using the pipe cutter from the J 45405 (J 45405) kit, and take out the section you have cut off. Select the right size of brake pipe and tube nuts, then use the coating stripping tool from the J 45405 (J 45405) to remove the nylon from the end to flare, and finally chamfer the pipe ends using the de-burring tool that comes with the J 45405 (J 45405). Install tube nuts onto the pipe, then clean the brake pipe and the J 45405 (J 45405), and pick out the right die set. Put the flared pipe into the die cage, tighten down the screw, and use the forming mandrel to flare the pipe. After forming the flare, make sure it has the correct shape and diameter, and if it does not, reshape the new pipe with a brake bending tool. Connect the pipe to the vehicle by putting in the right unions, fasten it to the retainers, and bleed the brake system. Compare the brake pipe flares for any leaks as you power the engine and press the brakes at the end.

How to replace the front brake line on Chevrolet Equinox?

Start replacing the front brake hose by lifting the car and keeping it stable before taking out its tire and wheel components. Unclip the wheel speed sensor harness clamps and disconnect the harness from its base. Wipe off all soil from both ends of the brake hose and the brake pipe fitting. Turn off fluid leakage by plugging the ends after disconnection with a back up wrench when separating brake pipe from brake hose. Unclip the brake hose attachment to its bracket then take off the brake hose. Afterward detach the brake caliper free bolt from both components. Remove the brake hose from the caliper body along with the gaskets that may be attached to the brake caliper or hose end. Protect the brake system by sealing its exposed opening points to hold the fluid inside. Peel off brake hose caps first and replace them with new copper brake hose gaskets then fasten the brake hose bolt onto the hose. The front brake hose fitting bolt should go into the brake caliper first and gets tightened to 38 lb ft (52 N.m). The front brake hose bracket retaining bolt joins next, secured at 12 n.m (106 lb in). Reconnect the wheel speed sensor harness using its locking system. Use a back up wrench to connect the brake pipe fitting at the front brake hose and secure it at 18 n.m (13 lb ft). Install the tire and wheel assembly to its place while keeping the brake hose between its retaining clips and bracket. The hose should avoid touching any suspension parts during powerful turns so you need to take out the hose when necessary adjustments become necessary. After completing the work lower the vehicle and run the hydraulic brake system bleed process.

OEM Chevrolet Equinox Brake Line

Brake Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

26 Brake Lines found

View related parts

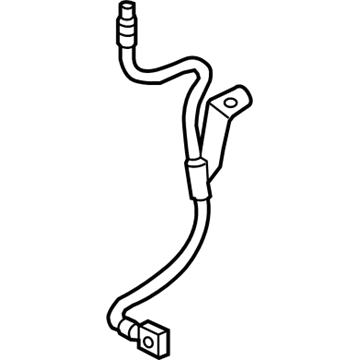

Chevrolet Equinox Flex Hose, Front Passenger Side Part Number: 84068671
$37.80 MSRP: $70.52
You Save: $32.72 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Passenger Side
- Replaces: 23240861, 25964078
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

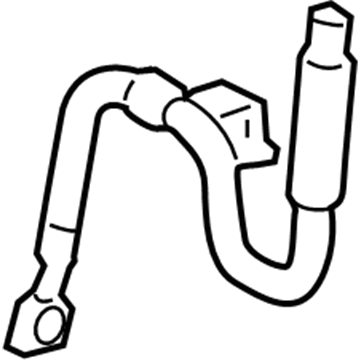

Chevrolet Equinox Flex Hose, Front Driver Side Part Number: 84398707
$13.26 MSRP: $23.69
You Save: $10.43 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2020 Chevrolet Equinox | LT, Premier | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Flex Hose, Front Passenger Side Part Number: 84559408
$8.89 MSRP: $15.87
You Save: $6.98 (44%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2020 Chevrolet Equinox | L, LS, LT, Premier | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Flex Hose, Passenger Side Part Number: 84313243
$7.32 MSRP: $13.72
You Save: $6.40 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Hydraulic Brake; Hydraulic Hose; Brake Hose; Brake Line
- Position: Passenger Side
- Replaced by: 86593678
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018 Chevrolet Equinox | L, LS, LT, Premier | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Brake Hose, Front Passenger Side Part Number: 84629795
$15.00 MSRP: $24.69
You Save: $9.69 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Line
- Position: Front Passenger Side
- Replaced by: 86791581
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Flex Hose, Front Part Number: 84559406
$15.00 MSRP: $24.69
You Save: $9.69 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front
- Replaced by: 86791581
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2023 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Flex Hose, Front Driver Side Part Number: 84293148
$8.07 MSRP: $15.15
You Save: $7.08 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Driver Side
- Replaced by: 84559407
- Replaces: 84190239, 23408388
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018 Chevrolet Equinox | LT, Premier | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Vacuum Hose Part Number: 84974392
$30.12 MSRP: $56.56
You Save: $26.44 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly-Power Brake Booster Vacuum; Brake Booster Vacuum Hose; Pipe, Vacuum Power Brake
- Replaces: 13388368, 84259588, 84361879
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2022 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Flex Hose, Front Part Number: 22706714
$46.69 MSRP: $87.68
You Save: $40.99 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox Flex Hose, Front Passenger Side Part Number: 84398706
$13.66 MSRP: $25.67
You Save: $12.01 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2020-2021 Chevrolet Equinox | L, LS, LT, Premier | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Flex Hose, Driver Side Part Number: 84068674
$24.50 MSRP: $45.98
You Save: $21.48 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Hydraulic Brake; Hydraulic Hose; Brake Hose; Brake Line
- Position: Driver Side
- Replaces: 25903682, 15914568, 23240856, 22910276
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier, Sport | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Flex Hose, Front Driver Side Part Number: 84559405
$7.64 MSRP: $13.81
You Save: $6.17 (45%)
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Driver Side
- Replaces: 84293146, 84190237, 84629794, 23408386
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Flex Hose, Front Driver Side Part Number: 84068672
$38.01 MSRP: $68.79
You Save: $30.78 (45%)
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Driver Side
- Replaces: 25964077, 23240860
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Flex Hose, Driver Side Part Number: 84313242
$7.08 MSRP: $12.80
You Save: $5.72 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Hydraulic Brake; Hydraulic Hose; Brake Hose; Brake Line
- Position: Driver Side
- Replaced by: 84559403
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018 Chevrolet Equinox | L, LS, LT, Premier | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Flex Hose, Driver Side Part Number: 22706571
Product Specifications
- Other Name: Hose, Hydraulic Brake; Hydraulic Hose; Brake Hose; Brake Line
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox Flex Hose, Passenger Side Part Number: 22706575
Product Specifications
- Other Name: Hose, Hydraulic Brake; Hydraulic Hose; Brake Hose; Brake Line
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox Brake Hose, Driver Side Part Number: 15223827
Product Specifications
- Other Name: Hose, Hydraulic Brake; Hydraulic Hose; Brake Line
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox Brake Hose, Passenger Side Part Number: 15223828
Product Specifications
- Other Name: Hose, Hydraulic Brake; Hydraulic Hose; Brake Line
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox Flex Hose, Front Driver Side Part Number: 20789412
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Driver Side
- Replaces: 15223062, 25903640
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Chevrolet Equinox | LS, LT, LTZ, Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Flex Hose, Front Passenger Side Part Number: 20789413
Product Specifications
- Other Name: Hose Assembly-Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Passenger Side
- Replaces: 15223063, 25903641
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Chevrolet Equinox | LS, LT, LTZ, Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS

| Page 1 of 2 |Next >

1-20 of 26 Results

Chevrolet Equinox Brake Line

Want to cut long-term maintenance and repair costs? Choose OEM Brake Line. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Equinox parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Equinox Brake Line includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Equinox Brake Line is an important part that helps in conveying brake fluid from the master cylinder to the brake caliper pistons and as a result, assists in the good working of the hydraulic braking system. Brake lines are made from metal and so they are usually affected by corrosion and impact which would compromise the brake fluid and thus lead to poor availability of hydraulic pressure. Brake hoses can also show physical as well as internal wear and tear which will significantly compromise the brake efficiency. When replacement is obligatory, there are pre-bent brake line kits and direct replacement brake hoses, which are rather convenient and do not rust. Sometimes, you may replace your old rubber like brake lines with braided stainless steel brake lines, which has inherent benefits, particularly in terms of boost in the brake pedal feel and sensitivity particularly when used in sports driving.

Chevrolet Equinox Brake Line Parts and Q&A

Flex Hose, Driver Side
84068674
Q: How to Service and Repair Brake Lines Using the J 45405 Pipe Flaring Tool Kit on Chevrolet Equinox?
A:
You should use the J 45405 Pipe Flaring Tool Kit (J 45405) and always pick double-walled steel brake pipe to service and repair the brake p Have a look at the spot where you will replace the brake pipe and remove any clamps that hold it in place. If you need to section the brake pipe, select a proper place away from bends or mounting points, measure the new pipe length, and add extra for flaring based on the size of the pipe. Cut the brake pipe evenly using the pipe cutter from the J 45405 (J 45405) kit, and take out the section you have cut off. Select the right size of brake pipe and tube nuts, then use the coating stripping tool from the J 45405 (J 45405) to remove the nylon from the end to flare, and finally chamfer the pipe ends using the de-burring tool that comes with the J 45405 (J 45405). Install tube nuts onto the pipe, then clean the brake pipe and the J 45405 (J 45405), and pick out the right die set. Put the flared pipe into the die cage, tighten down the screw, and use the forming mandrel to flare the pipe. After forming the flare, make sure it has the correct shape and diameter, and if it does not, reshape the new pipe with a brake bending tool. Connect the pipe to the vehicle by putting in the right unions, fasten it to the retainers, and bleed the brake system. Compare the brake pipe flares for any leaks as you power the engine and press the brakes at the end.
Flex Hose, Passenger Side
84068673
Q: How to replace the front brake line on Chevrolet Equinox?
A:
Start replacing the front brake hose by lifting the car and keeping it stable before taking out its tire and wheel components. Unclip the wheel speed sensor harness clamps and disconnect the harness from its base. Wipe off all soil from both ends of the brake hose and the brake pipe fitting. Turn off fluid leakage by plugging the ends after disconnection with a back up wrench when separating brake pipe from brake hose. Unclip the brake hose attachment to its bracket then take off the brake hose. Afterward detach the brake caliper free bolt from both components. Remove the brake hose from the caliper body along with the gaskets that may be attached to the brake caliper or hose end. Protect the brake system by sealing its exposed opening points to hold the fluid inside. Peel off brake hose caps first and replace them with new copper brake hose gaskets then fasten the brake hose bolt onto the hose. The front brake hose fitting bolt should go into the brake caliper first and gets tightened to 38 lb ft (52 N.m). The front brake hose bracket retaining bolt joins next, secured at 12 n.m (106 lb in). Reconnect the wheel speed sensor harness using its locking system. Use a back up wrench to connect the brake pipe fitting at the front brake hose and secure it at 18 n.m (13 lb ft). Install the tire and wheel assembly to its place while keeping the brake hose between its retaining clips and bracket. The hose should avoid touching any suspension parts during powerful turns so you need to take out the hose when necessary adjustments become necessary. After completing the work lower the vehicle and run the hydraulic brake system bleed process.
