How to replace the pitman arm on Chevrolet Express 2500?

The replacement of a pitman arm requires first lifting the vehicle by safety stands. Pit fork tools and wedge tools should be avoided when trying to disengage the ball stud because they risk damaging both the seal and bushing structure. The pitman arm removing process requires you to eliminate the connecting rod nut from the pitman arm after which you must employ the Universal Steering Linkage Puller (J24319-B) to divide the connecting rod from the pitman arm. Begin by marking the pitman arm and pitman shaft for reassembly alignment before uninstalling the pitman arm nut and washer. Prevent damage to the pitman arm and pitman arm shaft by avoiding any hammering operations. Clean the ball stud threads along with the ball stud nut before conducting an inspection for damage and excessive wear. Do this step using either the Pitman Arm Puller (J6632-01) or the Pitman Arm Puller (J29107-A). The new pitman arm should be installed using markings from removal while also applying a new torque prevailing nut. Ambient temperatures now permit the installation of the pitman arm washer together with its nut. Tighten the retaining nut to reach a torque value of 250 Nm (184 ft. lbs.). Connect the connecting rod to the pitman arm ball stud while placing the seal in position correctly then torque the Steering Linkage Installer (J29193) or its alternative (J29194) to 54 Nm (40 ft. lbs.) to establish the tapers. The removal of J29193 should be followed by new torque prevailing nut installation before tightening the connecting rod nut to 47 Nm (35 ft. lbs.). Conclude the process by dismantling safety stands then lowering the vehicle from the lift.

OEM Chevrolet Express 2500 Pitman Arm

Steering Pitman Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Pitman Arms found

View related parts

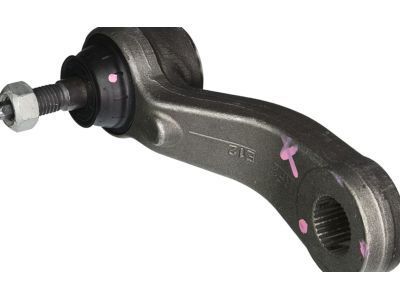

Chevrolet Express 2500 Pitman Arm
Part Number: 19168944
$144.36 MSRP: $245.79
You Save: $101.43 (42%)
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Pitman; Steering Pitman Arm; Idler Arm; Arm Kit, Steering Pitman
- Replaced by: 19435543
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2008 Chevrolet Express 2500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts

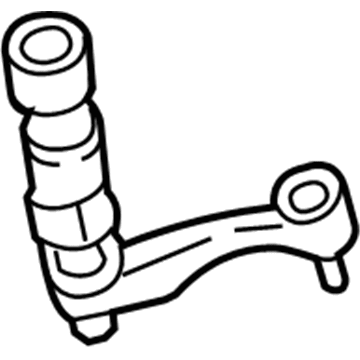

Chevrolet Express 2500 Pitman Arm
Part Number: 12479051
$45.98 MSRP: $112.19
You Save: $66.21 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Pitman; Steering Pitman Arm; Idler Arm
- Replaced by: 85819774
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2008 Chevrolet Express 2500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 2500 Pitman Arm
Part Number: 12471379
$90.68 MSRP: $154.38
You Save: $63.70 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Pitman; Idler Arm
- Replaced by: 85819770
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2008 Chevrolet Express 2500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 2500 Idler Arm
Part Number: 86511719
$90.68 MSRP: $154.38
You Save: $63.70 (42%)
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Steering Linkage Idler; Arm Kit, Steering Idler
- Replaced by: 85819770
- Replaces: 12471379, 12479349, 12471378, 19149615, 19178433
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2024 Chevrolet Express 2500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L GAS
View related parts
Chevrolet Express 2500 Pitman Arm
Part Number: 19434290
$45.98 MSRP: $112.19
You Save: $66.21 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Pitman
- Replaced by: 85819774
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2024 Chevrolet Express 2500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L GAS
View related parts
Chevrolet Express 2500 Idler Arm
Part Number: 26048558
Product Specifications
- Other Name: Arm Kit, Steering Linkage Idler; Steering Idler Arm; Pitman Arm; Arm, Steering Idler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 2500 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View related parts
Chevrolet Express 2500 Pitman Arm
Part Number: 26049439
Product Specifications
- Other Name: Arm Kit, Pitman; Steering Pitman Arm; Idler Arm
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 2500 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL

Chevrolet Express 2500 Pitman Arm

Our website offers an extensive catalog of genuine Chevrolet Express 2500 Pitman Arm at unbeatable prices. Every OEM Chevrolet Express 2500 Pitman Arm comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!
