How to replace the upper intermediate steering shaft on Chevrolet SSR?

Before replacing the upper intermediate Steering Shaft you must first confirm that both front wheels face forward and the Steering Column is secured in place. After placing the Steering Column lock pin (J 42640) in the lower trim cover access hole you can lock the Steering Column. Place the vehicle on supports then remove the pinch bolt which joins the upper intermediate to the lower intermediate shaft. Disconnect the upper intermediate shaft from its lower counterpart and put the vehicle into a lowered position. After removal of the knee bolster bracket write down how the upper intermediate shaft points to the Steering Column pinch bolt for proper reinstallation. Use the pinch bolt to remove the upper intermediate shaft from the Steering Column and then separate the upper intermediate shaft from the column. To install the new upper intermediate shaft connect it between the Steering Column. When reinstalling the pinch bolt it must face in the original direction so that it stays away from the Steering Column housing. After reinstalling the knee bolster bracket tighten the upper intermediate shaft to Steering Column pinch bolt nut at 50 nm (37 ft. Lbs.). Reposition the vehicle while you join the upper intermediate shaft to the lower intermediate shaft then torque the pinch bolt connecting these components to 50 nm (37 ft. Lbs.). To complete the process lower the vehicle then remove the Steering Column lock pin (J 42640).

OEM Chevrolet SSR Steering Shaft

Steering Stem Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Steering Shafts found

View related parts

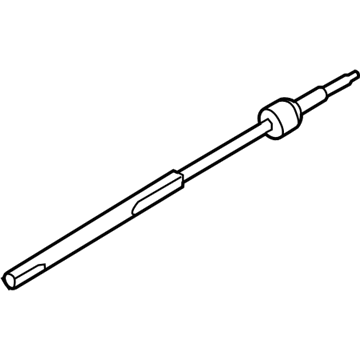

Chevrolet SSR Steering Shaft Part Number: 19133768
Product Specifications
- Other Name: Shaft, Steering Column; Lower Shaft; Shaft
- Position: Upper
- Replaces: 19133765
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006 Chevrolet SSR | Base | 8 Cyl 6.0 L GAS
View related parts

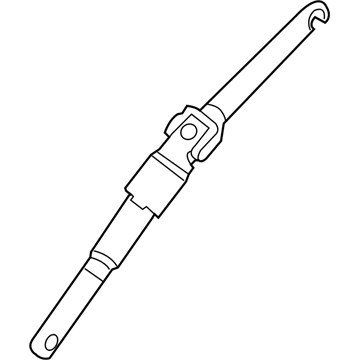

Chevrolet SSR Steering Shaft Part Number: 26100328
Product Specifications
- Other Name: Shaft, Steering Column; Lower Shaft; Shaft
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts

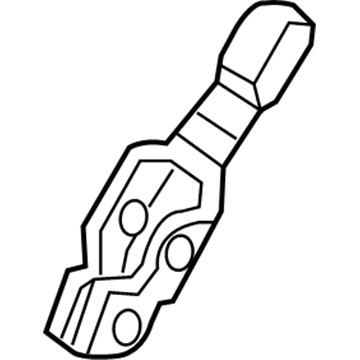

Chevrolet SSR Intermediate Shaft Part Number: 15114832
Product Specifications
- Other Name: Shaft, Steering Gear Shaft; Steering Shaft; Lower Shaft; Shaft, Steering Shaft U Joint
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet SSR Intermediate Shaft Part Number: 15103083
Product Specifications
- Other Name: Shaft, Steering Column Intermediate; Steering Shaft; Upper Shaft
- Position: Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS

Chevrolet SSR Steering Shaft

Want to cut long-term maintenance and repair costs? Choose OEM Steering Shaft. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet SSR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet SSR Steering Shaft includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Steering Shaft is an integral part, which makes a great impact on the revision of the Chevrolet SSR, the numerous hardtop retractable convertible pickup automobile which was manufactured and sold by Chevrolet between the years 2003 to 2006. This Steering Shaft relays the force exerted by the steering wheel to the steering gearbox so that the driver is in tight control of the car's direction, or the wheels, significantly. Known for their efficiency, the Steering Shaft uses good quality material to ensure that the users can use it for long without having to worry about it breaking down. Compliance with different types of SSR models, whether the modified 2003-2004 or 2005-2006 ones, remains a perfect way to preserve the identity of those vehicles. Maintenance of the Steering Shaft is essential if any problem arises, the driver and all passengers feel they are struggling to control the vehicle's wheel or notice any squeaking sounds in that area. Steering Shaft is the critical component responsible for the effectiveness and stability of steering of the SSR and, therefore, the comfort and safety of driving. Precision engineering and strength are the special factors of the Steering Shaft in the market, thereby making it a favorite of SSR consumers. Finally, the Steering Shaft represents the American manufacturing quality and safety, so every driving in the Chevrolet SSR is a pleasure.

Chevrolet SSR Steering Shaft Parts Questions & Experts Answers

Intermediate Shaft
15114832
Q: How to replace the upper intermediate steering shaft on Chevrolet SSR?
A:
Before replacing the upper intermediate Steering Shaft you must first confirm that both front wheels face forward and the Steering Column is secured in place. After placing the Steering Column lock pin (J 42640) in the lower trim cover access hole you can lock the Steering Column. Place the vehicle on supports then remove the pinch bolt which joins the upper intermediate to the lower intermediate shaft. Disconnect the upper intermediate shaft from its lower counterpart and put the vehicle into a lowered position. After removal of the knee bolster bracket write down how the upper intermediate shaft points to the Steering Column pinch bolt for proper reinstallation. Use the pinch bolt to remove the upper intermediate shaft from the Steering Column and then separate the upper intermediate shaft from the column. To install the new upper intermediate shaft connect it between the Steering Column. When reinstalling the pinch bolt it must face in the original direction so that it stays away from the Steering Column housing. After reinstalling the knee bolster bracket tighten the upper intermediate shaft to Steering Column pinch bolt nut at 50 nm (37 ft. Lbs.). Reposition the vehicle while you join the upper intermediate shaft to the lower intermediate shaft then torque the pinch bolt connecting these components to 50 nm (37 ft. Lbs.). To complete the process lower the vehicle then remove the Steering Column lock pin (J 42640).
