Make sure this part fits

GM 20787606
Shift Control Cable

2007-2013 GM

Customer Questions & Expert Answers (3)
GM 20787606 Shift Control Cable
GM 20787606 Shift Control Cable
GM 20787606 Shift Control Cable
GM 20787606 Shift Control Cable
GM 20787606 Shift Control Cable
  • Part Description
    Cable Assembly-Automatic Transmission Range Selector Lever (At Transmission); Automatic Transmission Shifter Cable
  • Manufacturer
    General Motors
Make sure this part fits
$46.89 MSRP: $79.81
You Save: $32.92 (42%)
Ships in 1-2 Business Days
1
ADD TO CART

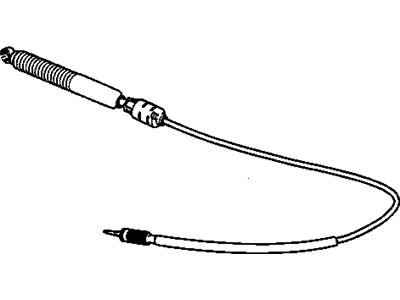

  • 2008 Chevy Suburban 1500 Shift Control Cable Diagram for 20787606
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 20787606

  • Vehicle Fitment

    Year Make Model Trim Engine
    2007-2008 Cadillac EscaladeBase, Platinum8 Cyl 6.2 L GAS
    2007-2008 Cadillac Escalade ESVBase, Platinum8 Cyl 6.2 L GAS
    2010-2013 Chevrolet Silverado 1500Hybrid, LS, LT, LTZ, WT, XFE6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.2 L FLEX
    2007-2008 Chevrolet Suburban 1500LS, LT, LTZ8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2007-2008 Chevrolet Suburban 2500LS, LT, LTZ8 Cyl 6.0 L GAS
    2007-2008 Chevrolet TahoeLS, LT, LTZ8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
    2010-2013 GMC Sierra 1500Denali, Hybrid, SL, SLE, SLT, WT, XFE6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.2 L FLEX
    2007-2008 GMC YukonDenali, SLE, SLT8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
    2007-2008 GMC Yukon XL 1500Denali, SLE, SLT8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
    2007-2008 GMC Yukon XL 2500SLE, SLT8 Cyl 6.0 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Can you help me check if this 20787606 is the right part for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 20787606 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Automatic Transmission Range Selector Shift Cable on Cadillac Escalade? Posted by Customer
    A:
    The first step for Shift Cable replacement requires positioning the Steering Column shift lever to park position followed by instrument panel knee bolster and driver seat removal. The first task includes pulling back carpet and insulation from the driver side while removing the retainer that holds the cable to the Steering Column. When replacing the Shift Cable users must detach the cable end from the Steering Column ball stud while depressing the tangs to disengage the cable from the Steering Column bracket and must keep the Shift Cable free from unnecessary bending or twisting. Eliminate the Shift Cable from both the support and the cable grommet of the floor panel. The operator should first raise and support the vehicle and then detach the clips securing the cable to the floor panel reinforcement while the manual transmission shaft rests in mechanical park position. Removal of cable clip on the Transfer Case then separation of Shift Cable from transmission range selector lever ball stud is necessary for equipped vehicles. After removing the bracket-retaining retainer you should depress the tangs of the cable to extract it from the bracket and place the Shift Cable outside the vehicle. Install the Shift Cable on the vehicle while maintaining manual transmission shaft lever at mechanical park. The Shift Cable receives installation on the bracket before use of the retainer for cable fixation. Connect the Shift Cable end to the ball stud of the selector lever after installing the cable clip to the Transfer Case if equipped. You must instantly attach the cable clips to the floor panel reinforcement and until the vehicle reaches ground level while the Steering Column shift lever stays in the park position. Install the cable grommet to the floor panel positioning it correctly before securing the cable to its support and Steering Column bracket where tang engagement should be complete. After attaching the cable end to the Steering Column ball stud install the retainer on the Steering Column before moving forward with reinstallation of carpet and insulation near the driver area followed by driver seat installation and instrument panel knee bolster. Check the transmission shift function while also adjusting the cable to reach every operating position.
    Posted by ChevyPartsGiant Specialist
    Q:
    What needs to be done after reinstalling the driver's seat for the 2010 Chevrolet Silverado 1500? Posted by Customer
    A:
    Raise the vehicle again, align and install the cable to the bracket, connect the range selector cable end to the transmission range selector lever ball stud, and if equipped, attach the cable clip on the transfer case.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Shift Cable
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Shift Control Cable 20787606 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 20787606 Shift Control Cable is available in the market under the name GM Shift Cable. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 20787606 Shift Control Cable fits certain Chevrolet Tahoe, Silverado 1500, Suburban 1500 models, as well as GMC Sierra 1500, Yukon, Yukon XL 1500. Additionally, it is compatible with Cadillac Escalade, Escalade ESV models.
The original GM component designated by manufacturer part number 20787606 maintains top performance when functioning as the Cable Assembly-Automatic Transmission Range Selector Lever (At Transmission); Automatic Transmission Shifter Cable unit. The component 20787606 is constructed from durable material and its dimensions span 3.4 x 13.8 x 13.1 inches while weighing 1.00 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Cable, Transmission Control Cable. The part 20787606 has available replacement options. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
If you want to save money in the long run on maintenance and repairs, you should choose OEM products because they're of the top level of durability. Are you on the quest of finding GM parts, our site is worth a visit. We stock an endless selection of high-quality GM components including things like ignition coils all the way through to fan shrouds and all at prices that can not be matched. You have nothing to worry about because all our OEM parts are covered with a manufacturer warranty, which guarantees superior quality and value.
