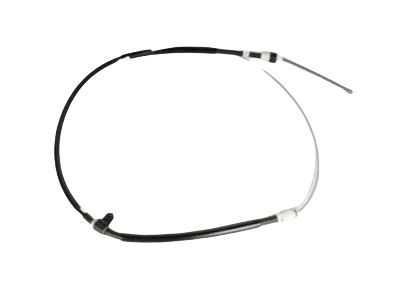

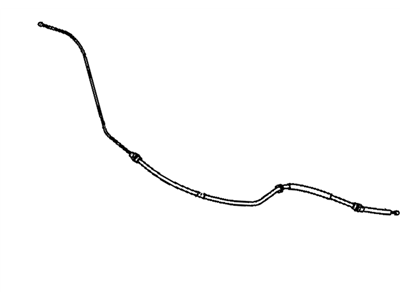

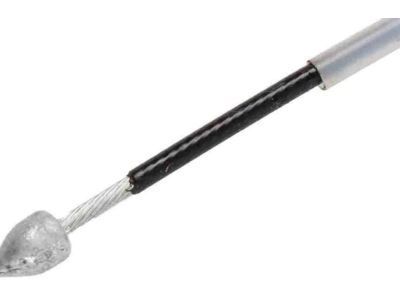

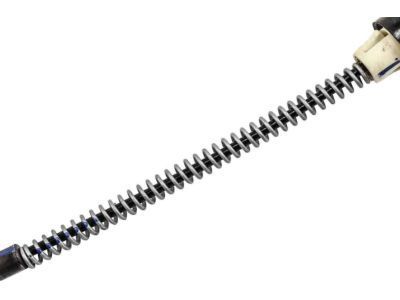

GM 25836299
Rear Cable

The first step to repair the front park brake cable involves extracting the front floor console storage compartment. Utilizing only hand tools detach the park brake cable adjusting nut while keeping the adjusting washer by maintaining the park brake lever at its released position. The front park brake cable should be removed by first detaching the rear park brake cable ends from the cable equalizer then pulling the front cable rearward from the park brake lever. The installation process starts with hanging the front park brake cable to the park brake lever and completing the rear cable ends attachment to the cable equalizer. Only hand tools must be used to install the washer and new adjusting nut onto the front park brake cable before cable tension adjustment and front floor console storage compartment reinstallation.

The first step to change the Disc-type parking brake rear cable involves removal of the console rear trim plate. The first step is to loosen the adjusting nut until tension is reduced in the front cable. You should disengage the correct rear park brake cable end by releasing it from the cable equalizer and lift the vehicle before installation. Release the tab on the underbody retainer when reusing the cable but remove the cable entirely when using a new one. Apply careful prying pressure to the edge of the C-shaped retainer of the park brake cable to detach it from the bracket at the rear axle trailing arm pivot before pulling out the cable from the cable guide tube. Start by removing the tire and wheel and then detach the cable end from the caliper park brake lever before using a flat-bladed screwdriver to unlock the retaining tabs on the park brake cable fitting and separate it from the cable bracket. Begin by removing the bolt from the rear park brake cable guide then uninstall the cable. To install the park brake cable insert it through the caliper cable bracket followed by assembly of the rear park brake cable guide retaining bolt while it reaches 10 Nm of torque (89 lb in) before securely fastening the cable fitting into the cable bracket ensuring the retaining tabs properly seat. You must hook up the cable terminal to the caliper park brake lever while you reinstall the rear tire combined with wheel assembly before guiding the park brake cable inside the cable guide tube. The C-shaped retainer should be installed on the park brake cable before placing it inside the bracket at the rear axle trailing arm pivot. The procedure for new cables requires attachment of the underbody retainer to the vehicle body but reused cables must be placed on the underbody retainer with tab activation. Lower the vehicle while connecting the park brake cable end to the equalizer followed by tension adjustment and lastly installing the console rear trim plate.

Insert the new park brake cable through the cable bracket on the caliper and secure it with the rear park brake cable guide retaining bolt, tightening it to 10 Nm (89 inch lbs.).

Release the rear park brake cable body pass-thru grommet and raise the vehicle.

Loosen the adjusting nut on the front cable threaded rod using only hand tools.

Install it to the underbody retainer and press the tab into place.

Secure it to the vehicle underbody opening.

Install and secure it to the vehicle underbody opening.

Carefully pry the C-shaped retainer off the cable without pulling on it, then remove the cable.

Begin by removing the console rear trim plate.

Detach the underbody retainer from the vehicle.

Adjust the rear drum brakes, install the brake drum, and the rear tire and wheel assembly.

Remove the rear tire and wheel assembly.
