Make sure this part fits

GM 19130449
Transmission Cooler

2004-2011 GM

Customer Questions & Expert Answers (15)

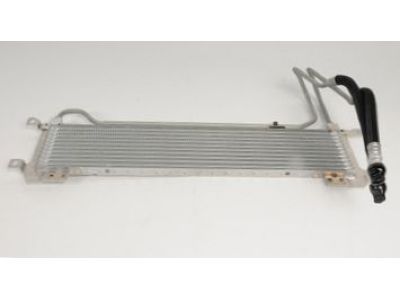

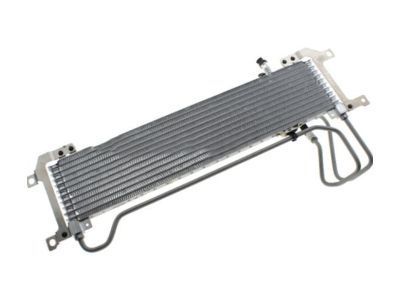

GM 19130449 Transmission Cooler
GM 19130449 Transmission Cooler
GM 19130449 Transmission Cooler
GM 19130449 Transmission Cooler
GM 19130449 Transmission Cooler
  • Part Description
    Cooler, Transmission Oil Cooler; Automatic Transmission Oil Cooler
  • Replaces
    89022522
  • Manufacturer
    General Motors
Make sure this part fits
$266.65 MSRP: $398.59
You Save: $131.94 (34%)
Ships in 1-2 Business Days
1
ADD TO CART

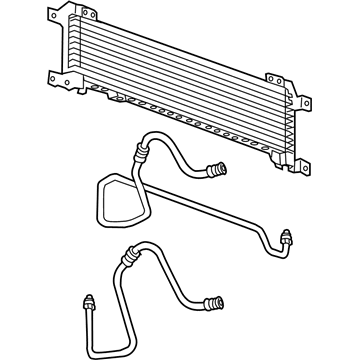

  • 19130449 Transmission Cooler is Ref No. 1 in the diagram below

    2009 Cadillac SRX Transmission Cooler Diagram for 19130449
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 19130449

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2009 Cadillac SRXBase6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
    2005-2011 Cadillac STSBase, Platinum6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 19130449 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 19130449 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Transmission Oil Cooler in the 6L50/6L80/6L90 automatic transmission on Cadillac SRX? Posted by Customer
    A:
    To replace the engine oil and transmission fluid cooler in 6l50/6l80/6l90 automatic transmission, start by unbolting the A/C Condenser mounting bolts to move the condenser in order to work at the oil cooler. Please use the cooler quick connect tool (J 41623-B) to remove the Transmission Oil Cooler (TOC) lines from the Transmission Oil Cooler, and then remove the toc lines from the toc retainer clip. Next, use the 1/2 inch quick connect release tool (DT-47731) to remove the Engine Oil Cooler (EOC) lines from the cooler and remove the eoc lines from the cooler retainer clips. Then, remove the cooler mounting bolts and remove the cooler as well. For installation, set the cooler back into place and install the cooler mounting bolts with a tightening torque of 5 n.m (44 lb in). Attach the eoc lines to the cooler and attach the eoc lines to the eoc retaining clips and then the toc line to the Transmission Oil Cooler and then attach the toc line retention clip to the Transmission Oil Cooler. Lastly, reposition and mount the condenser.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Transmission Oil Cooler in the 6L50/6L80/6L90 automatic transmission on Cadillac STS? Posted by Customer
    A:
    To change the engine oil and trans fluid cooler on the 6l50/6l80/6l90 automatic transmission, start by removing the A/C Condenser mounting bolts to move the condenser out the way to access the cooler. Use the cooler quick connect tool (J 41623-B) to disconnect the Transmission Oil Cooler (TOC) lines from the Transmission Oil Cooler, then disconnect toc lines from the toc retainer clip. Then, use the 1/2 inch quick connect release tool (DT-47731) to release the Engine Oil Cooler (EOC) lines of the cooler and take off the eoc lines from the cooler retainer clips. Do that, then remove the cooler mounting bolts and take out the cooler. To install the cooler, place it back in position, fix the cooler mounting bolts with right tightening to 5 n.m (44 lb in). While completing this task, attach the eoc lines to the cooler and attach to the eoc retaining clips before attaching the toc lines to the Transmission Oil Cooler and attaching the toc line to the toc retainer clip. Lastly, reposition and install condenser.
    Posted by ChevyPartsGiant Specialist
    Q:
    How should the new TOC be installed for the 2004 Cadillac SRX? Posted by Customer
    A:
    Place the new TOC in position and secure it with the mounting bolts, tightening them to 5 Nm (44 inch lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    What is the first step in the installation process of the new TOC for the 2008 Cadillac SRX? Posted by Customer
    A:
    First install the new TOC, ensuring to follow the Fastener Notice.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    How do you install the cooler for the 2009 Cadillac STS? Posted by Customer
    A:
    Place the cooler back in position and install the cooler mounting bolts, tightening them to 5 Nm (44 lb in).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    How do you disconnect the transmission oil cooler (TOC) lines for the 2006 Cadillac STS? Posted by Customer
    A:
    Use the Cooler Quick Connect Tool (J 41623-B) to disconnect the TOC lines from the TOC, and then disconnect the TOC lines from the TOC retainer clip.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    What should be done after disconnecting the EOC lines for the 2007 Cadillac SRX? Posted by Customer
    A:
    Remove the EOC lines from the cooler retainer clips, then remove the cooler mounting bolts and take out the cooler.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    What is the next step after disconnecting the TOC lines for the 2006 Cadillac SRX? Posted by Customer
    A:
    Remove the TOC mounting bolts and then the TOC itself.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    How do you disconnect the transmission oil cooler (TOC) lines for the 2008 Cadillac STS? Posted by Customer
    A:
    Use the Cooler Quick Connect Tool (J 41623-B) to disconnect the TOC lines from the TOC, and then disconnect the TOC lines from the TOC retainer clip.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    What is the first step to replace the engine oil and transmission fluid cooler for the 2010 Cadillac STS? Posted by Customer
    A:
    Remove the A/C condenser mounting bolts and reposition the condenser to access the oil cooler.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    What is the final step in the process for the 2009 Cadillac SRX? Posted by Customer
    A:
    Reposition and reinstall the condenser.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    What is the next step after installing the new TOC for the 2005 Cadillac STS? Posted by Customer
    A:
    Connect the TOC lines to the TOC, ensuring the fittings are tightened to 20 Nm (15 ft. lbs.), and reconnect the TOC line to the TOC retainer clip.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    What is the next step after disconnecting the TOC lines for the 2007 Cadillac STS? Posted by Customer
    A:
    Remove the TOC mounting bolts and take out the TOC.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    Q:
    What should be done after gathering the tools for the 2005 Cadillac SRX? Posted by Customer
    A:
    Remove the condenser.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Transmission Cooler 19130449 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 19130449 Transmission Cooler is available in the market under the name GM Transmission Oil Cooler. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 19130449 Transmission Cooler fits certain Cadillac SRX, STS models.
The original GM component designated by manufacturer part number 19130449 maintains top performance when functioning as the Cooler, Transmission Oil Cooler; Automatic Transmission Oil Cooler unit. The component 19130449 is constructed from durable material and its dimensions span 8.2 x 34.7 x 18.7 inches while weighing 3.20 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. The part 19130449 has available replacement options 89022522. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
