Make sure this part fits

GM 15090722
Transmission Support

2002-2009 GM

Customer Questions & Expert Answers (13)

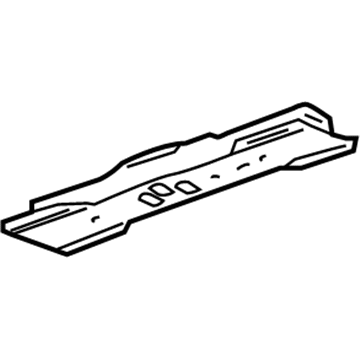

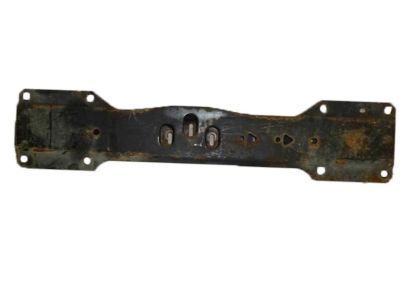

GM 15090722 Transmission Support
GM 15090722 Transmission Support
GM 15090722 Transmission Support
GM 15090722 Transmission Support
  • Part Description
    Crossmember, Transmission Support; Transfer Case Mount; Transmission Mount
  • Replaces
    15020364
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

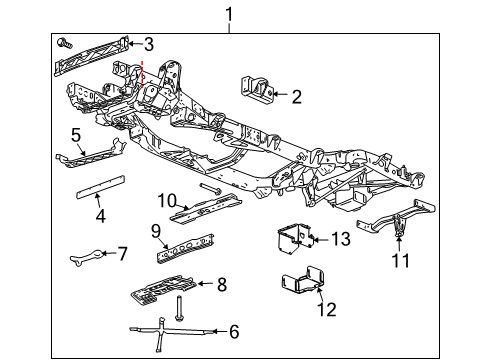

  • 15090722 Transmission Support is Ref No. 10 in the diagram below

    2003 Chevy SSR Transmission Support Diagram for 15090722
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 15090722

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2007 Buick RainierCXL, CXL Plus6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2003-2006 Chevrolet SSRBase8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2002-2009 Chevrolet TrailblazerBase, LS, LT, LTZ, North Face, SS6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2002-2006 Chevrolet Trailblazer EXTLS, LT, North Face6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2002-2009 GMC EnvoyDenali, SLE, SLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2002-2006 GMC Envoy XLDenali, SLE, SLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2004-2005 GMC Envoy XUVSLE, SLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2002-2004 Oldsmobile BravadaBase6 Cyl 4.2 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 15090722 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 15090722 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the front cross-member for the steering gear on Buick Rainier? Posted by Customer
    A:
    First, to lower the car while lifting the vehicle, enable the vehicle's wheels to slide along the relevant concentrated sides of the hoisting support according to the lift's elevating height degrees estimation. Unbolt the engine shield mounting bolts, then remove the engine shield. Subsequently, remove the rear lower Control Arm Bracket to frame mounting bolts and the steering gear crossmember mounting bolts to remove the steering gear crossmember. During the installation, start with the steering gear crossmember and make sure that you read the fastener notice in service precautions. Tighten the steering gear crossmember with its mounting bolts, to 50 n.m (37 lb ft). Then, bolt the rear lower Control Arm Bracket to frame mounting bolts while tightening them to 240 n.m (177 lb ft). After that, replace the engine shield and mounting bolts, tightening to 25 n.m (18 lb ft), and, ultimately, lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the front cross-member in a 4WD on GMC Envoy? Posted by Customer
    A:
    To replace the transmission cross member on a 4wd vehicle, one must jack it up and apply support to the transmission with a suitable stand or jack before starting such procedures. Take off the nuts that hold the transmission mount to the transmission support, then raise the transmission. Next, remove the vertical bolts that hold the transmission support from the frame, and the horizontal nuts and bolts securing the transmission support. After removing, take the transmission support from frame. For installation, set the transmission support back on the contour of the frame and loosely mount horizontal nuts and bolts. It is essential to follow the fastener notice in service precautions. Next, roughly mount the vertical bolts holding the transmission support. Tighten horizontal nuts to 50 n.m (37 lb ft) and horizontal bolts 100 n.m (74 lb ft). Reduce the transmission, attach the nuts to transmission mount, eliminate the stand or jack, and lastly lower the automobile.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the front cross-member for the steering gear on Chevrolet Trailblazer? Posted by Customer
    A:
    Before attempting to replace the steering gear crossmember at the front with a new one, first raise and support the vehicle. Take out the engine shield mounting bolts and remove the engine shield. Then remove the rear lower Control Arm Bracket to frame mounting bolts, and the steering gear cross member mounting bolts to disconnect the steering gear cross member. For installation, first put your steering gear crossmember in place, and remember the fastener notice in service precautions. Secure the steering gear crossmember mounting bolts to a torque of 50 n.m (37 lb ft), then attach the rear lower Control Arm Bracket to frame mounting bolts, attach the rear lower Control Arm Bracket to frame mounting bolts to 240 n.m (177 lb ft). Replace the engine shield and its mounting bolts and tighten the bolts to 25 n.m (18 lb ft) and then lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    Q:
    How do you install the new radiator crossmember for the 2004 Chevrolet SSR? Posted by Customer
    A:
    Position the radiator crossmember onto the frame and ensure to follow the Fastener Notice for proper guidance.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Front Cross-Member
    Q:
    What is the next step after removing the front crossmember brace for the 2005 Chevrolet SSR? Posted by Customer
    A:
    Take out the rear lower control arm bracket to frame mounting bolts.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Front Cross-Member
    Q:
    What is the first step to replace the radiator crossmember for the 2005 Chevrolet SSR? Posted by Customer
    A:
    Raise and support the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Front Cross-Member
    Q:
    What is the next step after tightening the steering gear crossmember mounting bolts for the 2006 Chevrolet SSR? Posted by Customer
    A:
    Install the rear lower control arm bracket to frame mounting bolts and tighten them to 240 N.m (177 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Front Cross-Member
    Q:
    What should be done after placing the steering gear crossmember for the 2004 Chevrolet SSR? Posted by Customer
    A:
    Install the steering gear crossmember mounting bolts and tighten them to 50 N.m (37 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Front Cross-Member
    Q:
    What is the torque specification for the engine shield mounting bolts for the 2005 Buick Rainier? Posted by Customer
    A:
    Tighten them to 25 N.m (18 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Front Cross-Member
    Q:
    What should be removed after raising for the 2009 Chevrolet Trailblazer? Posted by Customer
    A:
    Remove the engine shield mounting bolts and then the engine shield.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Front Cross-Member
    Q:
    What is the next step after removing the engine shield for the 2007 GMC Envoy? Posted by Customer
    A:
    Take out the rear lower control arm bracket to frame mounting bolts.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Front Cross-Member
    Q:
    What should be followed during the installation process for the 2002 Chevrolet Trailblazer? Posted by Customer
    A:
    Follow the Fastener Notice in Service Precautions.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Front Cross-Member
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Transmission Support 15090722 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 15090722 Transmission Support is available in the market under the name GM Front Cross-Member. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 15090722 Transmission Support fits certain Chevrolet SSR, Trailblazer, Trailblazer EXT models, as well as GMC Envoy, Envoy XL, Envoy XUV. Additionally, it is compatible with Buick Rainier and Oldsmobile Bravada models.
The original GM component designated by manufacturer part number 15090722 maintains top performance when functioning as the Crossmember, Transmission Support; Transfer Case Mount; Transmission Mount unit. The component 15090722 is constructed from durable material and its dimensions span 7.8 x 36.8 x 3.5 inches while weighing 10.90 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Trans Crossmember; Crossmember, Transmission Mounting. The part 15090722 has available replacement options 15020364. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
