GM 12597417
Chain Guide

2004-2023 GM

Customer Questions & Expert Answers (43)

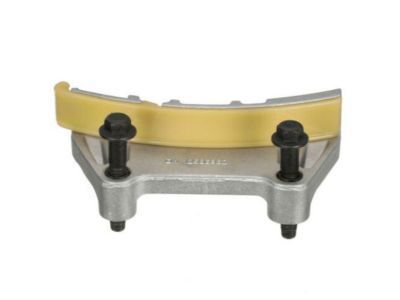

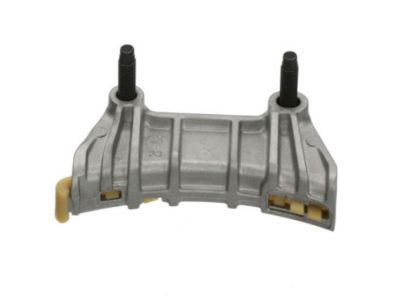

GM 12597417 Chain Guide
GM 12597417 Chain Guide
  • Part Description
    Guide, Timing Chain; Timing Chain Guide
  • Manufacturer
    General Motors
Make sure this part fits
$21.96 MSRP: $36.16
You Save: $14.20 (40%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Vehicle Fitment

    Year Make Model Trim Engine
    2008-2021 Buick EnclaveAvenir, Base, Convenience, CX, CXL, Essence, Leather, Preferred, Premium6 Cyl 3.6 L GAS
    2010-2016, 2005-2008 Buick LaCrosseBase, Convenience, CX, CXL, CXS, Leather, Premium, Sport Touring, Touring6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
    2004-2006 Buick RendezvousCX, CXL, CXL Plus, Ultra6 Cyl 3.6 L GAS
    2013-2019 Cadillac ATSLuxury, Performance, Premium, V6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
    2022 Cadillac CT4V Blackwing6 Cyl 3.6 L GAS
    2016-2019, 2004-2007 Cadillac CTSBase, Vsport, Vsport Premium, Vsport Premium Luxury6 Cyl 2.8 L GAS, 6 Cyl 3.6 L GAS
    2004-2016 Cadillac SRXBase, Luxury, Performance, Premium6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
    2005-2011 Cadillac STSBase, Platinum6 Cyl 3.6 L GAS
    2013-2019 Cadillac XTSBase, Livery, Luxury, Platinum, Premium, Premium Luxury, Vsport Platinum, Vsport Premium, Vsport Premium Luxury6 Cyl 3.6 L GAS
    2010-2015 Chevrolet CamaroLS, LT6 Cyl 3.6 L GAS
    View More
    Warning: California's Proposition 65
  • Customer Questions & Expert Answers

    Q:
    Is this 12597417 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 12597417 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the LH secondary camshaft Timing Chain Guide on Buick LaCrosse? Posted by Customer
    A:
    You must remove the spark plugs first before rotating the Crankshaft in order to replace the left Timing Chain Guide. After that, you must detach the engine front cover. The first step should include taking off the left bank Timing Chain Tensioner followed by removing the left bank Timing Chain Guide. The installer should start by putting the left bank Timing Chain Guide into position followed by installing the left bank Timing Chain Tensioner. The repair process needs spark plugs along with the engine front cover to be installed.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the right side secondary timing chain guide on Cadillac SRX? Posted by Customer
    A:
    First step to replace the right side secondary Timing Chain Guide consists of removing spark plugs to enable crankshaft rotation. Begin by removing the engine front cover as a next step. Proceed with the removal of right bank secondary camshaft drive chain tensioner after taking out the right bank secondary camshaft drive chain guide. Right bank secondary camshaft drive chain guide should be the first component installed before adding the right bank secondary camshaft drive chain tensioner. The repair process ends with placing back the engine front cover together with the spark plugs. Follow the correct equipment recommendations starting with Spark Plug replacement (SP-123) then engine front cover replacement (EFC-456) followed by secondary Timing Chain Tensioner removal - right side (STCT-789) then secondary Timing Chain Guide removal - right side (STCG-101) then secondary Timing Chain Guide installation - right side (STCG-102) as well as secondary Timing Chain Tensioner installation - right side (STCT-103).
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the primary upper timing chain guide on Chevrolet Camaro? Posted by Customer
    A:
    The appropriate tools need to be used to remove the engine front cover before replacing the primary upper Timing Chain Guide. First, remove the primary camshaft drive chain tensioner before proceeding with the removal of the primary upper camshaft drive chain guide. Follow this procedure to install the new primary upper camshaft drive chain guide by first positioning it correctly before setting the primary camshaft drive chain tensioner back in place. The installation ends with engine front cover reinstallation to finish the procedure.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the primary timing chain guide on Cadillac STS? Posted by Customer
    A:
    The procedure for replacing the Timing Chain Guide requires complete removal of the right side secondary camshaft drive chain followed by taking off the left side secondary camshaft drive chain. The procedure requires removal of the right side secondary camshaft drive chain shoe and guide before proceeding with the left side secondary camshaft drive chain shoe and guide. First remove the oil outlet tube from the engine followed by the Timing Chain Tensioner and the engine block bolts which secure the Timing Chain Guide. Lastly take out the Timing Chain Guide itself. A thorough cleaning followed by inspection has to take place for the camshaft timing drive components. Installation of the Timing Chain Guide begins by installing retaining bolts then tightening them to 25 nm (18 ft. Lbs.) before fitting the Timing Chain Tensioner. The engine installation requires the oil outlet tube first followed by left side and right side secondary camshaft drive chain guides and shoes. Install the left and right side secondary camshaft drive chains as the final step.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the final step in the process for the 2010 Buick LaCrosse? Posted by Customer
    A:
    Reinstall the engine front cover with the Engine Front Cover Replacement (Tool Required: Engine Front Cover Tool).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be done after removing the engine front cover for the 2009 Buick Enclave? Posted by Customer
    A:
    Take out the spark plugs to facilitate easier rotation of the crankshaft.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the first step in the installation process for the 2007 Buick LaCrosse? Posted by Customer
    A:
    Place the right bank secondary camshaft drive chain guide.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be installed after the new primary upper camshaft drive chain guide for the 2009 Buick Enclave? Posted by Customer
    A:
    The primary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be installed after the right bank secondary camshaft drive chain guide for the 2010 Buick Enclave? Posted by Customer
    A:
    Install the right bank secondary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What tool is required for engine front cover replacement for the 2010 Buick LaCrosse? Posted by Customer
    A:
    Socket Set.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be installed after the new chain guide for the 2008 Buick Enclave? Posted by Customer
    A:
    Install the right bank secondary camshaft drive chain tensioner (part number 12345).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the final step in the process for the 2008 Buick LaCrosse? Posted by Customer
    A:
    Reinstall the engine front cover.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    Which component should be removed after the tensioner for the 2008 Buick Enclave? Posted by Customer
    A:
    The left bank secondary camshaft drive chain guide.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be installed after the primary upper camshaft drive chain guide for the 2005 Buick LaCrosse? Posted by Customer
    A:
    Install the primary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What are the final steps after installation for the 2006 Buick LaCrosse? Posted by Customer
    A:
    Reinstall the spark plugs and the engine front cover.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be removed after the engine front cover for the 2005 Cadillac CTS? Posted by Customer
    A:
    Take out the left bank secondary camshaft drive chain tensioner and the left bank secondary camshaft drive chain guide.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be installed after the chain guide during installation for the 2004 Cadillac SRX? Posted by Customer
    A:
    The right bank secondary camshaft drive chain tensioner (Tensioner).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the first step in the installation process for the 2007 Cadillac CTS? Posted by Customer
    A:
    Install the right bank secondary camshaft drive chain guide.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    How do you begin the installation of the new primary upper camshaft drive chain guide for the 2010 Cadillac STS? Posted by Customer
    A:
    Place the new primary upper camshaft drive chain guide in position.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be installed after placing the chain guide for the 2007 Cadillac STS? Posted by Customer
    A:
    Install the left bank secondary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be done after removing the engine front cover for the 2009 Cadillac SRX? Posted by Customer
    A:
    Take out the primary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the first step to replace the left secondary timing chain guide for the 2005 Cadillac SRX? Posted by Customer
    A:
    Remove the engine front cover.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be done to the primary camshaft drive chain guide for the 2007 Cadillac SRX? Posted by Customer
    A:
    Detach the bolts securing the primary camshaft drive chain guide to the engine block and remove the guide itself.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the next component to remove after the tensioner for the 2010 Cadillac SRX? Posted by Customer
    A:
    Remove the left bank secondary camshaft drive chain guide.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the next component to remove after the tensioner for the 2009 Cadillac STS? Posted by Customer
    A:
    The left bank secondary camshaft drive chain guide (part number: 67890).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the next component to remove after the primary camshaft drive chain tensioner for the 2008 Cadillac SRX? Posted by Customer
    A:
    Remove the primary upper camshaft drive chain guide (Fourth Design).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the next step after removing the left exhaust oil control valve for the 2007 Cadillac SRX? Posted by Customer
    A:
    Slide the left exhaust camshaft actuator off the camshaft, disengage the sprocket teeth from the secondary timing chain, and remove the actuator.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What are the final steps after installation for the 2007 Cadillac STS? Posted by Customer
    A:
    Reinstall the spark plugs and the engine front cover.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be installed after placing the new chain guide for the 2010 Chevrolet Camaro? Posted by Customer
    A:
    Install the left bank secondary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be done after removing the actuator for the 2005 Cadillac STS? Posted by Customer
    A:
    Remove the secondary camshaft drive chain guide bolt and the left secondary camshaft drive chain guide, then clean and inspect the camshaft timing drive components.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the final step after installing the lower guide for the 2008 Cadillac STS? Posted by Customer
    A:
    Reinstall the primary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be removed after the engine front cover for the 2010 Chevrolet Camaro? Posted by Customer
    A:
    The right bank secondary camshaft drive chain tensioner (part number 123456).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be installed after placing the chain guide for the 2006 Cadillac SRX? Posted by Customer
    A:
    Install the left bank secondary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be done before proceeding with installation for the 2006 Cadillac STS? Posted by Customer
    A:
    Clean and inspect the camshaft timing drive components.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the next step after removing the spark plugs for the 2010 GMC Acadia? Posted by Customer
    A:
    Remove the left bank secondary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the first step in the installation process for the 2006 Cadillac CTS? Posted by Customer
    A:
    Install the primary upper camshaft drive chain guide.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the first step to replace the right secondary camshaft drive chain guide for the 2009 Chevrolet Traverse? Posted by Customer
    A:
    Remove the engine front cover using the appropriate tools.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be removed after the engine front cover for the 2010 Chevrolet Traverse? Posted by Customer
    A:
    The primary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be installed after placing the chain guide for the 2007 GMC Acadia? Posted by Customer
    A:
    Install the left bank secondary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What should be installed after positioning the chain guide for the 2007 GMC Acadia? Posted by Customer
    A:
    The right bank secondary camshaft drive chain tensioner.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the first step to replace the primary camshaft drive chain guide (Upper) for the 2008 GMC Acadia? Posted by Customer
    A:
    Remove the spark plugs to facilitate crankshaft rotation.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    Q:
    What is the first step in the installation process for the 2007 GMC Acadia? Posted by Customer
    A:
    Install the primary upper camshaft drive chain guide.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Timing Chain Guide
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Chain Guide 12597417 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 12597417 Chain Guide is available in the market under the name GM Timing Chain Guide. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 12597417 Chain Guide fits certain Chevrolet Colorado, Malibu, Camaro models, as well as GMC Acadia, Canyon, Terrain. Additionally, it is compatible with Cadillac CTS, ATS, SRX and Buick Enclave, LaCrosse, Rendezvous models.
The original GM component designated by manufacturer part number 12597417 maintains top performance when functioning as the Guide, Timing Chain; Timing Chain Guide unit. The component 12597417 is constructed from durable material and its dimensions span 6.3 x 3.2 x 3.1 inches while weighing 0.40 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Guide; Damper; Guide, Engine Timing. The part 12597417 has available replacement options. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
If you want to save money in the long run on maintenance and repairs, you should choose OEM products because they're of the top level of durability. Are you on the quest of finding GM parts, our site is worth a visit. We stock an endless selection of high-quality GM components including things like ignition coils all the way through to fan shrouds and all at prices that can not be matched. You have nothing to worry about because all our OEM parts are covered with a manufacturer warranty, which guarantees superior quality and value.
