Make sure this part fits

GM 89047645
Position Sensor

2004-2013 GM

Customer Questions & Expert Answers (13)

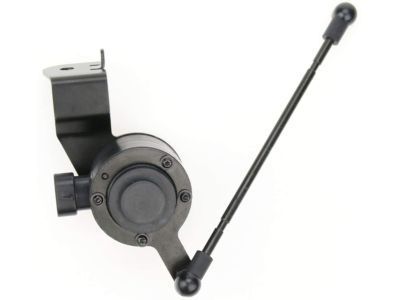

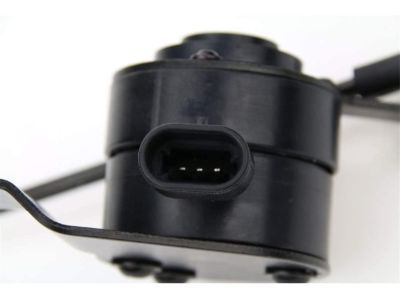

GM 89047645 Position Sensor
GM 89047645 Position Sensor
  • Part Description
    Sensor Assembly, Electronic Suspension Rear Position (W/Accelerometer); Ride Height Sensor
  • Position
    Rear
  • Manufacturer
    General Motors
Make sure this part fits
$299.13 MSRP: $536.56
You Save: $237.43 (45%)
Currently Unavailable

Due to manufacturer supply shortage, this item isn't currently available for ordering.

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2009 Cadillac XLRBase, Platinum, V8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
    2005-2013 Chevrolet Corvette427, 427 Limited Edition Z06, Base, Grand Sport, Z06, Z06 Carbon, ZR18 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
    Warning: California's Proposition 65
  • Customer Questions & Expert Answers

    Q:
    Is 89047645 compatible with my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 89047645 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the front Ride Height Sensor on Cadillac XLR? Posted by Customer
    A:
    The first step to change the Electronic Suspension Front Position Sensor requires turning OFF the ignition switch while using a suitable safety stand to lift the vehicle. You should begin by removing the tire and wheel assembly as well as disconnecting the electronic suspension control (ESC) position sensor harness connector. The process starts with removing the position sensor link from its attachment to the control arm link stud. After that, install a wrench to disconnect the position sensor mounting bolts before extracting the position sensor from the vehicle. Install the new position sensor by putting it into the vehicle while following the Fastener Notice for correct installation steps. Secure mounting bolts of the position sensor while using a torque wrench to tighten them to 3 N.m (26 lb in). Then attach the position sensor link to the control arm link stud and reconnect the ESC position sensor harness connector. After completing the above steps you need to reinstall the tire with wheel assembly after lowering the vehicle.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to Service and Repair the Ride Height Sensor on Cadillac XLR? Posted by Customer
    A:
    The first step to replace the Electronic Suspension Front Position Sensor requires users to turn OFF the ignition switch while using a suitable safety stand to lift the vehicle. Start by disconnecting the electronic suspension control (ESC) position sensor harness connector while the tire along with wheel assembly is removed from the vehicle. The position sensor link needs removing from the control arm link stud before the position sensor mounting bolts and finally extracting the position sensor from the vehicle. Install the new position sensor throughout the vehicle process while keeping in mind all fastener caution measures. Position sensor link mounting bolts should be tightened to 3 Nm (26 lb in) before installing the position sensor link onto the control arm link stud followed by reconnecting the ESC position sensor harness connector. After installation of the tire and wheel assembly users must lower their vehicle.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the first step to replace the Front Position Sensor for the Electronic Suspension for the 2004 Cadillac XLR? Posted by Customer
    A:
    Turn OFF the ignition switch and raise the vehicle on a suitable safety stand.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What needs to be disconnected during the replacement process for the 2008 Cadillac XLR? Posted by Customer
    A:
    Disconnect the electronic suspension control (ESC) position sensor harness connector and the position sensor link from the control arm link stud.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What is the next step after disconnecting the harness connector for the 2009 Cadillac XLR? Posted by Customer
    A:
    Disconnect the position sensor link from the control arm link stud.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What should be done after connecting the harness connector for the 2005 Cadillac XLR? Posted by Customer
    A:
    Reinstall the tire and wheel assembly.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What should be removed after raising the 2007 Cadillac XLR? Posted by Customer
    A:
    Remove the tire and wheel assembly.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What is the first step to replace the Electronic Suspension Rear Position Sensor for the 2008 Chevrolet Corvette? Posted by Customer
    A:
    Turn OFF the ignition switch and raise and support the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What should be removed after disconnecting the position sensor connector for the 2005 Chevrolet Corvette? Posted by Customer
    A:
    Remove the position sensor harness retainers.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What should be removed after raising for the 2010 Chevrolet Corvette? Posted by Customer
    A:
    Remove the tire and wheel assembly.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    How do you detach the position sensor from the control arm for the 2006 Chevrolet Corvette? Posted by Customer
    A:
    Detach the position sensor link from the control arm link stud.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    Q:
    What should be removed after raising for the 2007 Chevrolet Corvette? Posted by Customer
    A:
    Remove the tire and wheel assembly.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Ride Height Sensor
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Position Sensor 89047645 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 89047645 Position Sensor is available in the market under the name GM Ride Height Sensor. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 89047645 Position Sensor fits certain Chevrolet Corvette models, as well as Cadillac XLR models.
The original GM component designated by manufacturer part number 89047645 maintains top performance when functioning as the Sensor Assembly, Electronic Suspension Rear Position (W/Accelerometer); Ride Height Sensor unit at its Rear. The component 89047645 is constructed from durable material and its dimensions span 6.1 x 4.1 x 3.2 inches while weighing 1.60 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Rear Sensor; Sensor, Air Suspension Leveling Or Level Control. The part 89047645 has available replacement options. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
