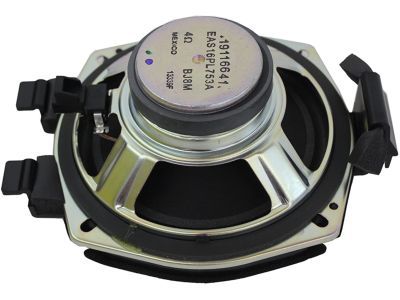

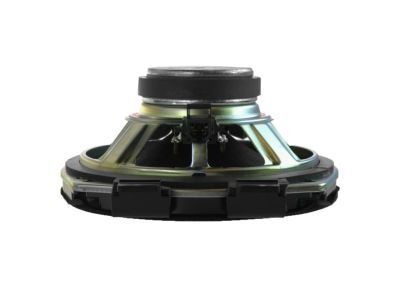

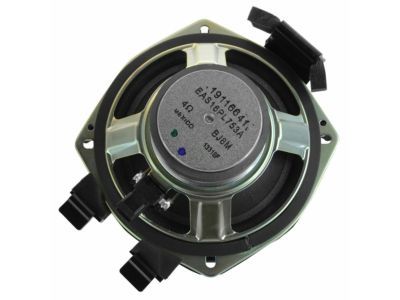

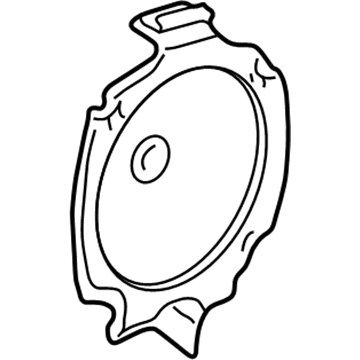

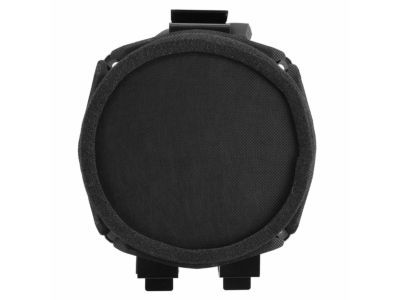

GM 19116641
Front Driver Speaker

The process of replacing the front floor console subwoofer speaker starts by detaching the 2 front seats followed by gently moving the Center Console to separate the wire connector. To reach the subwoofer speaker you must advance the console until you can work on it to unfasten the four retaining bolts and disconnect the wire connector for speaker removal. Insert the new speaker into the subwoofer assembly followed by connecting the wire connector while ensuring proper tightening of the 4 retaining screws to 6 n.m (53 lb in) without threading. Continuing to future progress the console will let you connect the wire connector before reinstalling the console to the i/p and lastly put back the front seats.

The first step to replace front windshield pillar speakers consists of extracting the windshield garnish molding. You must first disconnect the electrical connector from the speaker followed by pushing the speaker out of its molding frame. Insert the new speaker deeply into position then connect the electrical connector followed by the windshield garnish molding reinstallation.

The replacement process of the front floor console subwoofer speaker begins by pulling out both front seats to expose the wire connector which can then be disconnected by moving the Center Console slightly to the rear. After that bring the console toward the back to reach the subwoofer speaker which requires removing the 4 retaining bolts (W705202S). First detach the wire connector before extracting the speaker from the subwoofer unit. The speaker should be placed into the subwoofer assembly before connecting the wire connector for installation. Ergo insert the 4 retaining screws (W705202S) into their screw bosses while maintaining thread alignment to stop thread formation and then tighten them to 6 n.m (53 lb in). Forward movement of the console allows the wire connector connection followed by console installation to the i/p while finishing with reinstallation of both front seats.

Begin by removing the 2 front seats.

Slightly move the center console rearward to disconnect the wire connector.

Take out the screws that secure the speaker to the mounting bracket and disconnect the electrical connector from the speaker.

Snap the speaker into place.

Remove the speaker from the mounting bracket and, if necessary, take out the bolts that hold the speaker mounting bracket to the door before removing the bracket itself.

Snap the speaker into place ensuring it is fully seated.

Remove the trim panel.

Secure the speaker with the screws, tightening them to 2 N.m (53 lb in).

Connect the electrical connectors as needed, install the speaker, and then reinstall the garnish molding.

Attach the speaker to the mounting bracket, reconnect the electrical connector, and secure the speaker with the screws, tightening them to 2 N.m (53 lb in).

Connect the electrical connector.

Take out the screws that secure the speaker to the mounting bracket and disconnect the electrical connector from the speaker.

Take out the speaker and disconnect the electrical connectors as necessary.

Press the speaker out of the molding.

Reconnect the electrical connector.

Connect the electrical connector.

Begin by removing the trim panel.

Connect the electrical connector.

Connect the electrical connector.
