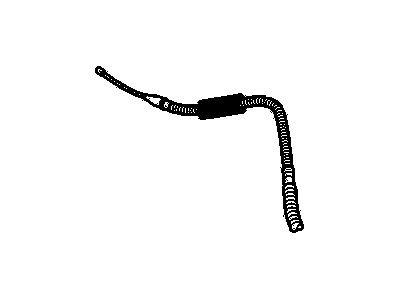

OEM 2008 Cadillac SRX Parking Brake Cable

2008 Cadillac SRX Parking Brake Cable Parts Questions & Experts Answers

• Q: How to Replace a Parking Brake Cable on 2008 Cadillac SRX?

  A: Prior to replacing the parking brake intermediate cable start by checking that the park brake activating system is fully disengaged. Raise and support the vehicle. Remove the intermediate park brake cable from the park brake connector by pulling downwards near the connector. The Parking Brake Cable release tool (J 37043) aids in depressing the locking retainer of intermediate park brake cable housing before the cable can be separated from the Floor Pan bracket. The vehicle owner should start by removing the park brake cable guide nut from the mounting stud and proceeding with taking out the park brake cable guide bolt from the Floor Pan followed by the park cable guides. Thanks to kept the locking retainer depressed users remove the intermediate cable from both the rear equalizer and right rear park brake cable connector followed by separating the intermediate cable housing from the rear cable housing retaining bracket. Take out the intermediate cable from the vehicle. Place and fix the intermediate park brake cable inside the park brake cable retaining bracket until it is completely seated. After connecting the right rear Parking Brake Cable connector to the intermediate park brake cable the intermediate cable must be installed onto the equalizer. First install the park cable guides followed by the park brake cable guide bolt which gets secured to the Floor Pan at 10 n.m (89 lb in) torque but before that install the park brake cable guide nut to the mounting stud and torque it at 10 n.m (89 lb in). Connect the intermediate park brake cable housing with the Floor Pan bracket while ensuring complete seating of the housing retainer. Seam the intermediate park brake cable into the cable retaining bracket before setting the bracket and attach its front end to the park brake cable connector . Two to three cycles of lower vehicle followed by pedal movement will confirm correct seating of the park brake cable retainers.
