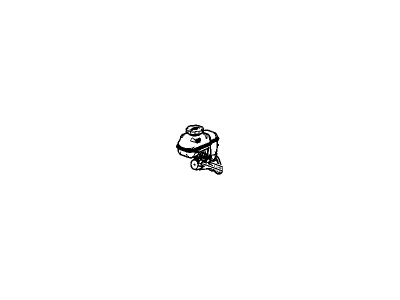

OEM 2009 Cadillac CTS Brake Master Cylinder

2009 Cadillac CTS Parts Questions & Experts Answers

• Q: How to replace the brake master cylinder on 2009 Cadillac CTS?

  A: Before you begin replacing the Brake Master Cylinder verify that the engine is switched off and exhaust the power vacuum Brake Booster vacuum reserve by performing repetitive Brake Pedal operation until pedal firmness develops. Disengage the brake fluid indicator switch electrical connection and unscrew the push nut that connects the master cylinder to its mounting stud. Next remove the pressure relief bracket from the air inlet panel support bracket. When you expose the air inlet panel support bracket you need to pull it outward before rotating it off to the side. You must disconnect the master cylinder primary brake pipe fitting then apply a cap on it and use a plug to block the master cylinder outlet port to stop brake fluid loss and contamination. Reposition the same procedure for the master cylinder secondary brake pipe fitting. Unscrew the nuts on the master cylinder while removing it out of the power vacuum Brake Booster. Check if the master cylinder to power vacuum Brake Booster seal shows any signs of damage before replacing it if needed. Using a groove on the master cylinder body install the master cylinder to power vacuum Brake Booster seal but protect the shape of the body during installation. When installing a new master cylinder it requires bench bleeding before use. Assembly of the master cylinder to the power vacuum Brake Booster should be followed by installing and torquing the master cylinder nuts to 25 nm (18 lb ft). Follow up with tightening the master cylinder secondary brake pipe fitting to 36 nm (27 lb ft) and then torque the primary brake pipe fitting to the same value. Follow these steps to reconnect the brake fluid level indicator switch electrical connector: install the support bracket to the master cylinder mounting stud before applying the push nut. Bleeding the hydraulic brake system should be performed as the final step.
