How to Service and Repair an Axle Shaft on Buick Rainier?

Starting the rear Axle Shaft replacement process requires raising the vehicle along with removing the tire wheel assembly and brake caliper. Begin by removing the pinion shaft locking bolt after stripping off the rear axle housing cover with its gasket. Axle replacement requires pinion shaft removal for systems without locking differentials. Before turning the case, those with locking differentials should partially remove the shaft and position the pinion until it touches housing walls. A screwdriver serves to rotate the c-lock while you align its position with the thrust block. Once aligned push the flange of the Axle Shaft toward the Differential and remove the c-lock from the button end of the Axle Shaft. Maintain the Axle Shaft in its correct position to prevent gear misalignment. Slide the new Axle Shaft into the rear axle housing while making sure it fits correctly against the Differential side gear by its splines. When working with axles lacking a locking Differential, install the c-lock component on the button side of the shaft. Rear Differential lock-equipped vehicles require partial pinion shaft withdrawal while users place the c-lock directly onto the Axle Shaft with both ends facing the thrust block. Apply downward pressure on the shaft flange until the c-lock locates within the Differential gear then position the pinion shaft hole next to the Differential case bolt opening. Use the new pinion shaft locking bolt then apply 36 nm (27 ft. Lbs.) of torque. Reinstall the rear axle housing cover and gasket followed by brake caliper and tire and wheel assembly to complete the repair. Finish the repair by filling the rear axle with correct axle lubricant before lowering the vehicle.

OEM Buick Rainier Axle Shaft

Car Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Axle Shafts found

View related parts
Buick Rainier Intermediate Shaft, Front Part Number: 12479125
$376.93 MSRP: $593.06
You Save: $216.13 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft, Front Axle; Axle Shaft; Axle Shafts; Intermed Shaft
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Buick Rainier | CXL, CXL Plus | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Shaft, Rear Passenger Side Part Number: 19133413
Product Specifications
- Other Name: Shaft, Rear Axle (Right-Hand); Axle Shafts; Axle; Shaft, Rear Axle Drive
- Position: Rear Passenger Side
- Replaces: 12479161
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Buick Rainier | CXL, CXL Plus | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts

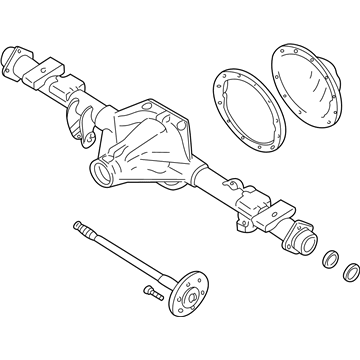

Buick Rainier Axle Assembly, Rear Part Number: 25926158
Product Specifications
- Other Name: Axle Assembly-Rear (4.10 Ratio); Axle Shaft
- Position: Rear
- Replaces: 15842180
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006 Buick Rainier | CXL | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Assembly, Rear Part Number: 15842174
Product Specifications
- Other Name: Axle Assembly-Rear (3.73 Ratio); Axle Shaft
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006 Buick Rainier | CXL | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Assembly, Rear Part Number: 15134677
Product Specifications
- Other Name: Axle, Rear Axle; Axle Shaft
- Position: Rear
- Replaces: 15065723, 15107453, 15171759
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Buick Rainier | CXL, CXL Plus | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Shaft, Rear Driver Side Part Number: 19133412
Product Specifications
- Other Name: Shaft, Rear Axle Drive; Axle Shafts; Axle
- Position: Rear Driver Side
- Replaces: 12479160
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Buick Rainier | CXL, CXL Plus | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Shaft, Rear Passenger Side Part Number: 19133410
Product Specifications
- Other Name: Shaft, Rear Axle Drive; Axle Shafts
- Position: Rear Passenger Side
- Replaces: 12479017
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Buick Rainier | CXL, CXL Plus | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Shaft, Rear Driver Side Part Number: 19133409
Product Specifications
- Other Name: Shaft, Rear Axle Drive; Axle Shafts
- Position: Rear Driver Side
- Replaces: 12479016
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Buick Rainier | CXL, CXL Plus | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Assembly, Rear Part Number: 15939020
Product Specifications
- Other Name: Axle Assembly-Rear (4.10 Ratio); Axle Shaft; Axle, Rear Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Buick Rainier | CXL | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Assembly, Rear Part Number: 15939019
Product Specifications
- Other Name: Axle Assembly-Rear (3.73 Ratio); Axle Shaft; Axle, Rear Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Buick Rainier | CXL | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Assembly, Rear Part Number: 15939016
Product Specifications
- Other Name: Axle, Rear Axle; Axle Shaft
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Buick Rainier | CXL | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Assembly, Rear Part Number: 15844598
Product Specifications
- Other Name: Axle Assembly-Rear (4.10 Ratio); Axle Shaft; Axle, Rear Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Buick Rainier | CXL | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Assembly, Rear Part Number: 15844590
Product Specifications
- Other Name: Axle Assembly-Rear (3.73 Ratio); Axle Shaft; Axle, Rear Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Buick Rainier | CXL | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Assembly, Rear Part Number: 15844584
Product Specifications
- Other Name: Axle, Rear Axle; Axle Shaft
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Buick Rainier | CXL | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Buick Rainier Axle Assembly, Front Part Number: 26079789
$390.96 MSRP: $615.16
You Save: $224.20 (37%)
Product Specifications
- Other Name: Shaft Kit, Front Wheel Drive; CV Axle Assembly; Axle Shaft; CV Axle; Shaft Kit, Front Axle
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Buick Rainier | CXL, CXL Plus | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS

Buick Rainier Axle Shaft

Want to cut long-term maintenance and repair costs? Choose OEM Axle Shaft. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Buick Rainier parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Buick Rainier Axle Shaft includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Buick Rainier Axle Shaft is one of the most critical parts that go a long way in improving the performance and durability of one of the mid-size luxury SUVs manufactured between 2004-2007 branded, Rainier by Buick. This Axle Shaft is intended for the effective transmission of power from the differential to the drive wheels; this enables independent rotation, and enhances tractive effort and control of the vehicle. The Buick Rainier Axle Shaft is available in different Rainier models so that every car is given a strong and durably constructed axle shaft with fine engineering. Constructed with high-grade steel, Axle Shaft bear the vehicle load, transfer the driving torque from the engine and ensure correct positioning of the wheels that are very important for the safe and efficient performance of the vehicle. But, the Rainier Axle Shaft is not just another part serving the purpose of functionality, it holds an incredibly crucial part in improving the performance of the SUV, which leads to noiselessness and a smooth ride that the Buick's arriving consumers demand. Also, the Axle Shaft's structural construction is highly optimized for durability so that the chances of involving in problems such as noise and vibration that is a threat to safety will always be low. More specifically, the Buick Rainier Axle Shaft in the automotive market is quite unique noteworthy due to its excellent endurance and reliability alluding that buyers should look no further than this car. Incorporating features that allow it to be fitted on 4.2L Vortec I6 and the robust 5.3L Small-block V8 engines the Buick Rainier Axle Shaft is a component that contributes to the Buick vehicle's renowned performance and safety figures.

Buick Rainier Axle Shaft Parts Questions & Experts Answers

Axle Shaft, Rear Passenger Side
19133413
Q: How to Service and Repair an Axle Shaft on Buick Rainier?
A:
Starting the rear Axle Shaft replacement process requires raising the vehicle along with removing the tire wheel assembly and brake caliper. Begin by removing the pinion shaft locking bolt after stripping off the rear axle housing cover with its gasket. Axle replacement requires pinion shaft removal for systems without locking Differentials. Before turning the case, those with locking differentials should partially remove the shaft and position the pinion until it touches housing walls. A screwdriver serves to rotate the c-lock while you align its position with the thrust block. Once aligned push the flange of the Axle Shaft toward the Differential and remove the c-lock from the button end of the Axle Shaft. Maintain the Axle Shaft in its correct position to prevent gear misalignment. Slide the new Axle Shaft into the rear axle housing while making sure it fits correctly against the Differential side gear by its splines. When working with axles lacking a locking Differential, install the c-lock component on the button side of the shaft. Rear Differential lock-equipped vehicles require partial pinion shaft withdrawal while users place the c-lock directly onto the Axle Shaft with both ends facing the thrust block. Apply downward pressure on the shaft flange until the c-lock locates within the Differential gear then position the pinion shaft hole next to the Differential case bolt opening. Use the new pinion shaft locking bolt then apply 36 nm (27 ft. Lbs.) of torque. Reinstall the rear axle housing cover and gasket followed by brake caliper and tire and wheel assembly to complete the repair. Finish the repair by filling the rear axle with correct axle lubricant before lowering the vehicle.
