How to replace the vacuum brake booster (RHD) on Cadillac CTS?

To service the Brake Booster start by obtaining the Brake Booster holder tool j 22805-b. Remove the left closeout/insulator first before extracting the vacuum Brake Booster Pushrod retaining clip and Pushrod with their anchors attached to the Brake Pedal unit without detaching brake pipes from the master cylinder. Put the master cylinder to one side after taking it off from the vacuum Brake Booster. Reach the booster locking tab under the air inlet grille panel and disconnect the coolant surge tank vacuum line from its tank. Secure the coolant surge tank outside the work area after removing its bolts while keeping its inlet pipe connected. Set up the Brake Booster holder with part number j 22805-b on the vacuum Brake Booster and fix it through the master cylinder retaining nuts. Use a flat-bladed tool to push down the locking tab as you turn the booster counterclockwise with a ratchet on the Brake Booster holder (J 22805-B). Gently take the vacuum Brake Booster off its cowl mounting position while providing it support. Insert the foam filter from the front of the booster to reach the retaining clip. Lift the clip's long leg to extract the Pushrod. Set up installation only when all internal parts are present and locking plates show no damage. Feed the Pushrod inside the vacuum Brake Booster while placing its long retainer clip leg into the machine-made groove. Insert the booster in a counterclockwise direction towards positioning and tighten it clockwise while using a ratchet on the Brake Booster holder until the locking tab connects. Take off Brake Booster holder j 22805-b then affix the new vacuum tube and check valve system while placing back the coolant surge tank. Conclude by placing the air inlet grille panel and adding all remaining parts including the master cylinder, Pushrod, retaining clip, and left insulator panel.

OEM Cadillac CTS Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Brake Boosters found

View related parts

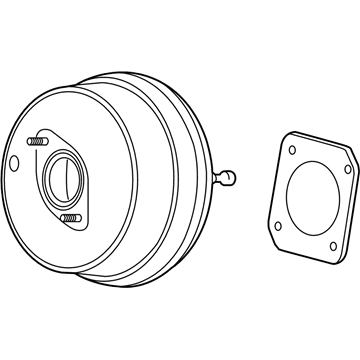

Cadillac CTS Brake Booster
Part Number: 20840619
$109.64 MSRP: $192.37
You Save: $82.73 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Replaces: 20840617, 20800051, 25847719, 20800049
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009 Cadillac CTS | Base | 6 Cyl 3.6 L GAS
View related parts

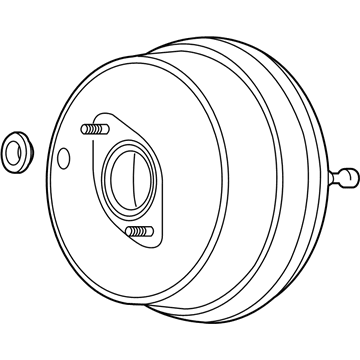

Cadillac CTS Brake Booster
Part Number: 84614711
$93.13 MSRP: $180.76
You Save: $87.63 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster Assembly
- Replaced by: 85520935
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2019 Cadillac CTS | Base, Luxury, Performance, Premium, Premium Luxury, V, Vsport, Vsport Premium, Vsport Premium Luxury | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac CTS Brake Booster
Part Number: 84614710
$99.58 MSRP: $187.00
You Save: $87.42 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster Assembly
- Replaced by: 85520931
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2019 Cadillac CTS | Base, Luxury, Performance, Premium, Premium Luxury, V, Vsport, Vsport Premium, Vsport Premium Luxury | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac CTS Brake Booster
Part Number: 84614709
$102.80 MSRP: $201.26
You Save: $98.46 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster Assembly
- Replaces: 84456300, 23415092
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2019 Cadillac CTS | V | 8 Cyl 6.2 L GAS
View related parts
Cadillac CTS Brake Booster
Part Number: 23431517
$99.58 MSRP: $187.00
You Save: $87.42 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster Assembly
- Replaced by: 85520931
- Replaces: 22909770
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2015 Cadillac CTS | Base, Luxury, Performance, Premium, Vsport, Vsport Premium | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac CTS Brake Booster
Part Number: 88967236
Product Specifications
- Other Name: Booster, Power Brake; Booster Assembly; Booster, Hydraulic Power Brake Booster
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 Cadillac CTS | Base, Luxury, Luxury Sport, V | 6 Cyl 2.8 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
View related parts
Cadillac CTS Brake Booster
Part Number: 20840618
$132.12 MSRP: $236.99
You Save: $104.87 (45%)
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2014 Cadillac CTS | Base, Luxury, Performance, Premium, V | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac CTS Brake Booster
Part Number: 9054184
Product Specifications
- Other Name: Booster, Power Brake; Booster Assembly; Booster, Hydraulic Power Brake Booster
- Replaces: 15267511
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008 Cadillac CTS | Base | 6 Cyl 3.6 L GAS
View related parts
Cadillac CTS Brake Booster
Part Number: 20840616
$171.79 MSRP: $308.14
You Save: $136.35 (45%)
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster Assembly
- Replaces: 20800047, 25847716
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2015 Cadillac CTS | Base, V, Vsport, Vsport Premium | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS

Cadillac CTS Brake Booster

Our website offers an extensive catalog of genuine Cadillac CTS Brake Booster at unbeatable prices. Every OEM Cadillac CTS Brake Booster comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Cadillac CTS Brake Booster Parts Questions & Experts Answers

Brake Booster
88967236
Q: How to replace the vacuum brake booster (RHD) on Cadillac CTS?
A: To service the Brake Booster start by obtaining the Brake Booster holder tool j 22805-b. Remove the left closeout/insulator first before extracting the vacuum Brake Booster Pushrod retaining clip and Pushrod with their anchors attached to the Brake Pedal unit without detaching brake pipes from the master cylinder. Put the master cylinder to one side after taking it off from the vacuum Brake Booster. Reach the booster locking tab under the air inlet grille panel and disconnect the coolant surge tank vacuum line from its tank. Secure the coolant surge tank outside the work area after removing its bolts while keeping its inlet pipe connected. Set up the Brake Booster holder with part number j 22805-b on the vacuum Brake Booster and fix it through the master cylinder retaining nuts. Use a flat-bladed tool to push down the locking tab as you turn the booster counterclockwise with a ratchet on the Brake Booster holder (J 22805-B). Gently take the vacuum Brake Booster off its cowl mounting position while providing it support. Insert the foam filter from the front of the booster to reach the retaining clip. Lift the clip's long leg to extract the Pushrod. Set up installation only when all internal parts are present and locking plates show no damage. Feed the Pushrod inside the vacuum Brake Booster while placing its long retainer clip leg into the machine-made groove. Insert the booster in a counterclockwise direction towards positioning and tighten it clockwise while using a ratchet on the Brake Booster holder until the locking tab connects. Take off Brake Booster holder j 22805-b then affix the new vacuum tube and check valve system while placing back the coolant surge tank. Conclude by placing the air inlet grille panel and adding all remaining parts including the master cylinder, Pushrod, retaining clip, and left insulator panel.
