How to Replace an Underhood Fuse Box on Cadillac DeVille?

The first step to replace the underhood Fuse Box requires users to disconnect the negative Battery Cable from the battery followed by covering the underhood Fuse Box. The positive battery cables nut requires disconnection from the underhood Fuse Box followed by detachment of four locking tabs until the assembly clears the base. First drive off the three screws that retain the underhood Fuse Box connectors then remove the engine harness connector from this box to pull out the Fuse Box from the vehicle. First connect the engine harness electrical connector to the underhood Fuse Box along with a proper base placement while tightening the screw retaining connectors to 7 n.m (62 lb in). The Fuse Box installation process requires connecting the positive battery cables nut to the underhood Fuse Box before tightening it to 12 n.m (106 lb in). Then, fit the cover onto the underhood Fuse Box followed by reconnection of the negative Battery Cable to the battery.

OEM Cadillac DeVille Fuse Box

Fuse Holder Box

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Fuse Boxes found

View related parts

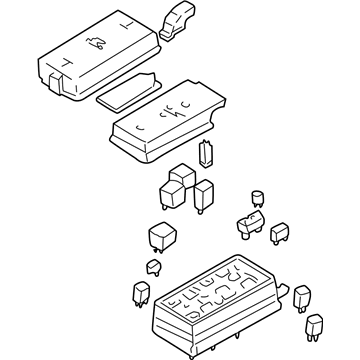

Cadillac DeVille Fuse & Relay Box
Part Number: 25720949
Product Specifications
- Other Name: Block; Junction Boxes; Relay Boxes; Block, Main Wiring Junction And Fuse Block
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2003 Cadillac DeVille | Base, DHS, DTS | 8 Cyl 4.6 L GAS
View related parts
Cadillac DeVille Fuse & Relay Box
Part Number: 25771362
Product Specifications
- Other Name: Block; Junction Boxes; Relay Boxes; Block, Main Wiring Junction And Fuse Block
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004 Cadillac DeVille | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
View related parts
Cadillac DeVille Fuse & Relay Box
Part Number: 25687784
Product Specifications
- Other Name: Block; Junction Boxes; Relay Boxes; Block, Main Wiring Junction And Fuse Block
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Cadillac DeVille | Base, DHS, DTS | 8 Cyl 4.6 L GAS
View related parts

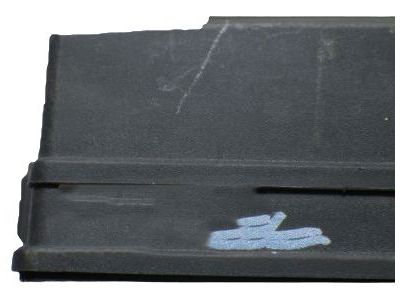

Cadillac DeVille Fuse Holder
Part Number: 12193968
Product Specifications
- Other Name: Holder; Fuse Box; Holder, Main Wiring Junction And Fuse Block
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Cadillac DeVille | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS

Cadillac DeVille Fuse Box

Our website offers an extensive catalog of genuine Cadillac DeVille Fuse Box at unbeatable prices. Every OEM Cadillac DeVille Fuse Box comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Cadillac DeVille Fuse Box Parts Questions & Experts Answers

Fuse Holder
12193968
Q: How to Replace an Underhood Fuse Box on Cadillac DeVille?
A: The first step to replace the underhood Fuse Box requires users to disconnect the negative Battery Cable from the battery followed by covering the underhood Fuse Box. The positive battery cables nut requires disconnection from the underhood Fuse Box followed by detachment of four locking tabs until the assembly clears the base. First drive off the three screws that retain the underhood Fuse Box connectors then remove the engine harness connector from this box to pull out the Fuse Box from the vehicle. First connect the engine harness electrical connector to the underhood Fuse Box along with a proper base placement while tightening the screw retaining connectors to 7 n.m (62 lb in). The Fuse Box installation process requires connecting the positive battery cables nut to the underhood Fuse Box before tightening it to 12 n.m (106 lb in). Then, fit the cover onto the underhood Fuse Box followed by reconnection of the negative Battery Cable to the battery.
